Description

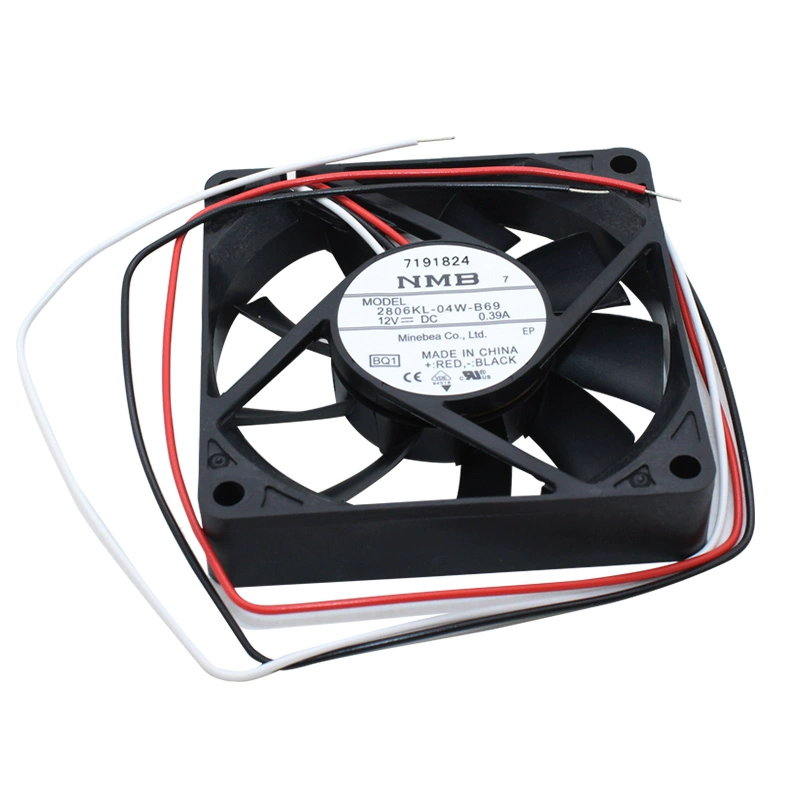

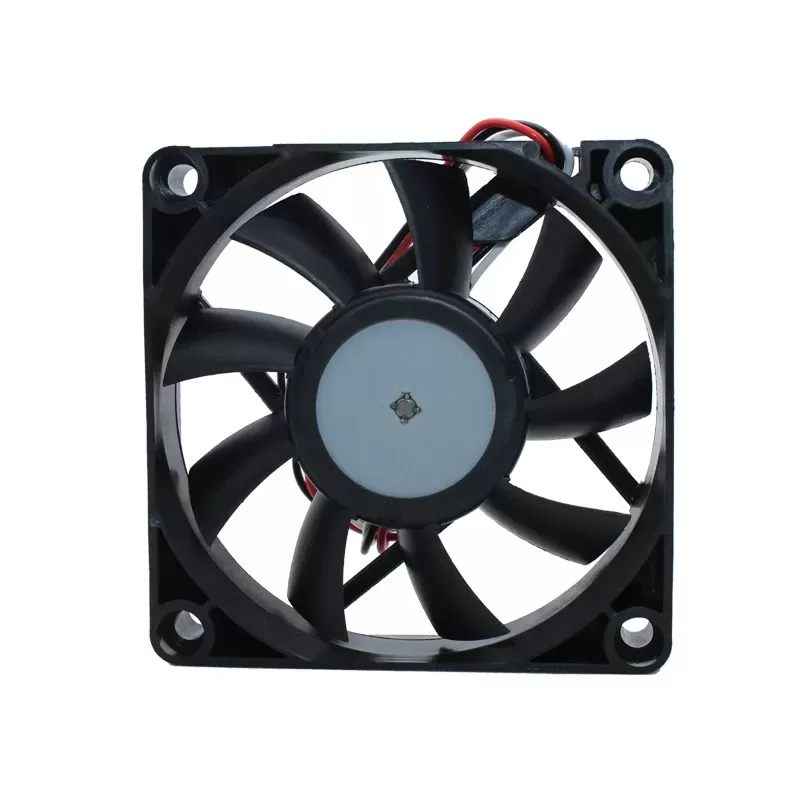

The NMB 2806KL-04W-B69-BQ1 is a compact high-speed 12V DC axial cooling fan. Measuring 70mm x 70mm x 15mm, this fan is designed for efficient heat dissipation in confined spaces, common in server equipment, industrial control panels, and other electronic assemblies requiring reliable airflow. It operates at a rated voltage of 12V DC and typically draws a current of 0.39A, resulting in a power consumption of 4.68W. This allows it to achieve a rotational speed of 4800 RPM, delivering an airflow of 41.0 CFM and a static pressure of 0.25 inch-H2O. Its noise level is 42.0 dBA. The fan features durable ball bearings for an extended operational lifespan of 60,000 hours at 25°C. It comes with 3-wire leads for power, ground, and a tachometer output for speed monitoring, along with auto-restart and polarity protection.
Model Number: 2806KL-04W-B69-BQ1
Manufacturer: NMB Technologies Corporation
Series: KL Series
Type: DC Axial Cooling Fan
Dimensions: 70mm x 70mm x 15mm
Rated Voltage: 12V DC
Operating Voltage Range: 7V to 13.2V DC
Rated Current: 0.39A
Rated Power: 4.68W
Speed: 4800 RPM
Airflow: 41.0 CFM (1.16 m³/min)
Static Pressure: 0.25 inch-H2O (62 Pa)
Noise Level: 42.0 dBA
Connector: 3-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours at 25°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection, Tachometer Output
Operating Temperature: -10°C to +70°C
Weight: 60g
Approvals/Certifications: UL, CSA, TUV, CE, RoHS Compliant
