Description

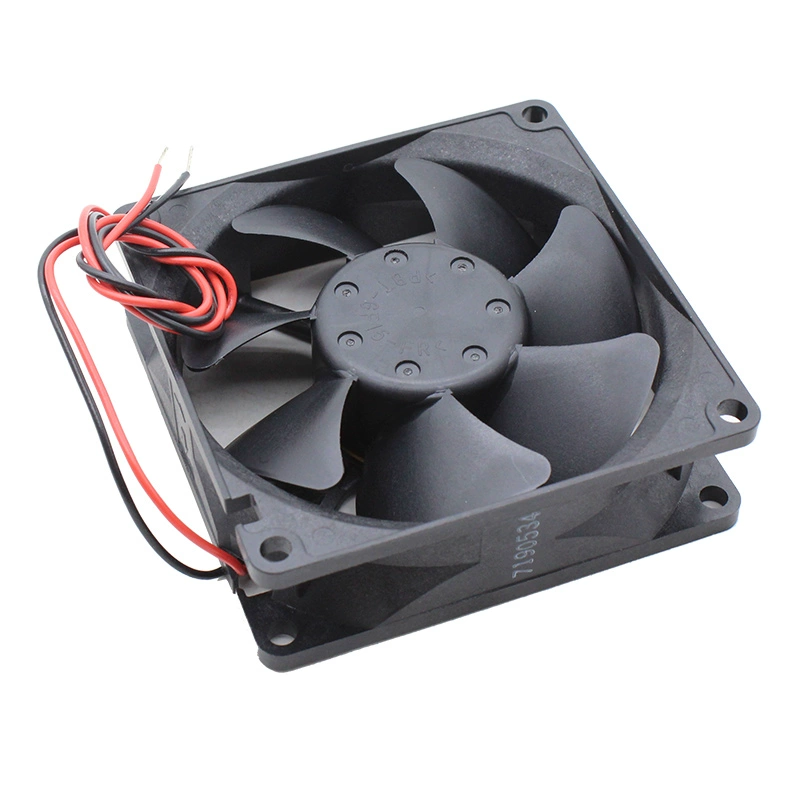

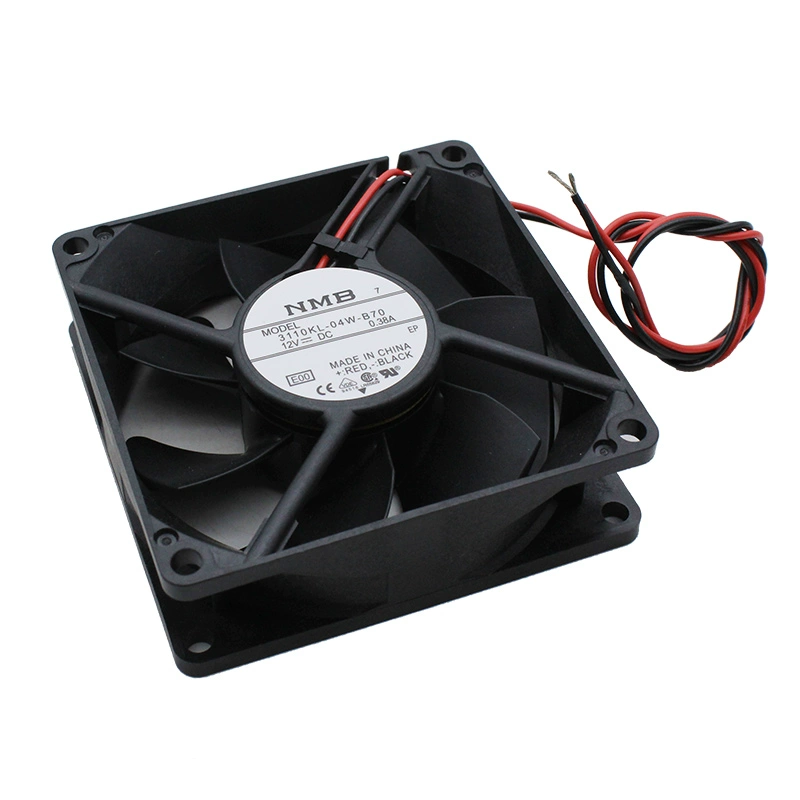

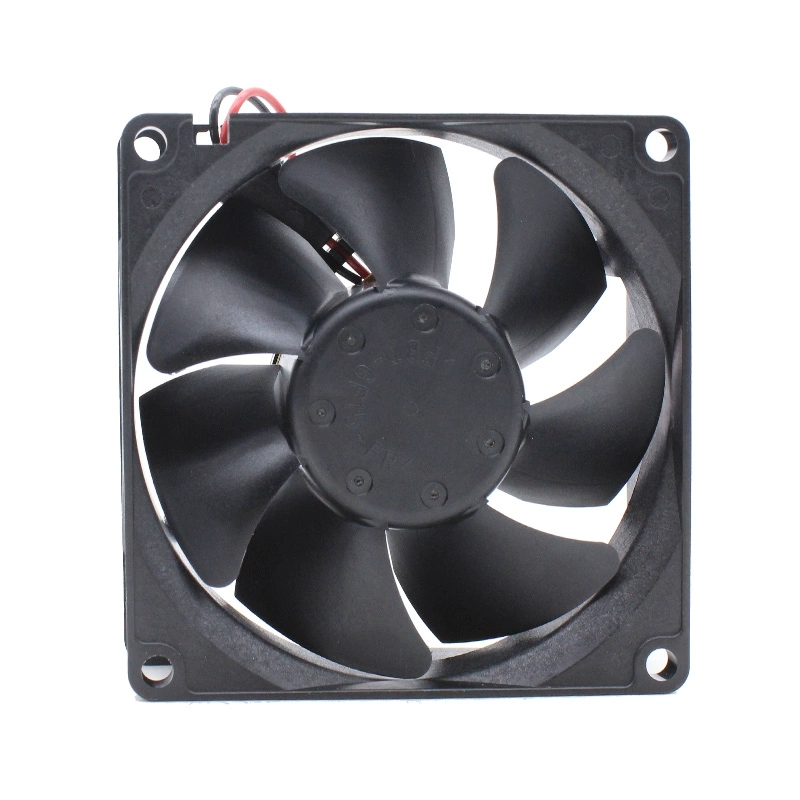

The NMB 3110KL-04W-B70-E00, now specified with a robust 0.38A current, is an enhanced 12V DC axial cooling fan from NMB Technologies, maintaining its 80x80x25mm form factor. This variant delivers increased power, consuming 4.56W. It operates at 4000 RPM, providing a substantial 45.9 CFM of airflow and a static pressure of 0.26 inch-H2O, making it highly effective for cooling components or enclosures with moderate airflow resistance. Equipped with durable ball bearings, it maintains a reliable life expectancy of 50,000 hours at 25°C. Its 2-wire configuration ensures straightforward power connection, making it a reliable choice for various demanding cooling applications, all while operating at a noise level of 40.0 dBA.
Model Number: 3110KL-04W-B70-E00
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Rated Voltage: 12V DC
Operating Voltage Range: 6.0V to 13.8V DC
Rated Current: 0.38A
Rated Power: 4.56W
Speed: 4000 RPM
Airflow: 45.9 CFM / 1.30 m³/min
Static Pressure: 0.26 inch-H2O / 64.4 Pa
Noise Level: 40.0 dBA
Dimensions: 80mm x 80mm x 25mm
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
