Description

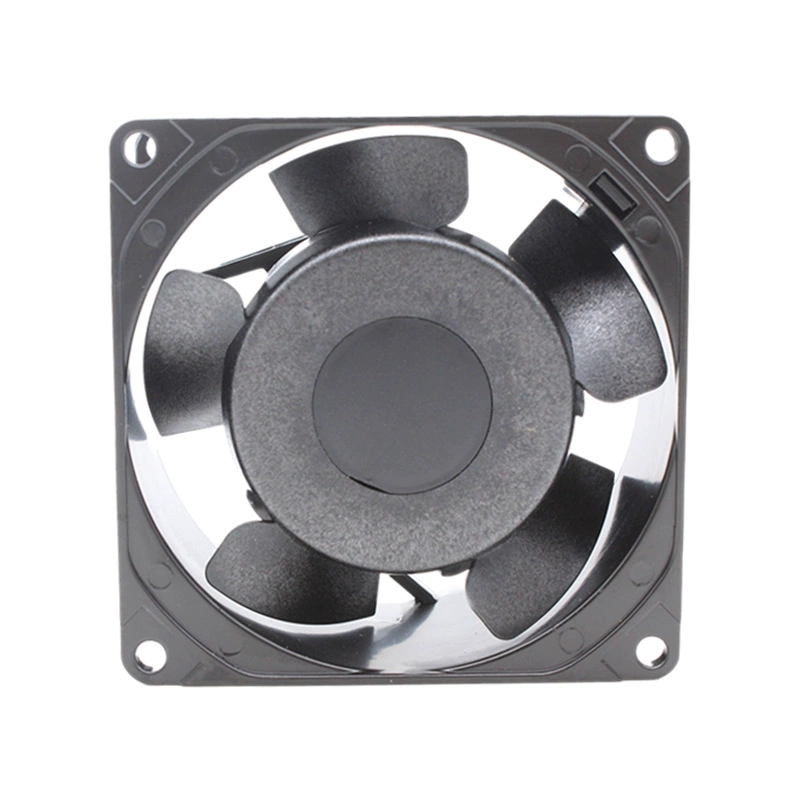

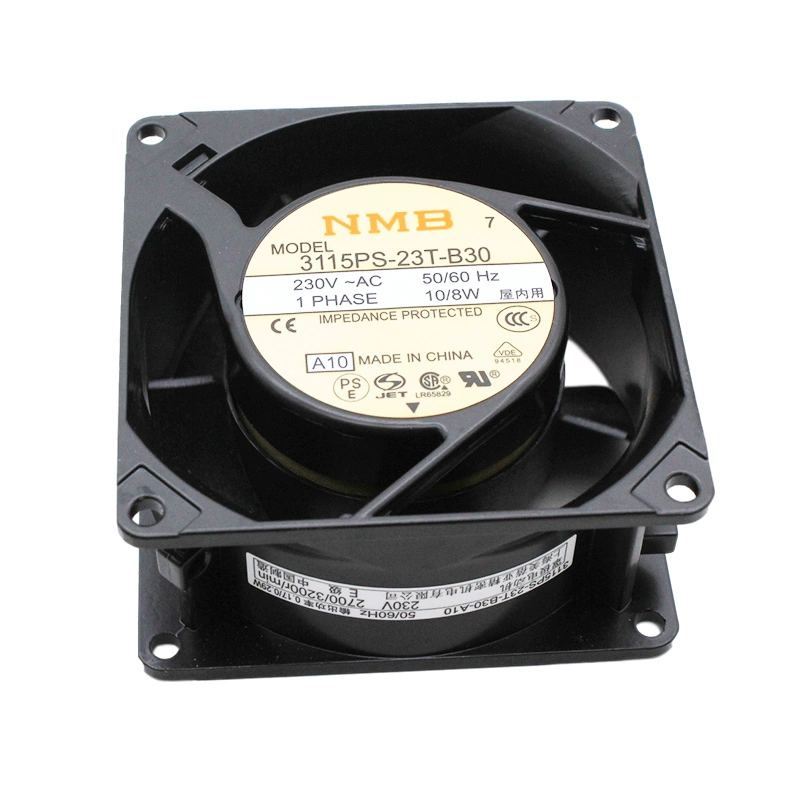

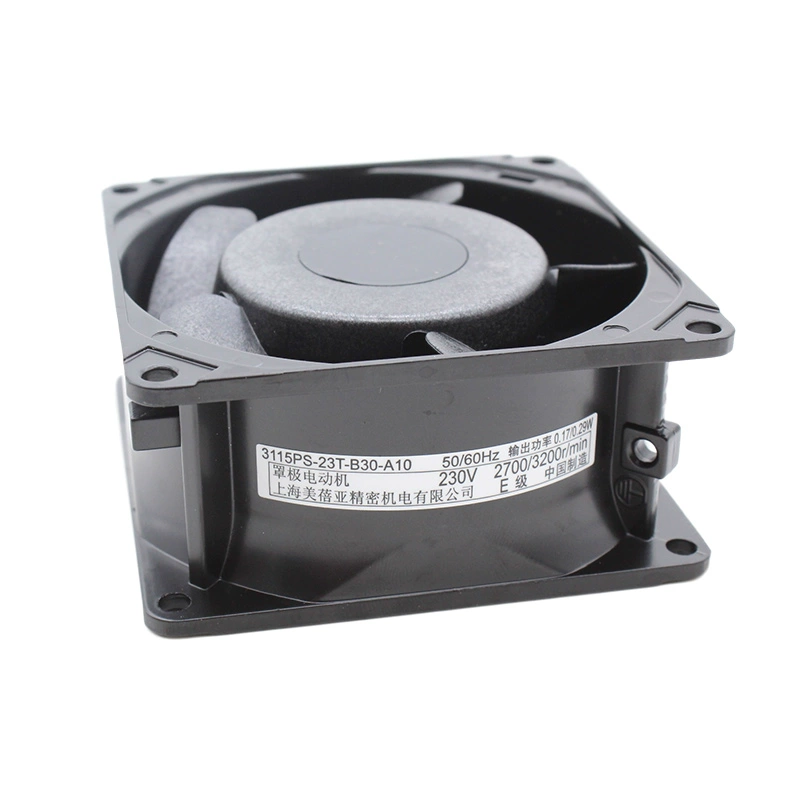

The NMB 3115PS-23T-B30-A10 is a reliable 230V AC axial cooling fan from NMB Technologies, featuring an 80x80x38mm form factor. This fan is designed for general-purpose cooling in AC-powered systems. It adapts to both 50Hz and 60Hz frequencies, offering different performance characteristics. At 60Hz, it operates at 3200 RPM, drawing 0.055A (8.0W) to deliver 32.0 CFM of airflow with a noise level of 38.0 dBA. For 50Hz operation, it runs at 2700 RPM, drawing 0.070A (10.0W) to provide 26.5 CFM at 33.0 dBA. Equipped with durable ball bearings, it boasts an impressive life expectancy of 100,000 hours at 25°C and features impedance protection, ensuring stable operation in various applications.
Model Number: 3115PS-23T-B30-A10
Manufacturer: NMB Technologies Corporation
Type: AC Axial Cooling Fan
Rated Voltage: 230V AC
Frequency: 50/60 Hz
Operating Voltage Range: AC 150V to 250V
Rated Current (at 60 Hz): 0.055A
Rated Current (at 50 Hz): 0.070A
Rated Power (at 60 Hz): 8.0W
Rated Power (at 50 Hz): 10.0W
Speed (at 60 Hz): 3200 RPM
Speed (at 50 Hz): 2700 RPM
Airflow (at 60 Hz): 32.0 CFM / 0.90 m³/min
Airflow (at 50 Hz): 26.5 CFM / 0.75 m³/min
Static Pressure (at 60 Hz): 0.20 inch-H2O / 49.0 Pa
Static Pressure (at 50 Hz): 0.14 inch-H2O / 34.3 Pa
Noise Level (at 60 Hz): 38.0 dBA
Noise Level (at 50 Hz): 33.0 dBA
Dimensions: 80mm x 80mm x 38mm
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C
Operating Temperature: -10°C to 70°C
Frame Material: Aluminum
Impeller Material: Plastic (Polycarbonate with glass fiber)
Features: Impedance Protected
