Description

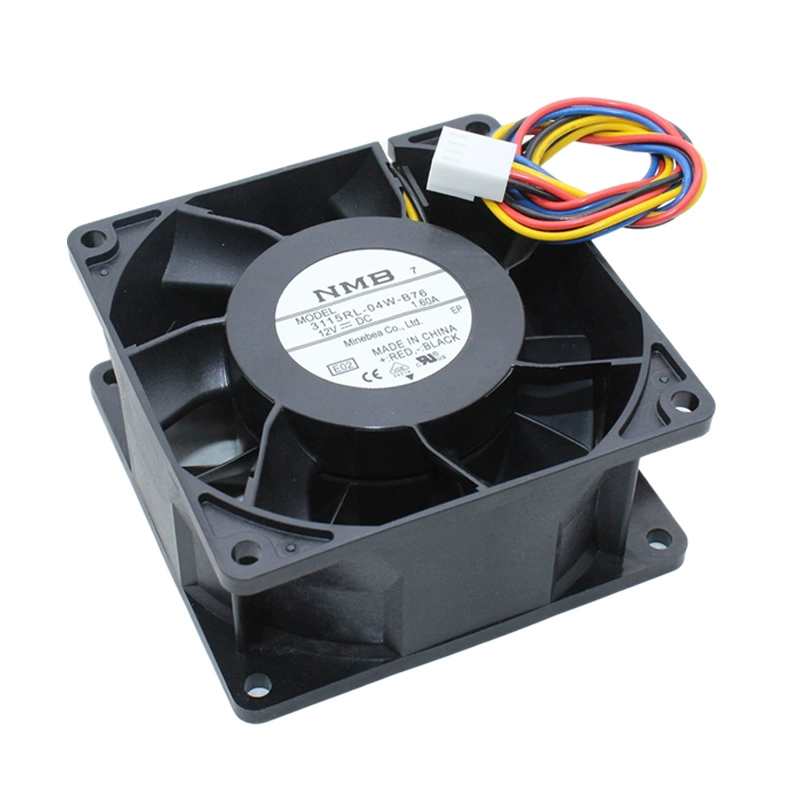

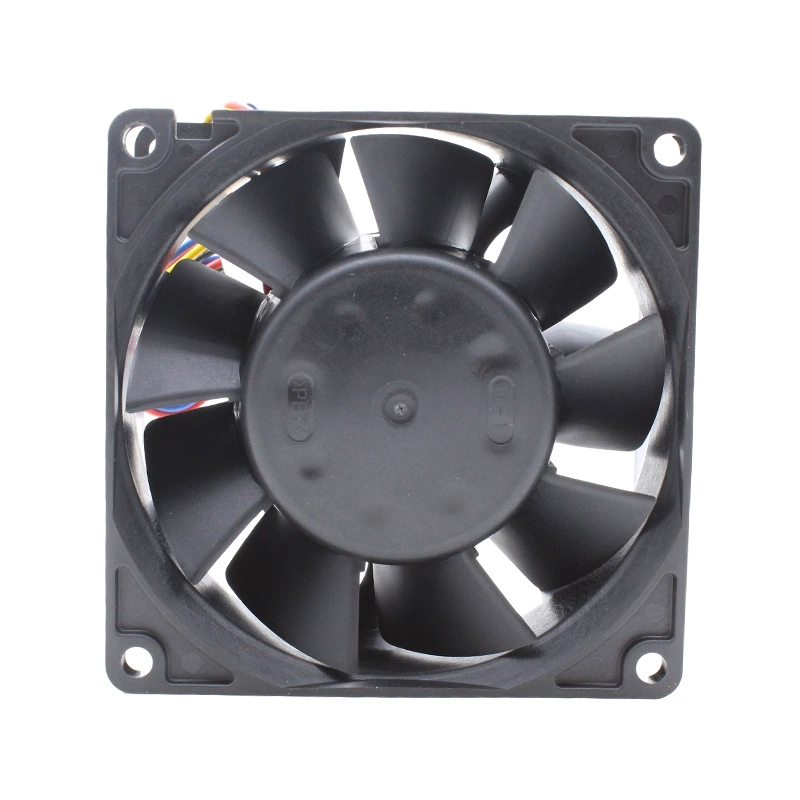

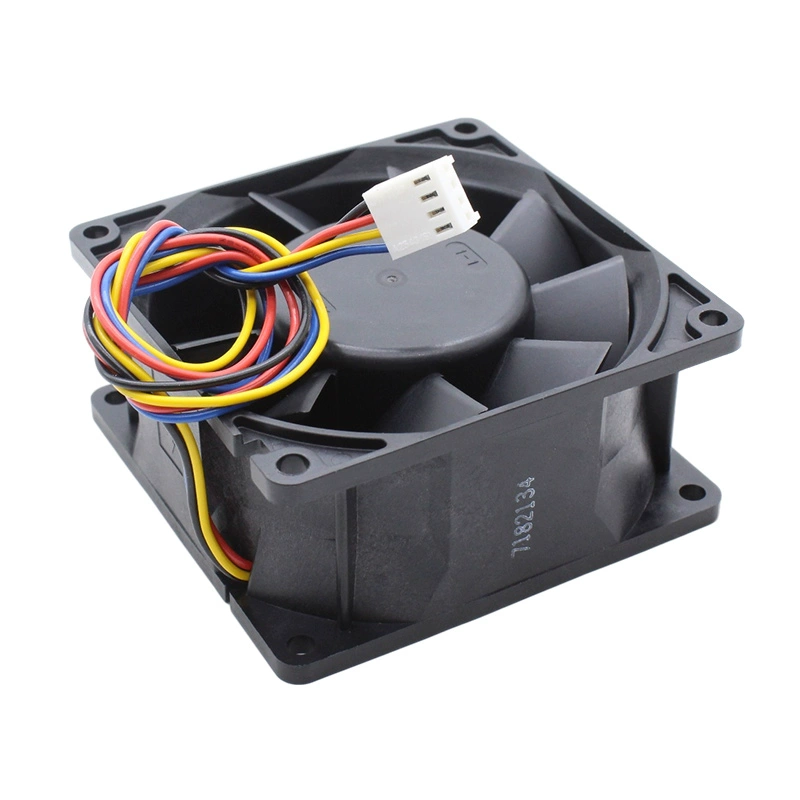

The NMB 3115RL-04W-B76-E02 is an extremely powerful 12V DC axial cooling fan measuring 80mm x 80mm x 38mm. Operating at a rated current of 1.60A (19.2W), this fan is engineered for critical thermal management where maximum airflow and static pressure are paramount. It achieves a very high rotational speed of 6500 RPM, delivering approximately 116 CFM of airflow with a high static pressure (exact value not always specified for -E02, but typically very high for this current, often exceeding 1.0 inch-H2O). Its noise output is 57.0 dBA or higher, reflecting its immense performance. The fan is equipped with ball bearings for a long operational life, typically 180,000 hours. Connectivity is via 4-wire leads, which include a pulse sensor for speed monitoring and a PWM input for precise speed control. Integrated features also include auto-restart and polarity protection, ensuring robust and controlled performance in demanding cooling scenarios.
Model Number: 3115RL-04W-B76-E02
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 80mm x 80mm x 38mm
Rated Voltage: 12V DC
Operating Voltage: 7.0V to 13.8V DC
Rated Current: 1.60A
Rated Power: 19.2W
Speed: 6500 RPM
Airflow: 116 CFM / 3.28 m³/min
Static Pressure: 1.0 inch-H2O (249 Pa) or higher (Characteristic of this high-power variant)
Noise Level: 57.0 dBA
Connector: 4-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 180,000 hours (at 25°C)
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: PWM Control, Pulse Sensor, Auto Restart, Polarity Protection
