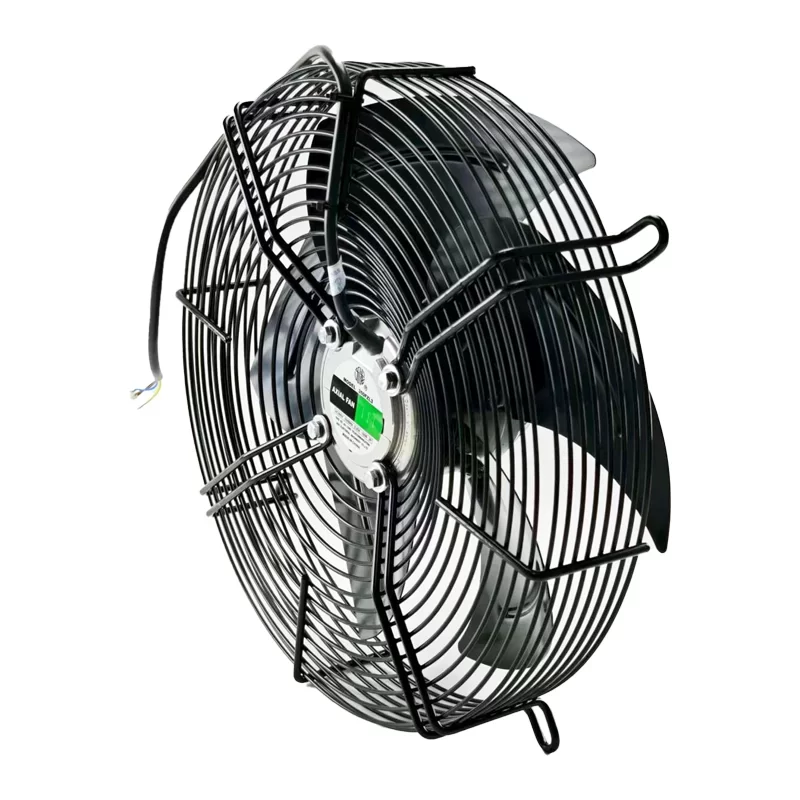

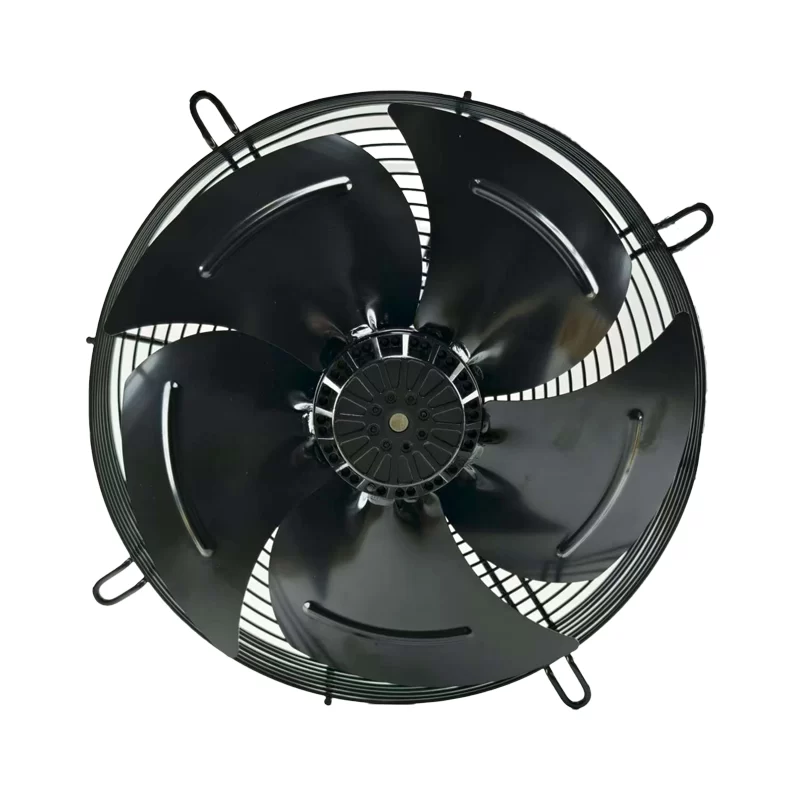

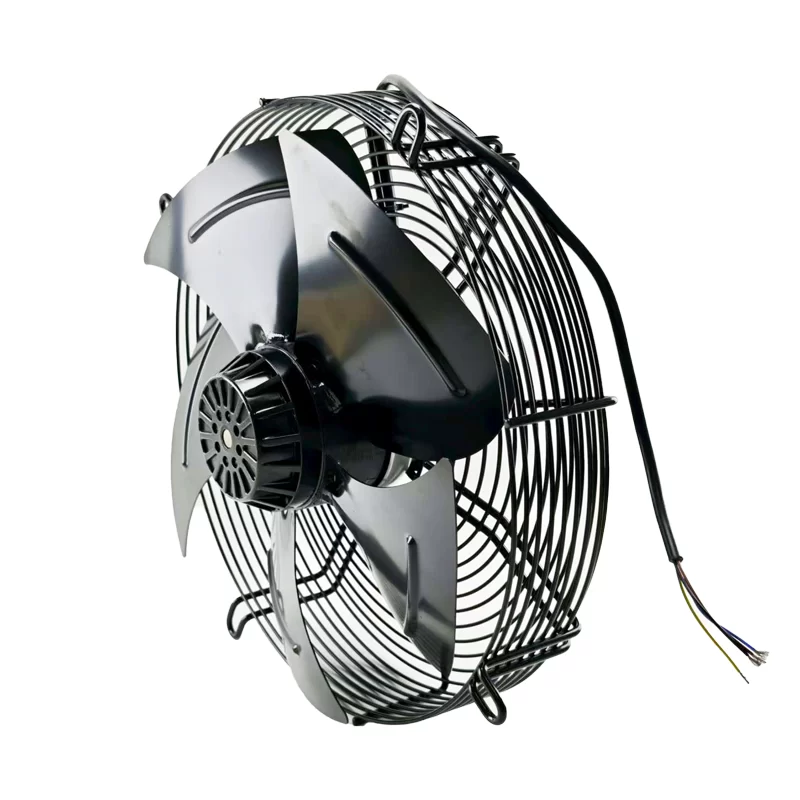

350FZL3 Jiulong 380V AC Axial Fan

Description

The Jiulong 350FZL3 is an AC axial fan with dimensions of 424 x 140 mm. It operates on 380V AC with a dual frequency of 50/60 Hz. At 50 Hz, it runs at 1360 RPM, delivering an airflow of 1695 CFM with a noise level of 62 dBA, consuming 150 W. At 60 Hz, its speed increases to 1500 RPM, providing an airflow of 1836 CFM with a noise level of 65 dBA.

350FZL3 Fan Parameters
Manufacturer: Jiulong
Model: 350FZL3
Fan Type: AC Axial Fan
Dimensions: 424 x 140 mm
Rated Voltage: 380V AC
Frequency: 50/60 Hz
Current Rating: 0.35 A
Power Consumption: 150 W
Airflow: 1695 / 1836 CFM
Speed: 1360 / 1500 RPM
Noise Level: 62 / 65 dBA

Application
The 350FZL3 is an inner rotor axial cooling fan suitable for industrial applications that require high airflow and pressure, such as in large ventilation systems, air conditioning units, and heavy-duty machinery.
