Description

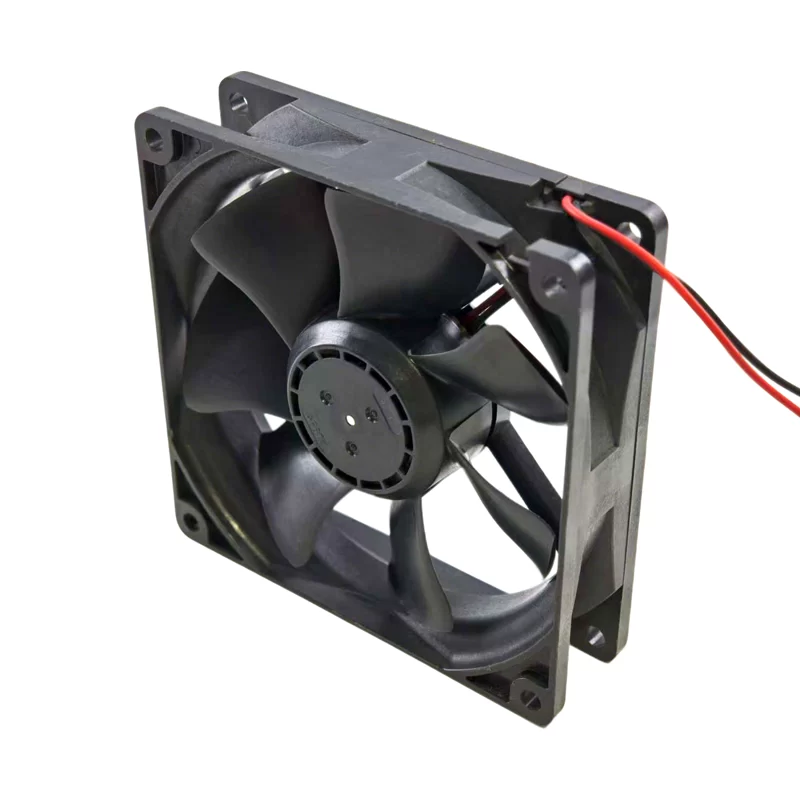

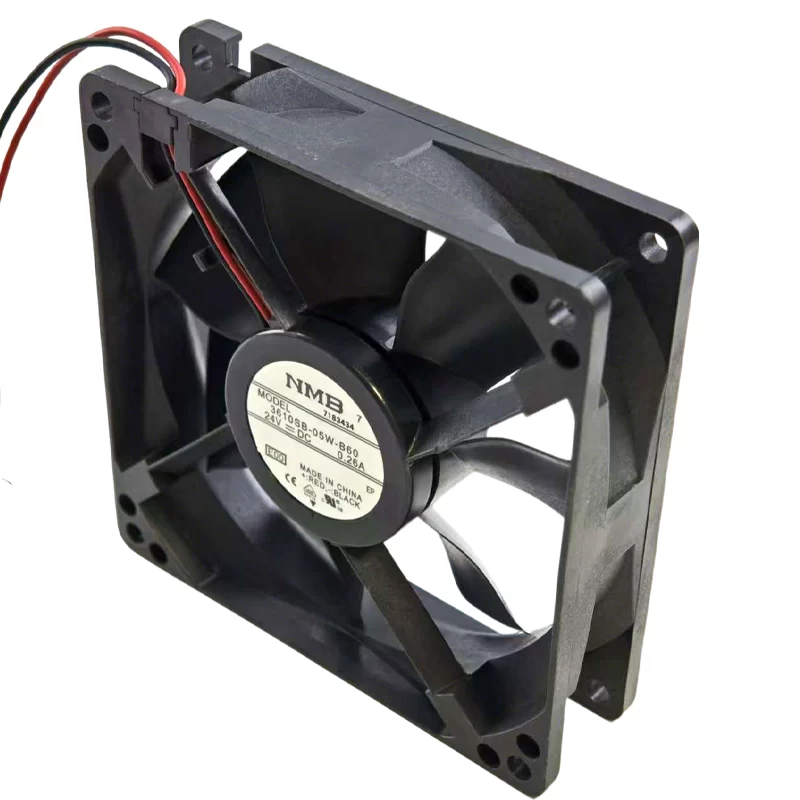

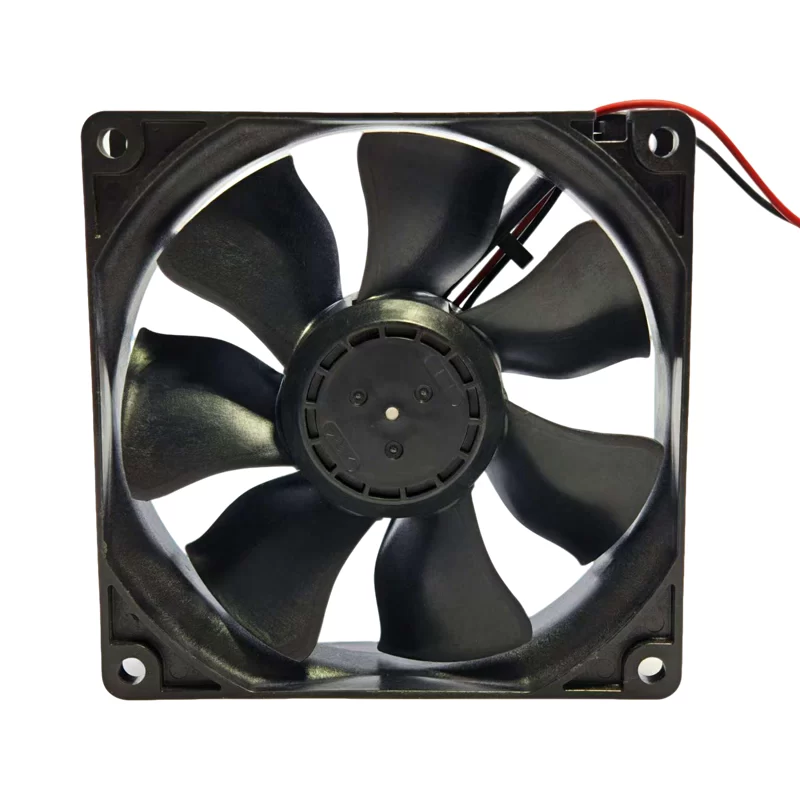

The NMB 3610SB-05W-B60-E00 is a reliable DC axial fan measuring 92 x 92 x 25 mm. It operates on 24V DC, drawing 0.26 A of current and consuming 6.24 W of power. The fan provides an airflow of 60 CFM (102.0 m³/h) and generates a static pressure of 0.28 inch H₂O (70 Pa). It runs at a speed of 3800 RPM with a noise level of 39.0 dB(A). The fan uses ball bearings for enhanced durability and features two-wire leads. This fan is suitable for a wide range of electronic cooling applications.
3610SB-05W-B60-E00 Fan Parameters
Manufacturer: NMB Technologies Corporation
Model: 3610SB-05W-B60-E00
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 24V DC
Current Rating: 0.26 A
Power Consumption: 6.24 W
Airflow: 60 CFM (102.0 m³/h)
Static Pressure: 0.28 inch H₂O (70 Pa)
Speed: 3800 RPM
Noise Level: 39.0 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Thermoplastic (UL94V-0)
Impeller Material: Thermoplastic (UL94V-0)
Operating Temperature: -10 °C ~ 70 °C
Application
The 3610SB-05W-B60-E00 is a versatile DC axial fan designed for efficient cooling in various electronic systems. Its balanced performance makes it a popular choice for industrial control cabinets, server cooling, telecommunication equipment, and power supplies. The fan’s robust construction and reliable operation ensure effective thermal management for components that generate moderate to high levels of heat.
