Description

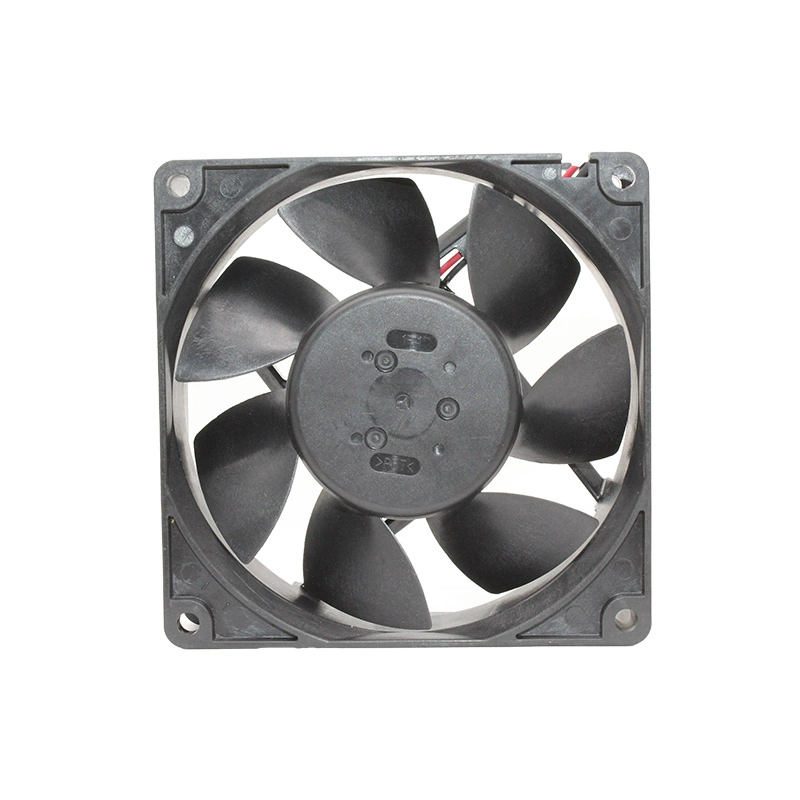

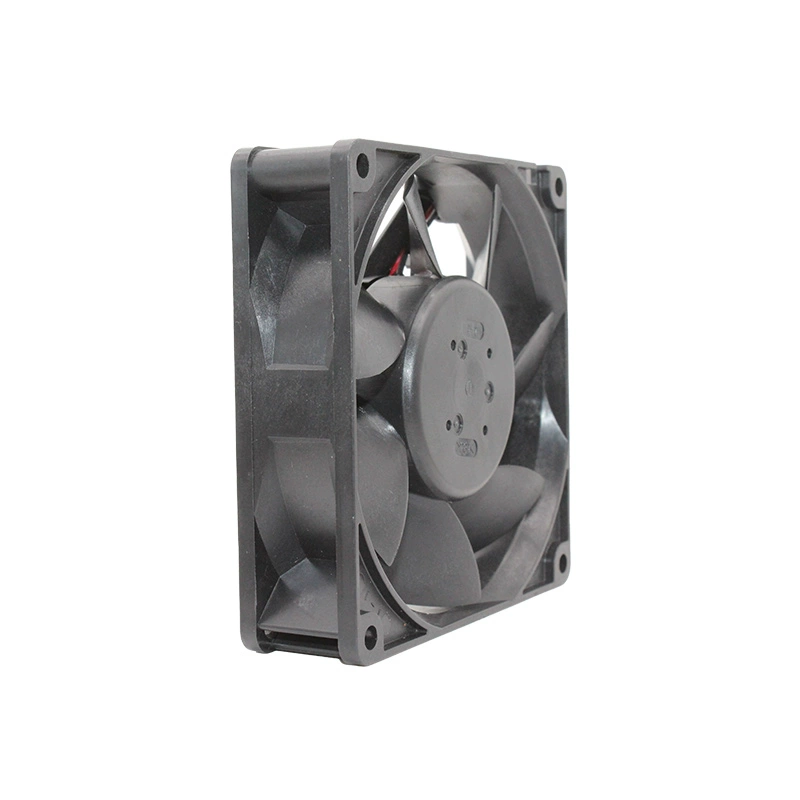

The NMB 3610VL-05W-B30-BQ3 is a powerful 24V DC axial cooling fan measuring 92mm x 92mm x 25mm. Operating at a rated current of 0.19A (4.56W), this fan is engineered for efficient thermal management in electronic equipment where strong airflow is needed. It achieves a rotational speed of 3600 RPM, delivering 67.0 CFM of airflow with a static pressure of 0.28 inch-H2O (69.7 Pa). Its noise output is 38.0 dBA. The fan is equipped with ball bearings for a long operational life of 60,000 hours at 60°C. Connectivity is via 2-wire leads, and integrated features include auto-restart and polarity protection, ensuring dependable performance.
Model Number: 3610VL-05W-B30-BQ3
Manufacturer: NMB Technologies Corporation
Type: DC Axial Cooling Fan
Dimensions: 92mm x 92mm x 25mm
Rated Voltage: 24V DC
Operating Voltage: 10.0V to 27.6V DC
Rated Current: 0.19A
Rated Power: 4.56W
Speed: 3600 RPM
Airflow: 67.0 CFM / 1.90 m³/min
Static Pressure: 0.28 inch-H2O / 69.7 Pa
Noise Level: 38.0 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 60,000 hours at 60°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
