Description

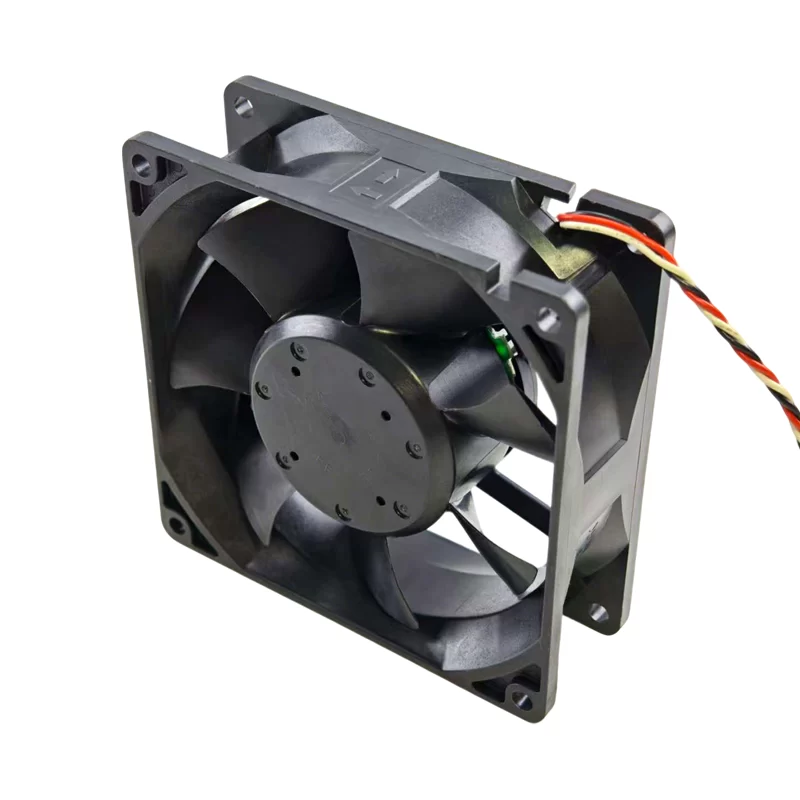

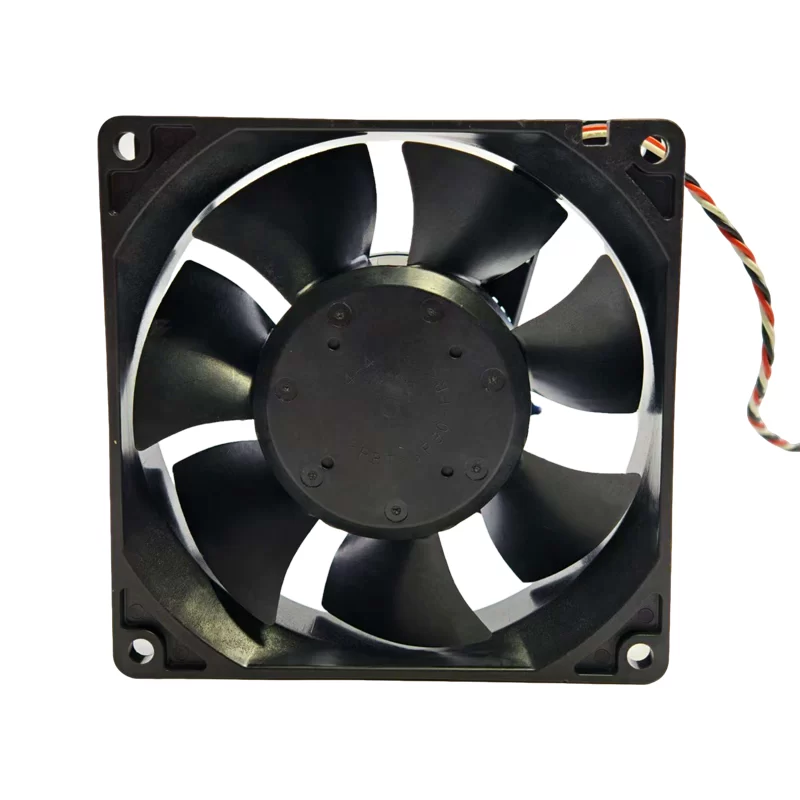

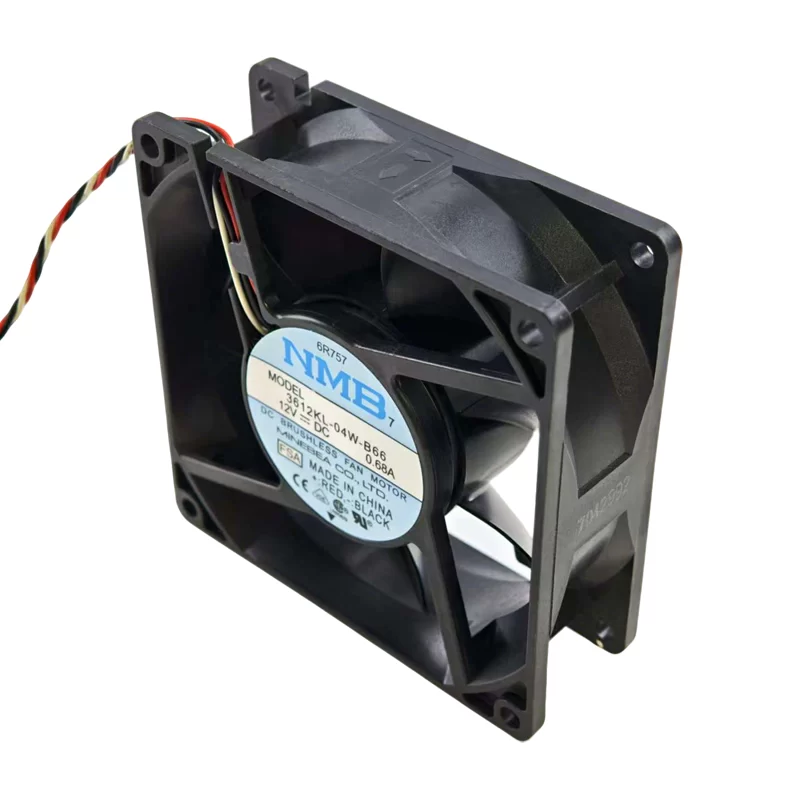

The NMB 3612KL-04W-B66-FSA is a high-performance 12VDC axial fan with dimensions of 92x92x32mm, often utilized in server and specialized computing applications due to its thermal control capability. This dual-mode operation allows the fan to run at a lower, quieter speed (approx. 1400 RPM / 1.25W / 17 dBA) during low-load conditions. However, when maximum cooling is required, the fan ramps up to its full-rated performance: 4000RPM, 70.5CFM (119.8m³/h) of airflow, 44dB(A) of noise, 0.68A of current, and 8.16W of power. It is constructed with durable plastic housing and impeller, uses ball bearings, and features a 3-wire termination that provides a speed sensor output for system monitoring. It is commonly used in servers, workstations, and network hardware that require dynamic cooling solutions.
3612KL-04W-B66-FSA Fan Parameters
Manufacturer: NMB Technologies Corporation
Model: 3612KL-04W-B66-FSA
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 32 mm
Rated Voltage: 12 VDC
Current Rating: 0.68 A
Power Consumption: 8.16 W
Airflow: 70.5 CFM (119.8 m³/h)
Speed: 4000 RPM
Noise Level: 44 dB(A)
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Features: Thermal Control, Speed Sensor (Tachometer/FG)
Housing Material: Plastic
Impeller Material: Plastic
Lifetime @ Temp: 50,000 Hours
Application: This NMB DC axial fan is suitable for cooling servers, workstations, and network hardware.
