Description

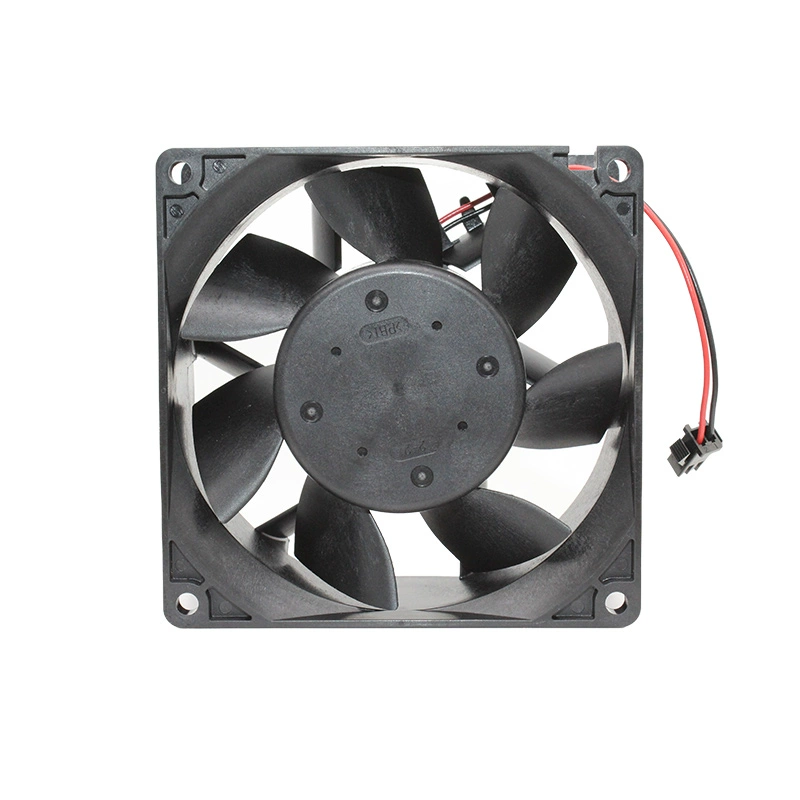

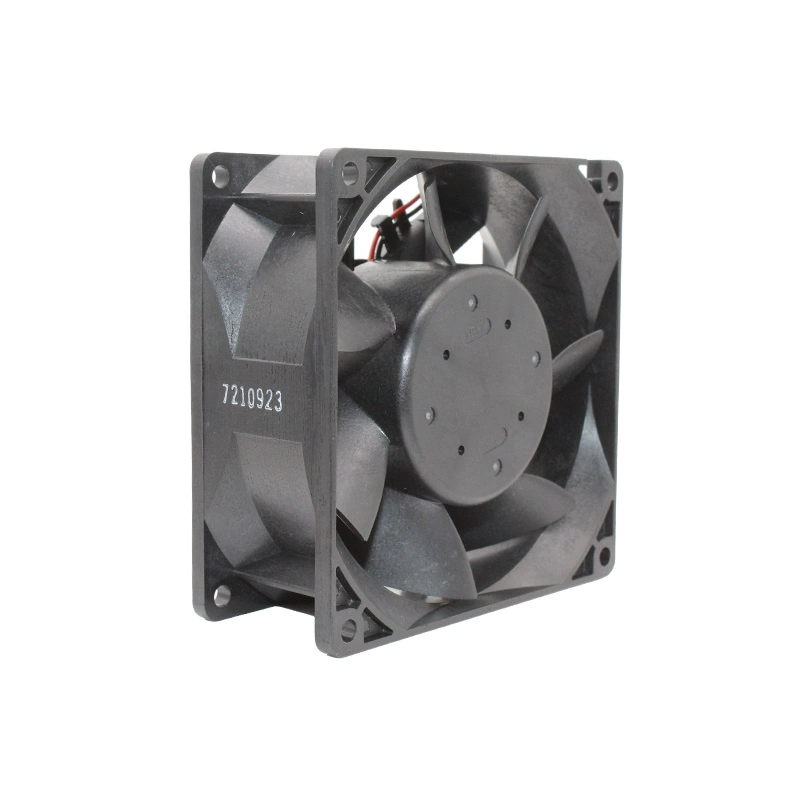

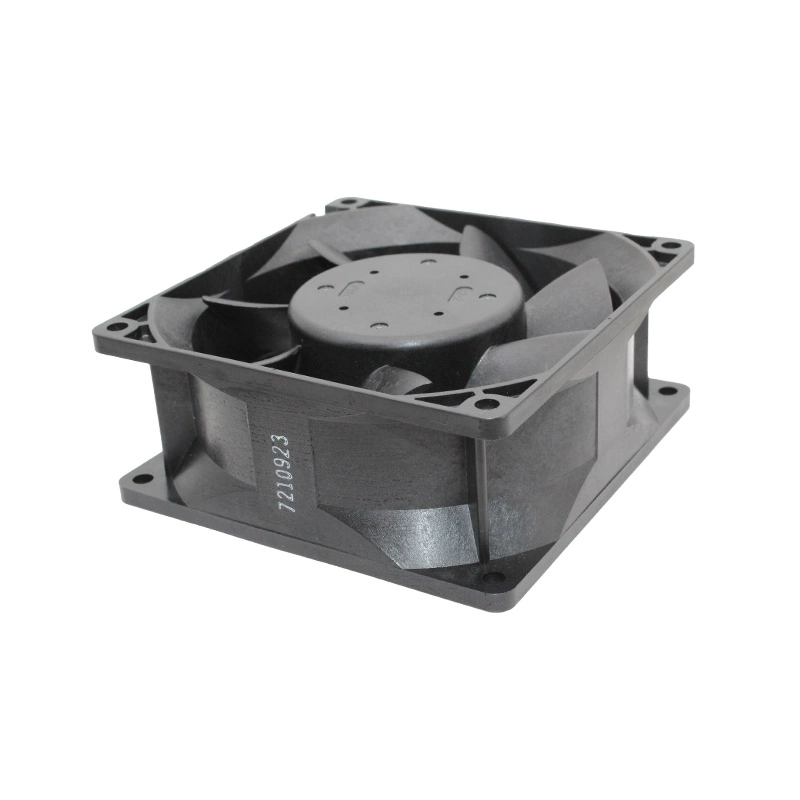

The NMB 3615RL-05W-B40-EQ1 is a high-performance 24V DC axial cooling fan from NMB Technologies Corporation, measuring 92mm x 92mm x 38mm. Operating at a rated current of 0.73A (17.52W), this fan is engineered for demanding thermal management applications in servers, power supplies, and industrial equipment that require significant airflow and static pressure. It achieves a rotational speed of 5400 RPM, delivering 100 CFM of airflow with a noise level of 51.0 dBA. Equipped with durable ball bearings, it offers an extended operational life of 100,000 hours at 25°C. The fan typically utilizes 3-wire leads, which often includes a locked rotor sensor for monitoring its operational status, ensuring reliable performance in continuous cooling scenarios.
Model Number: 3615RL-05W-B40-EQ1
Manufacturer: NMB Technologies Corporation (Minebea)
Type: DC Axial Cooling Fan
Dimensions: 92mm x 92mm x 38mm
Rated Voltage: 24V DC
Operating Voltage: 14.4V to 26.4V DC
Rated Current: 0.73A
Rated Power: 17.52W
Speed: 5400 RPM
Airflow: 100 CFM / 2.83 m³/min
Static Pressure: 0.65 inch-H2O / 162 Pa
Noise Level: 51.0 dBA
Connector: 3-Wire Leads (typically with Locked Rotor Sensor)
Bearing Type: Ball Bearing
Life Expectancy: 100,000 hours at 25°C (L10)
Operating Temperature: -20°C to 70°C
Frame Material: Plastic (UL94V-0 rated)
Impeller Material: Plastic (UL94V-0 rated)
Features: Locked Rotor Sensor, Auto Restart, Reverse Polarity Protection
