Description

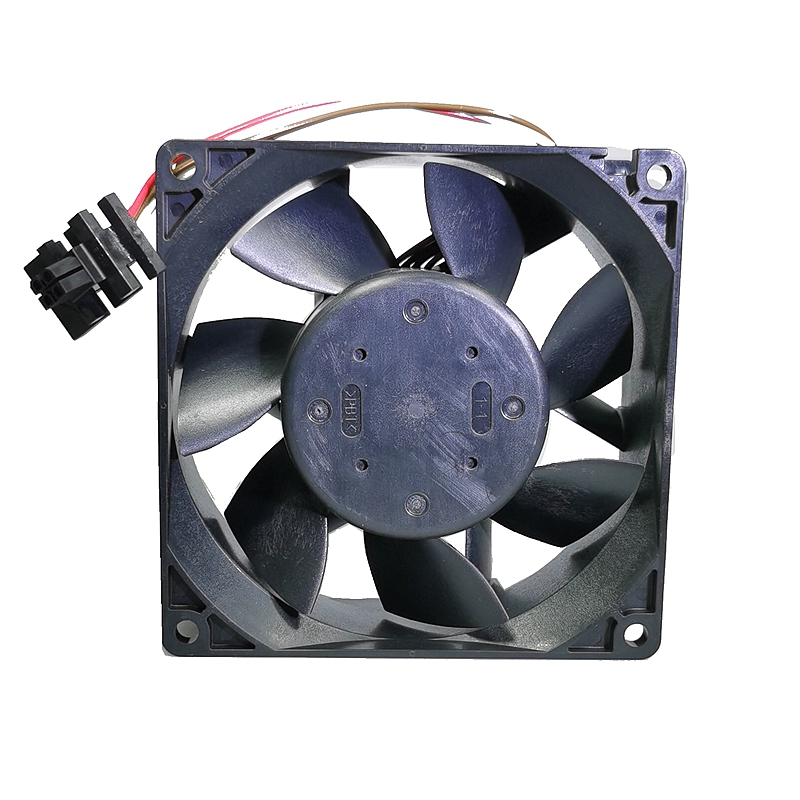

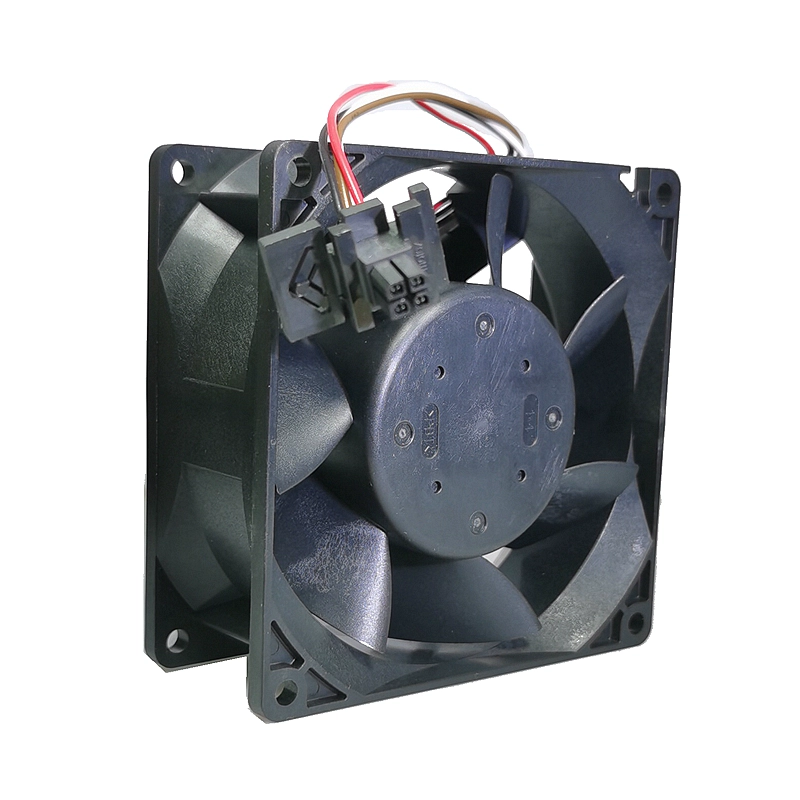

The NMB 3615RL-05W-B46 is a very powerful and robust 24V DC axial fan, measuring 92x92x38mm. Engineered by NMB Technologies, this fan is designed for aggressive cooling in demanding applications where high airflow and static pressure are critical. It features ball bearings for excellent durability and a long operational lifespan. Drawing 0.73A of current, it delivers an impressive 142 CFM of airflow and a substantial 1.04 In H2O of static pressure at a rapid 8500 RPM. With a noise level of 61.0 dBA, this fan prioritizes extreme cooling capability for its size. Its 4-wire termination provides advanced functionality, including PWM control for precise speed management and a pulse sensor for real-time RPM monitoring. This fan is an ideal choice for server cases, industrial inverters, power supplies, and other high-density electronic systems requiring efficient and controllable thermal management.
Brand new 3615RL-05W-B46 original NMB fan 24V 9238 ABB inverter cooling fan
Model: 3615RL-05W-B46
Manufacturer: NMB Technologies Corporation
Type: DC Axial Fan
Dimensions: 92mm x 92mm x 38mm
Nominal Voltage: 24V DC
Current: 0.73A
Power Consumption: 17.52W
Speed: 8500 RPM
Airflow: 142 CFM
Static Pressure: 1.04 In H2O
Noise Level: 61.0 dBA
Bearing Type: Ball Bearing
Life Expectancy: 70,000 hours at 40°C
Termination: 4-wire leads
Frame Material: Plastic
Blade Material: Plastic
Features: PWM Control, Pulse Sensor, Auto-Restart, Polarity Protection
