Description

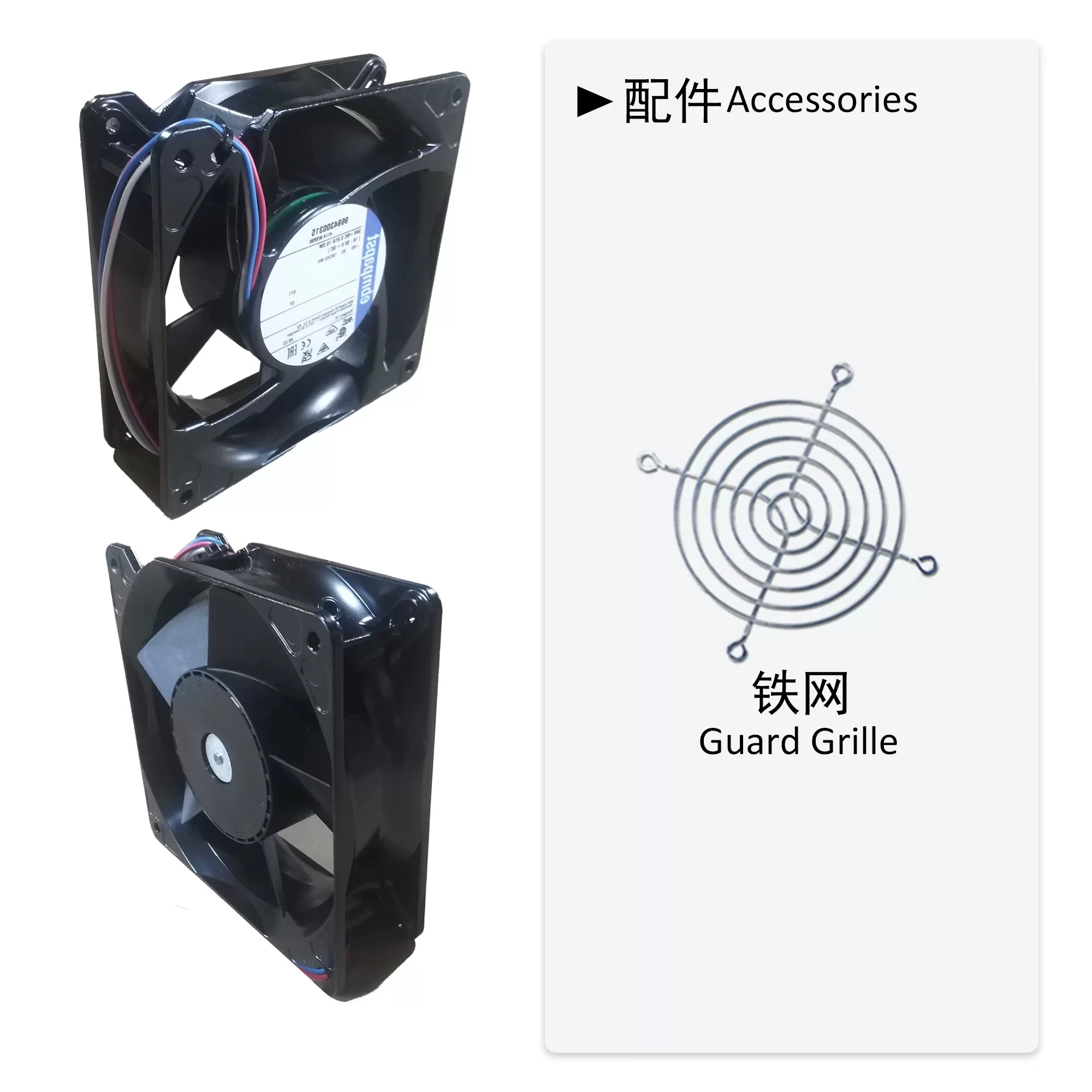

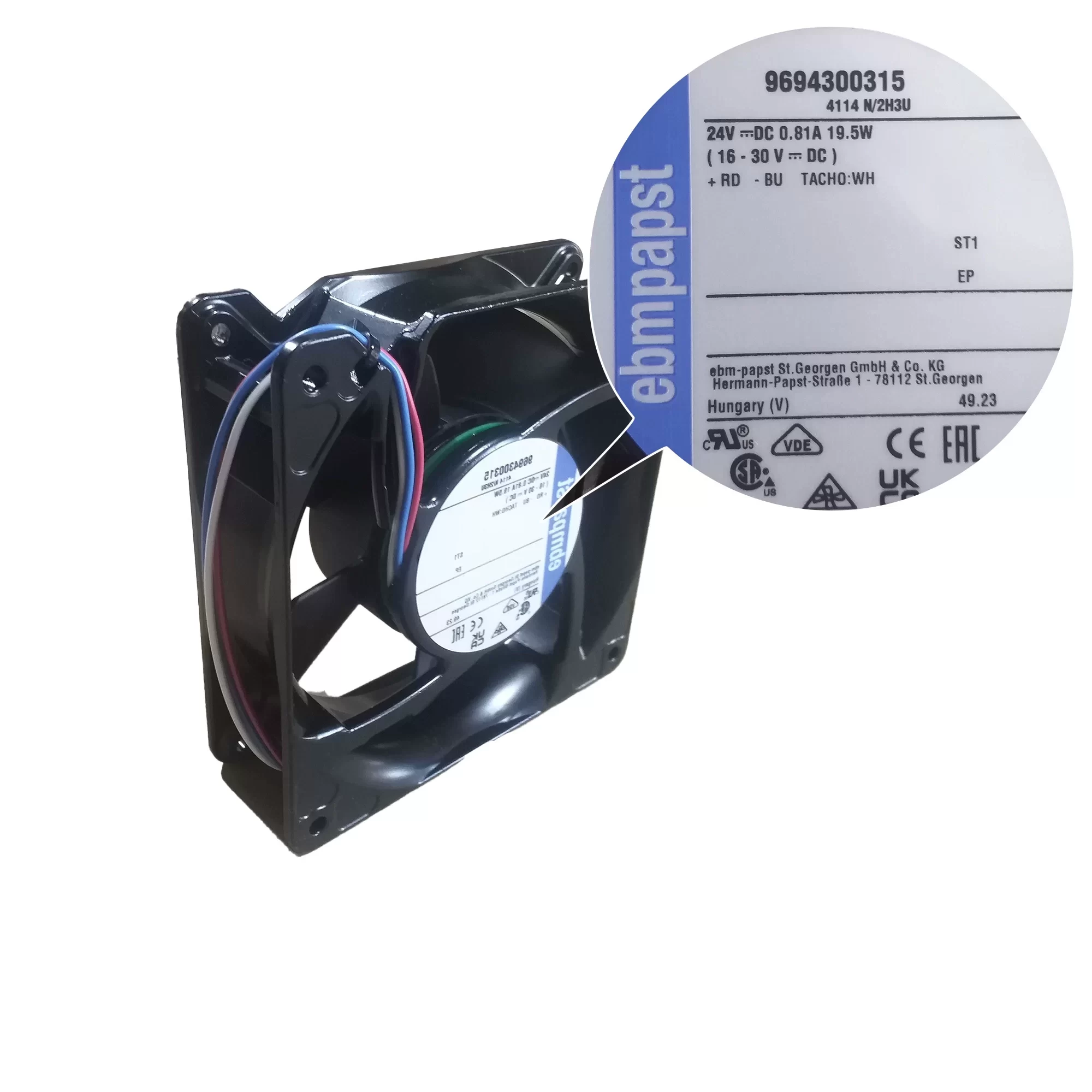

The ebmpapst 4114N/2H3U is a high-performance DC axial compact fan, measuring 119x119x38mm. Operating at 24VDC, it consumes 19.5W of power with a current draw of 0.81A. This fan delivers a significant airflow of 310m³/h (182CFM) at a speed of 6000RPM, though it produces a noise level of 73dB(A). It features reliable ball bearings and includes a speed signal/open collector output for monitoring. With a robust aluminum housing and glass-fiber reinforced PA plastic impeller, it’s designed for demanding cooling applications within an ambient temperature range of -20 to 65°C.
4114N/2H3U Fan Parameters
Manufacturer: ebmpapst
Model: 4114N/2H3U
Fan Type: Axial Fan
Dimensions: 119 x 119 x 38 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 16 ~ 30 VDC
Current Rating: 0.81 A
Power Consumption: 19.5 W
Airflow: 310 m³/h (182 CFM)
Speed: 6000 RPM
Noise Level: 73 dB(A)
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Fan Features: Speed Signal, Open Collector Output
Operating Temperature: -20 ~ 65°C
Frame Material: Aluminum
Blade Material: Glass-fiber reinforced PA plastic
IP Rating: IP20
Weight: 0.38 kg
Application: This ebmpapst DC axial fan is suitable for various cooling needs in industrial setups, inverter systems, and other electronic devices where high airflow and a compact size are required, such as in rail technology.
