Description

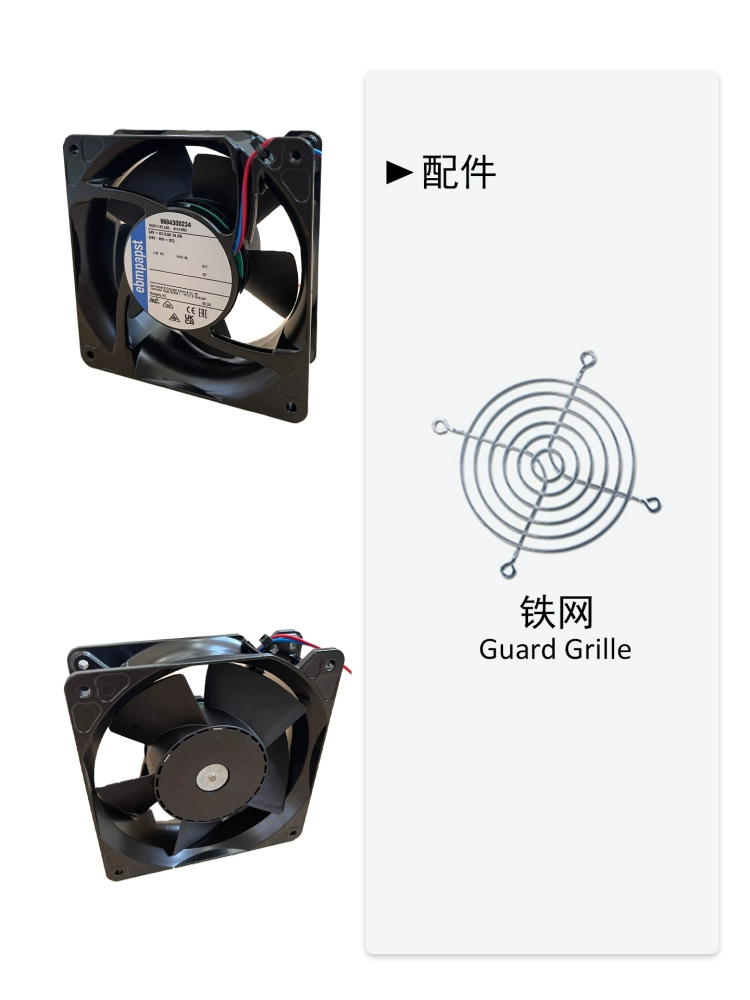

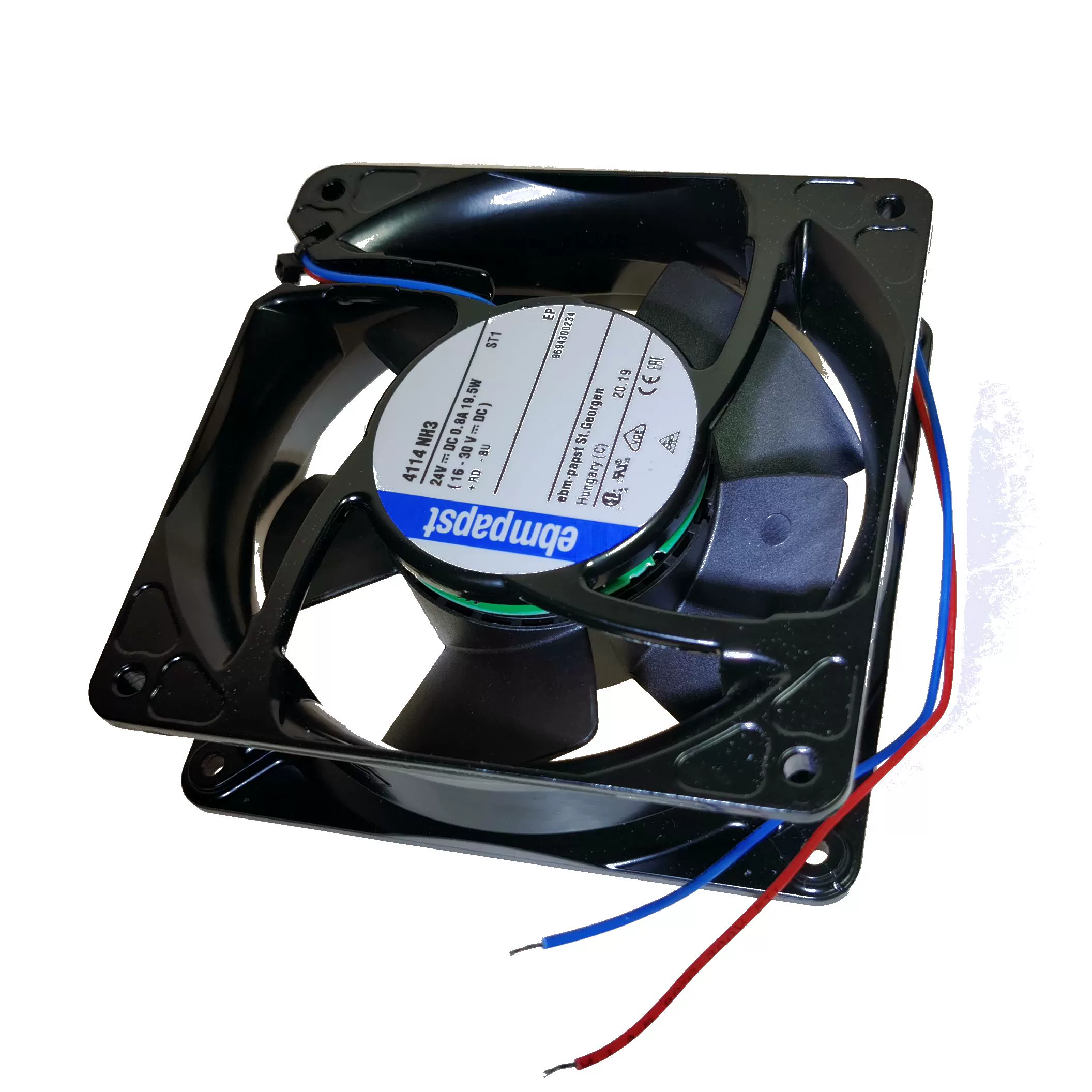

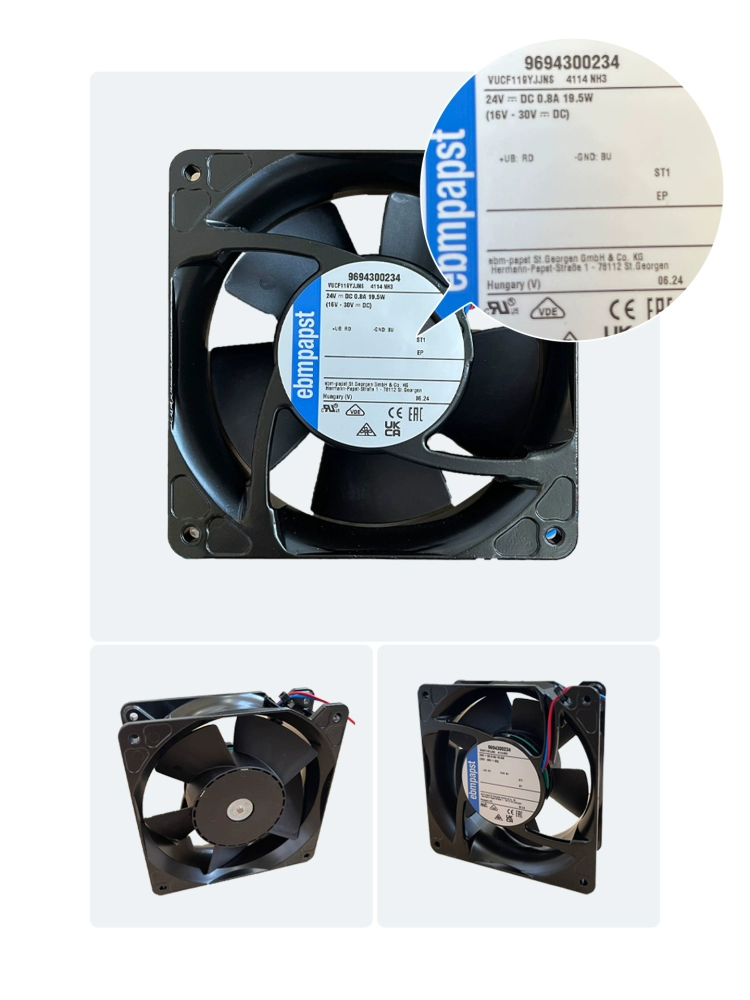

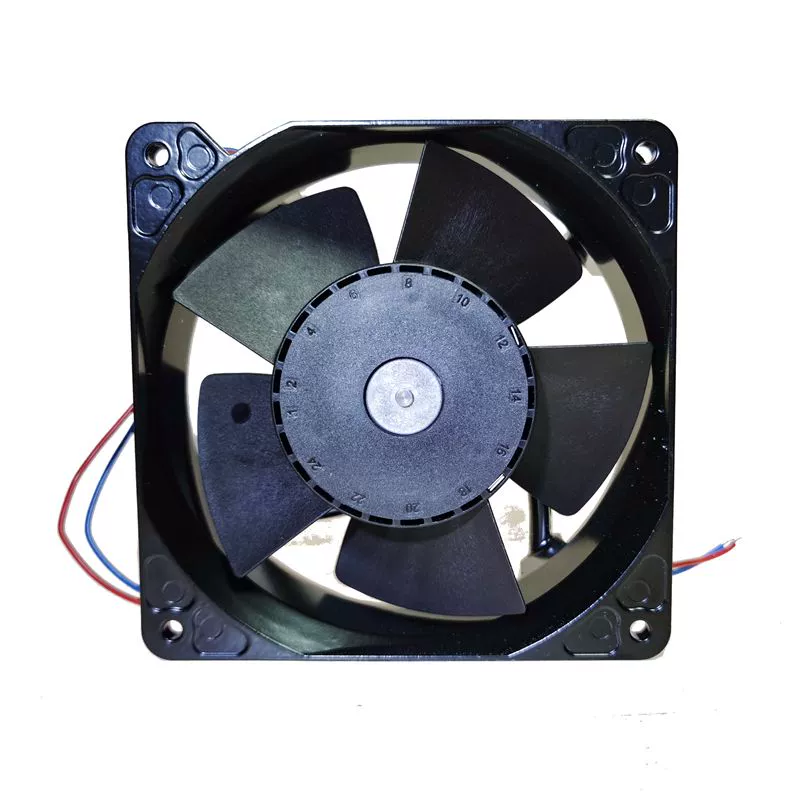

The ebmpapst 4114NH3 is a high-performance 24V DC axial fan, precisely measuring 119x119x38mm. Engineered for demanding cooling in servers, control cabinets, and industrial electronics, it operates at 24V DC, drawing 0.8 amps of current and consuming 19.5 watts of power. This fan achieves a high speed of 6000 RPM, delivering a powerful airflow of 182.4 CFM (310 m³/h) with a static pressure of 224 Pa (0.9 inchH2O) and a noise level of 65 dBA. Constructed with a durable die-cast aluminum frame, a fiberglass-reinforced plastic impeller, and robust ball bearings, it also includes locked rotor and polarity protection for enhanced reliability. Its strong performance makes it ideal for applications requiring significant air movement.
4114NH3 Fan Parameters
Model Number: 4114NH3
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 119mm x 119mm x 38mm
Rated Voltage: 24 VDC
Operating Voltage Range: 16 – 30 VDC
Rated Current: 0.8A
Rated Power: 19.5 W
Speed: 6000 RPM
Airflow: 182.4 CFM (310 m³/h)
Static Pressure: 224 Pa (0.9 inchH2O)
Noise Level: 65 dBA
Bearing Type: Ball Bearing
Service Life: 65,000 hours at 40°C, 37,500 hours at max. temperature
Frame Material: Die-cast aluminum
Impeller Material: Glass-fiber reinforced PA plastic
Operating Temperature: -20°C to +65°C
Weight: 390 g (0.86 lb)
Connector: 2-wire leads
Features: Locked Rotor Protection, Reverse Polarity Protection
Approvals/Certifications: CE
Application: Server cooling, control cabinet cooling, industrial electronics, high-density equipment
