Description

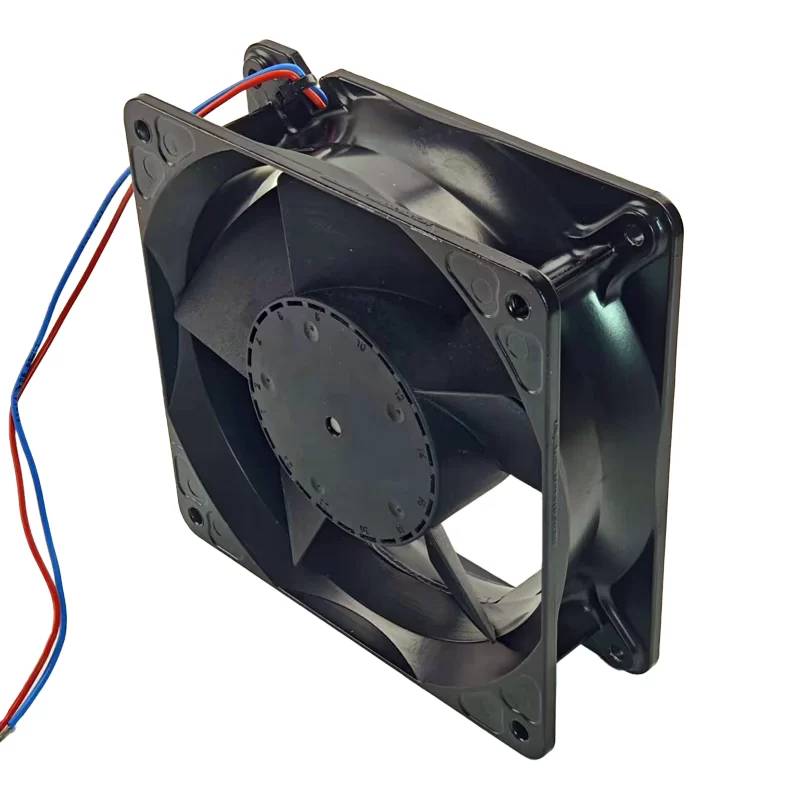

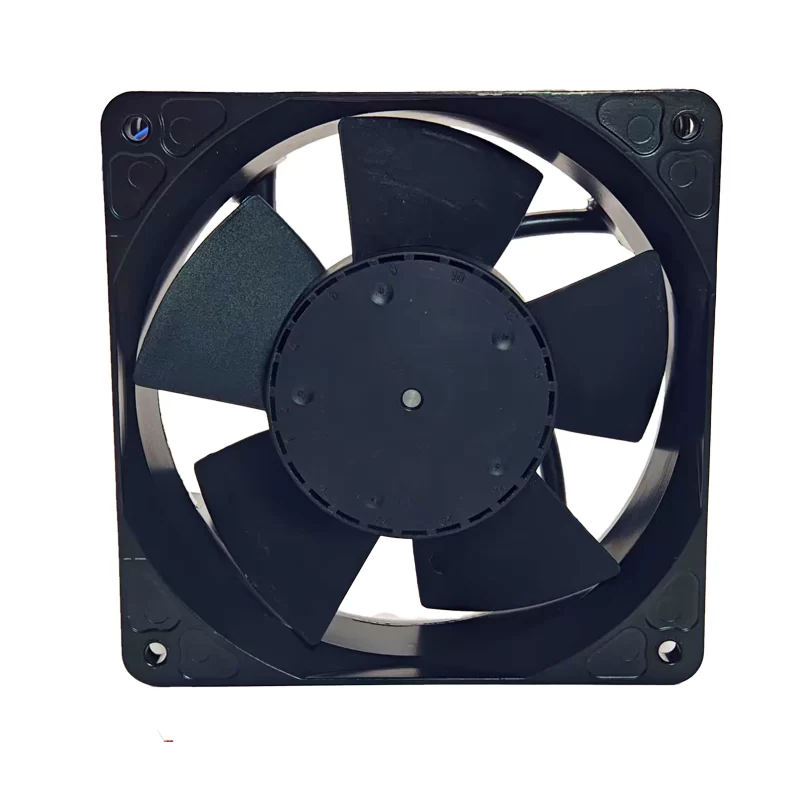

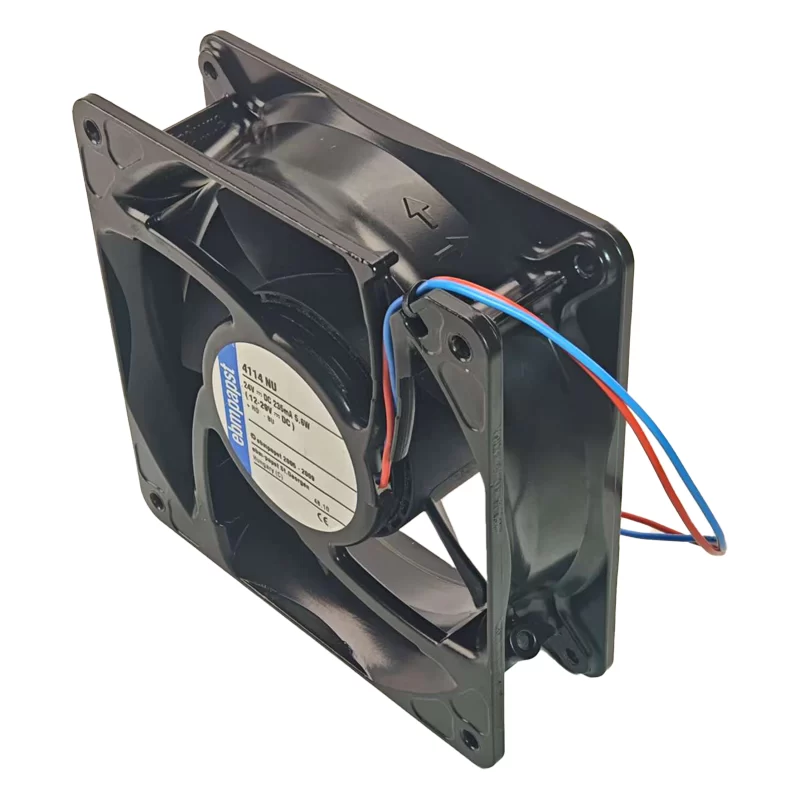

The ebmpapst 4114NU represents a pinnacle of reliable cooling, specifically engineered for demanding operational settings. This 119mm x 119mm x 38mm DC axial fan operates on 24 VDC, delivering consistent and powerful airflow. Its standout feature is an IP68 rating, providing exceptional resistance to both dust and water, which makes it an ideal choice for outdoor installations or harsh industrial environments. With a power consumption of 5.6W and drawing 0.235A, it achieves a swift 3200 RPM, moving 106 CFM (3 m³/min) of air with a sound profile of 48.5 dB(A). Built with robust ball bearings and a durable die-cast aluminum housing, the 4114NU promises an extended service life of 57,500 hours, making it a dependable component for critical infrastructure.
4114NU Fan Parameters
Model: 4114NU
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 119mm x 119mm x 38mm
Rated Voltage: 24 VDC
Operating Voltage Range: 12 VDC – 29 VDC
Rated Current: 0.235A
Power Consumption: 5.6 W
Speed: 3200 RPM
Airflow: 106 CFM (3 m³/min)
Static Pressure: 0.4 inch H2O (99.6 Pa)
Noise Level: 48.5 dB(A)
Bearing Type: Ball Bearing
Housing Material: Die-cast Aluminum
Impeller Material: Glass-fiber reinforced PA plastic
Termination: 2-Wire Leads
Operating Temperature: -20°C to +75°C
Life Expectancy: 57,500 hours (L10 at 40°C)
Weight: 390 g
Features: Electronically commutated external rotor motor, Integrated commutation electronics, Protected against reverse polarity, Protected against locking and overload, IP68 rated.
Application: Industrial control cabinets, telecommunications infrastructure, outdoor electronic enclosures, harsh environment cooling, medical equipment, power supplies.
