414J ebmpapst 24V DC Axial Fan

Description

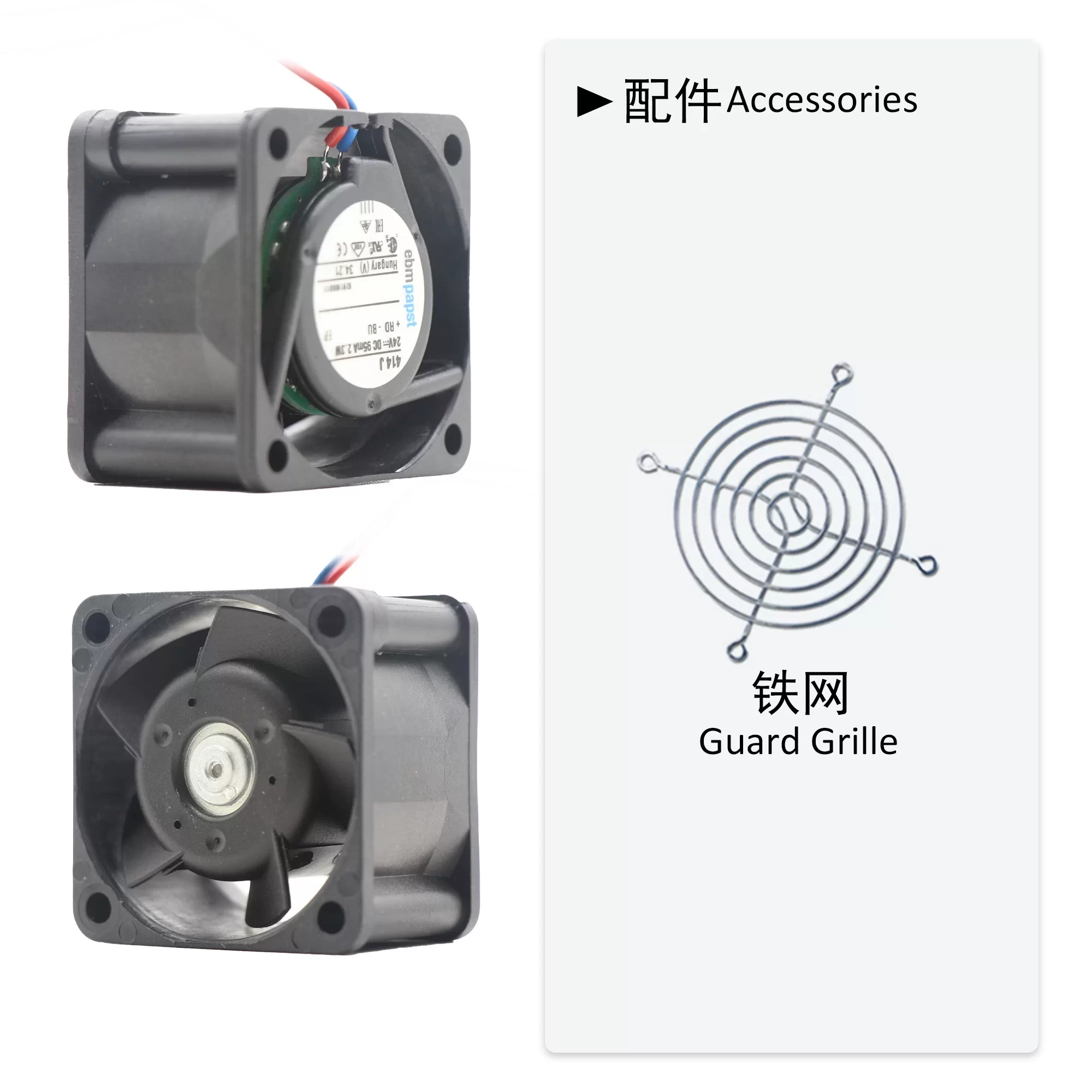

The ebmpapst 414J is a 24VDC axial fan with dimensions of 40x40x25mm. Operating within an 18-27VDC range, it draws 0.1A of current and consumes 2.4W of power. This fan delivers an airflow of 19m³/h (11CFM) and operates at a high speed of 10300RPM, with a noise level of 39dB(A). Featuring durable ball bearings and two wire leads, it is constructed with a fiberglass-reinforced PBT plastic housing and a fiberglass-reinforced PA plastic impeller. It is suitable for reliable operation within an ambient temperature range of -20 to 70°C and has a typical service life of 60,000hours at 40°C. This fan is suitable for compact cooling solutions in electronic devices and small enclosures.

414J Fan Parameters
Manufacturer: ebmpapst
Model: 414J
Fan Type: DC Axial Fan
Dimensions: 40 x 40 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 18 ~ 27 VDC
Current Rating: 0.1 A
Power Consumption: 2.4 W
Airflow: 19 m³/h (11 CFM)
Speed: 10300 RPM
Noise Level: 39 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Operating Temperature: -20 ~ 70°C
Lifetime @ Temp: 60,000 Hours (at 40°C)
Housing Material: Fiberglass-reinforced PBT plastic
Impeller Material: Fiberglass-reinforced PA plastic
Weight: 0.050 kg
Approval Agency: CE, UL, CSA, VDE
Application: This ebmpapst DC axial fan is suitable for compact cooling solutions in electronic devices, small enclosures, and various systems where efficient airflow is needed in constrained spaces.
