4314/17T ebmpapst 24V DC Axial Fan

Description

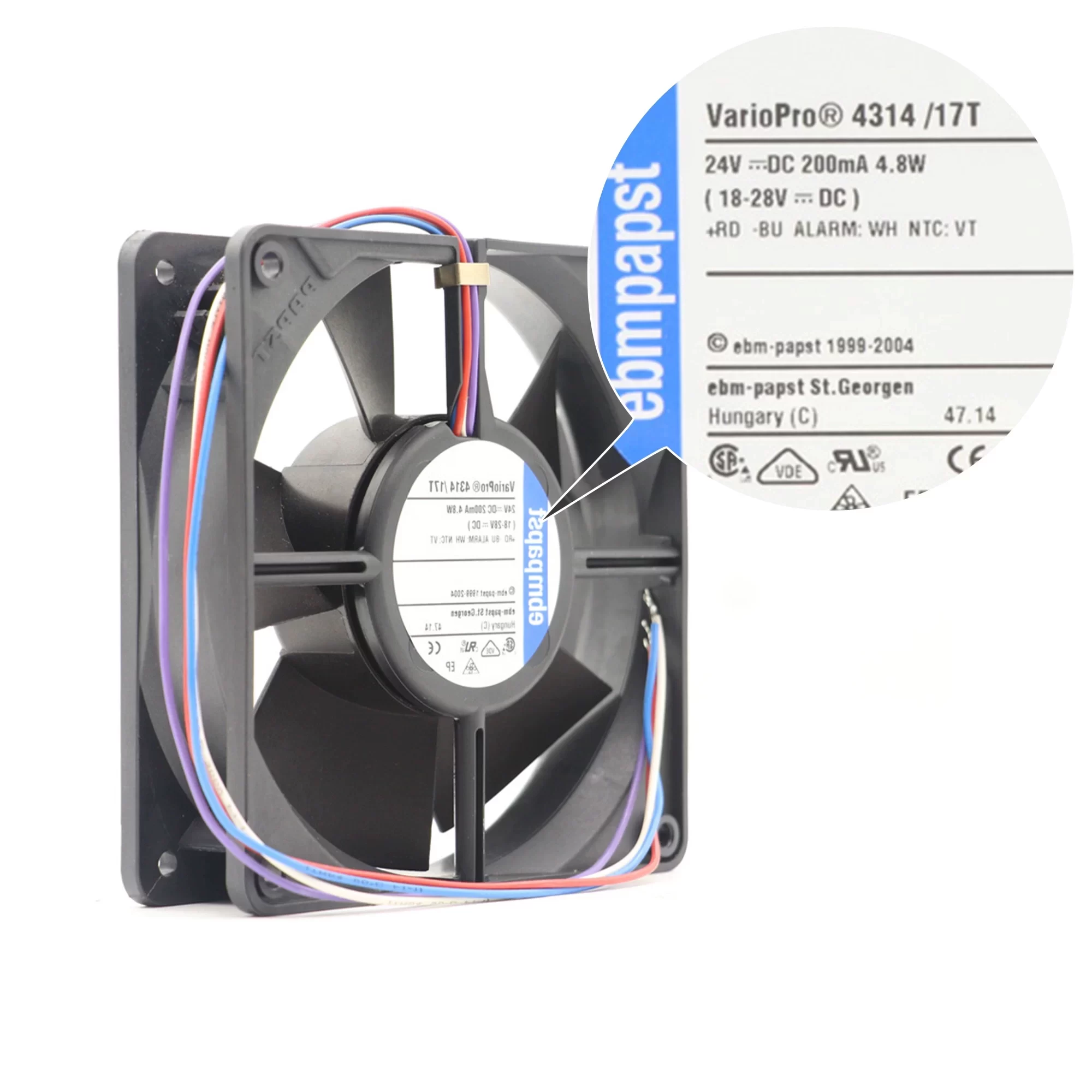

The ebmpapst 4314/17T is a compact 24V DC axial fan with dimensions of 119x119x32mm. Operating within an 18-28V range, it draws 200mA of current and consumes 4.8W of power. This fan delivers an airflow of 134m³/h and a static pressure of 78Pa at a speed of 2800RPM, with a noise level of 45dB(A). Featuring reliable ball bearings and 4 wire leads, it provides a speed signal output for monitoring. Built with a durable plastic frame and impeller, it ensures dependable performance within an ambient temperature range of -25 to 65°C, with a lifetime of 65,000 hours at 40°C, and is certified by CE, UL, VDE, and CSA.

4314/17T Fan Parameters
Manufacturer: ebmpapst
Model: 4314/17T
Fan Type: Axial Fan
Dimensions: 119 x 119 x 32 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 18 ~ 28 VDC
Current Rating: 200 mA
Power Consumption: 4.8 W
Airflow: 134 m³/h
Static Pressure: 78 Pa
Speed: 2800 RPM
Noise Level: 45 dB(A)
Bearing Type: Ball Bearing
Termination: 4 Wire Leads
Fan Features: Speed Signal
Operating Temperature: -25 ~ 65°C
Lifetime @ Temp: 65,000 Hours @ 40°C
Frame Material: Plastic
Blade Material: Plastic
IP Rating: IP20
Weight: 0.22 kg
Approval Agency: CE, UL, VDE, CSA
Application: This ebmpapst DC axial fan is suitable for various cooling applications in electronics, IT equipment, industrial controls, and inverter cooling, where efficient air movement, precise control, and robust certifications are needed.
