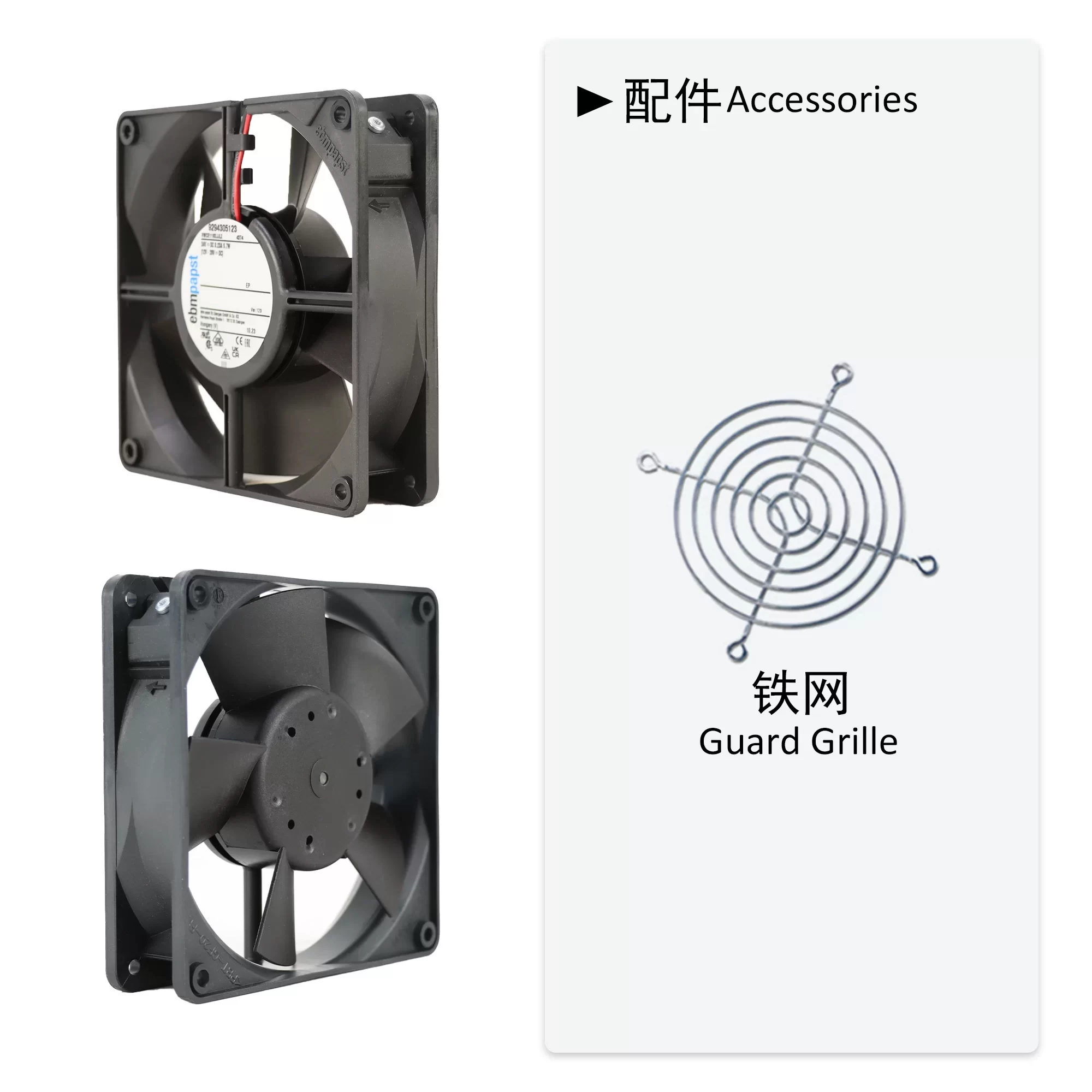

4374-123 ebmpapst 24V DC Axial Fan

Description

The ebmpapst 4374-123 is a 24VDC axial fan with dimensions of 119x119x32mm. Its Part number is 9294305123, and it is also identified as New Model VWCE119XJJLZ. Operating within a 12-28VDC range, it draws 230mA of current and consumes 5.7W of power. This fan delivers an airflow of 180m³/h (105.9CFM) and operates at a speed of 3000RPM, with a noise level of 47dB(A) and a sound power level of 6.1Bels. Featuring durable ball bearings and two wire leads, it is constructed with a plastic housing and a plastic impeller. It is suitable for reliable operation within an ambient temperature range of -20 to 75°C and has a typical service life of 70,000hours at 40°C. This fan is suitable for cooling electronic equipment and control panels.

4374-123 Fan Parameters
Manufacturer: ebmpapst
Model: 4374-123

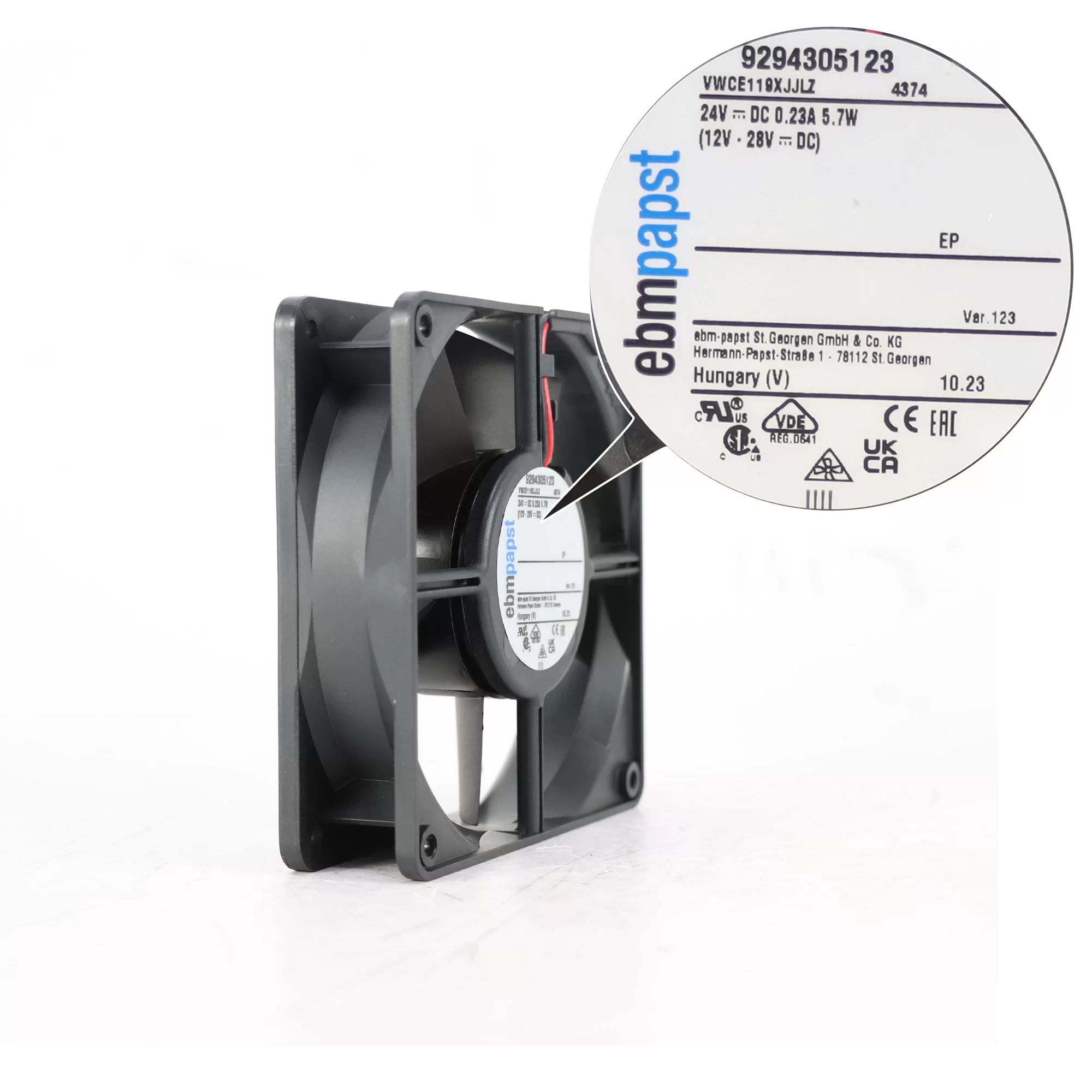

Part number: 9294305123
New Model: VWCE119XJJLZ
Fan Type: DC Axial Fan
Dimensions: 119 x 119 x 32 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 12 ~ 28 VDC
Current Rating: 230 mA
Power Consumption: 5.7 W
Airflow: 180 m³/h (105.9 CFM)
Speed: 3000 RPM
Noise Level: 47 dB(A)
Sound Power Level: 6.1 Bels
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Operating Temperature: -20 ~ 75°C
Lifetime @ Temp: 70,000 Hours (at 40°C)
Housing Material: Plastic
Impeller Material: Plastic
Weight: 0.22 kg
Approval Agency: CE, UL, VDE
Application: This ebmpapst DC axial fan is suitable for various industrial and electronic cooling applications, including machinery, control cabinets, and IT equipment, where efficient air movement is required.
