Description

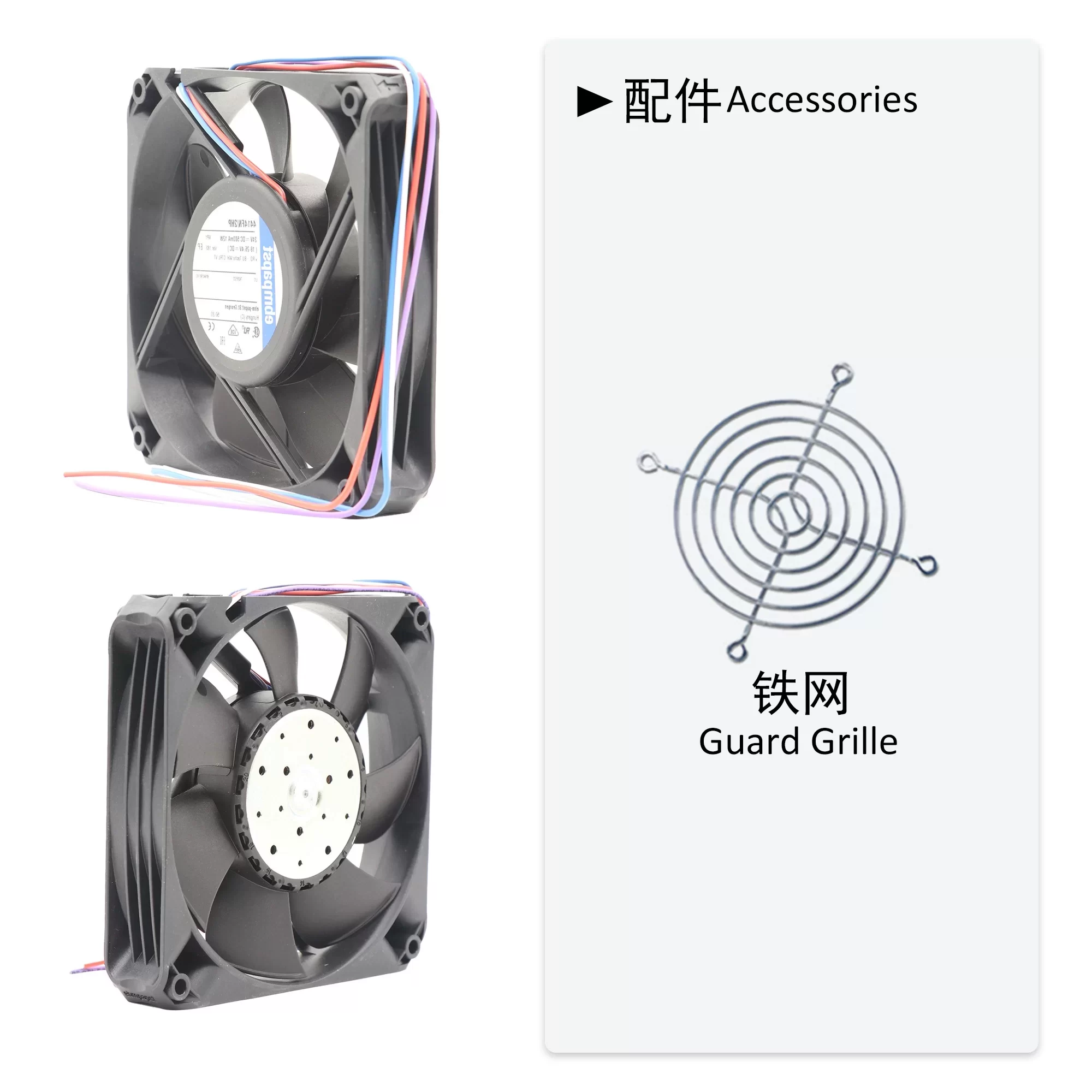

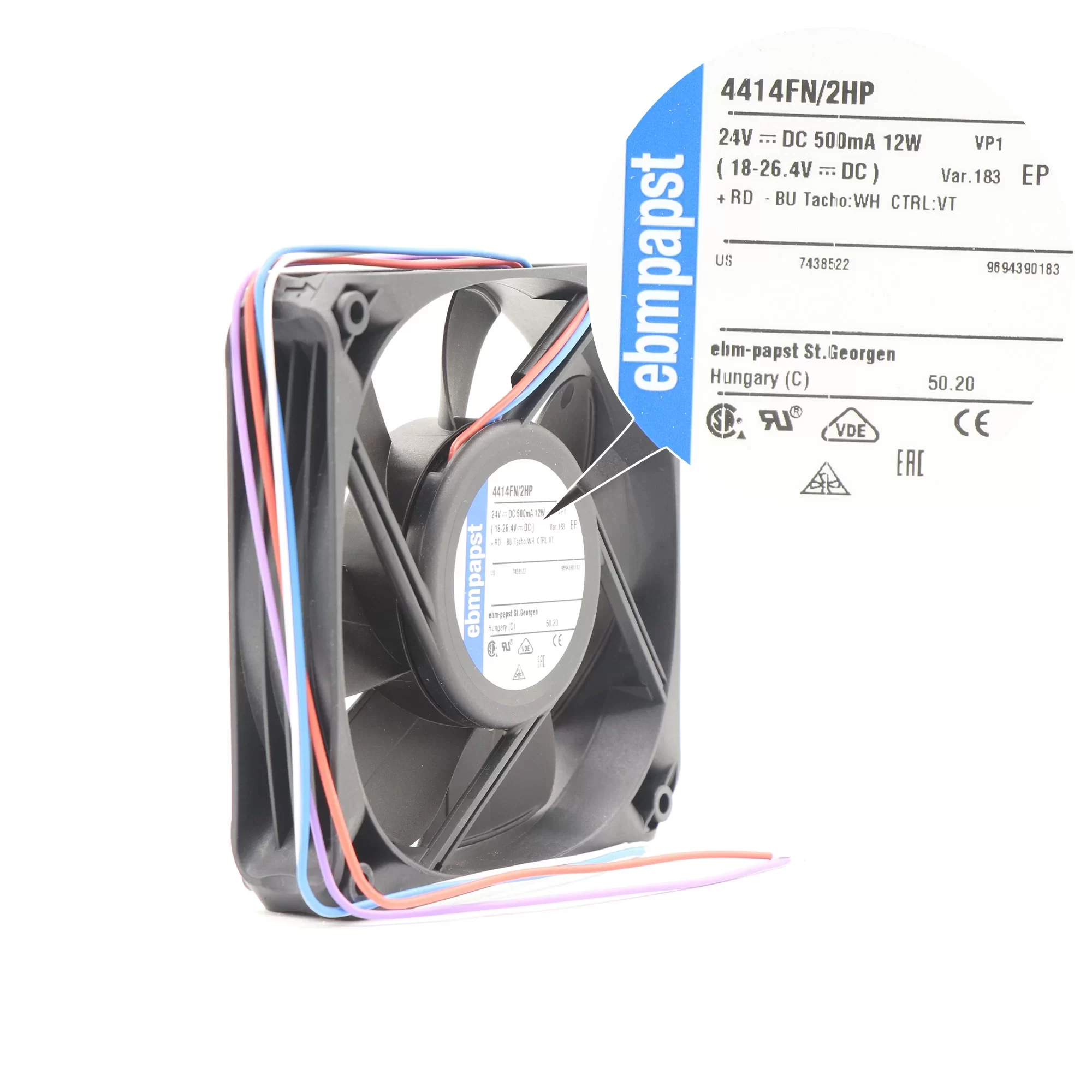

The ebmpapst 4414FN/2HP-183 is a compact DC axial fan, with dimensions of 119x119x25.4mm, designed for efficient cooling. Operating at 24VDC, it draws 500mA and consumes 12W of power. This fan delivers an airflow of 225m³/h and a static pressure of 195Pa at a speed of 5400RPM. It features reliable ball bearings and includes both PWM control for variable speed operation and a speed signal output. Built with a durable plastic housing and plastic impeller, it ensures reliable performance within an ambient temperature range of -20 to 70°C, making it suitable for industrial applications.
4414FN/2HP-183 Fan Parameters
Manufacturer: ebmpapst
Model: 4414FN/2HP-183
Fan Type: Axial Fan
Dimensions: 119 x 119 x 25.4 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 18 ~ 26.4 VDC
Current Rating: 500 mA
Power Consumption: 12 W
Airflow: 225 m³/h
Static Pressure: 195 Pa
Speed: 5400 RPM
Noise Level: Not specified
Bearing Type: Ball Bearing
Termination: 4 Wire Leads
Fan Features: PWM Control Input, Speed Signal Output
Operating Temperature: -20 ~ 70°C
Frame Material: Plastic
Blade Material: Plastic
Approval Agency: CE, UL, VDE, CSA
Weight: 0.245 KG
Application: This ebmpapst DC axial fan is commonly used in demanding industrial cooling applications, telecommunications equipment, power supplies, and control cabinets where a compact size and precise control are essential.
