Description

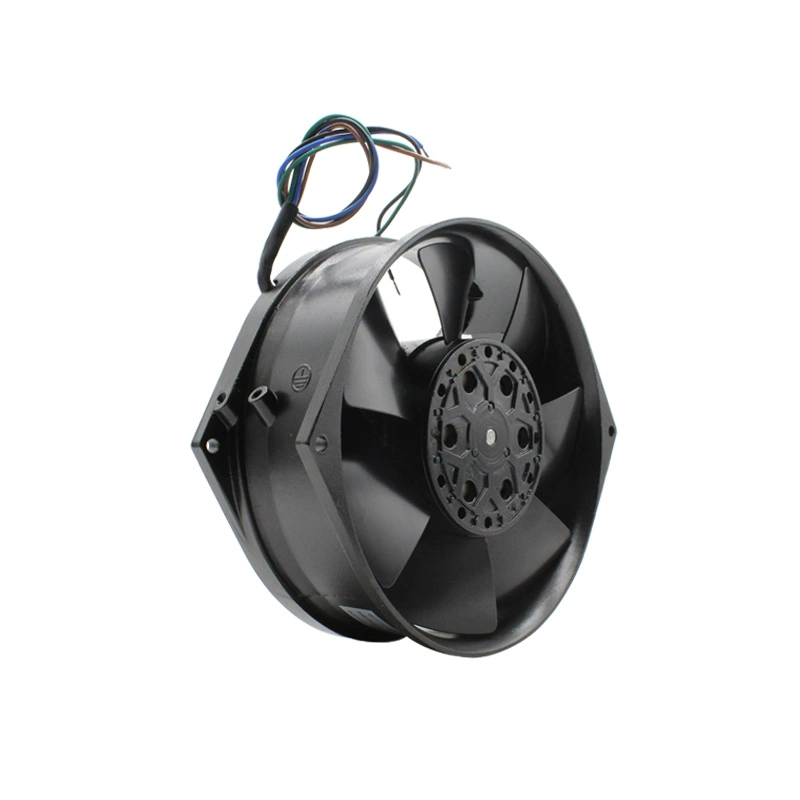

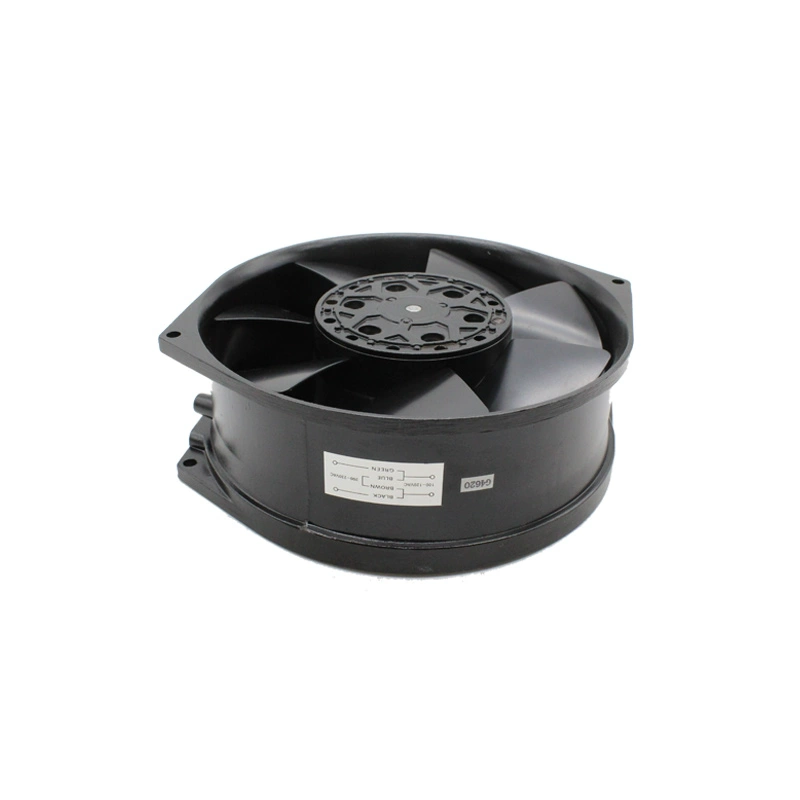

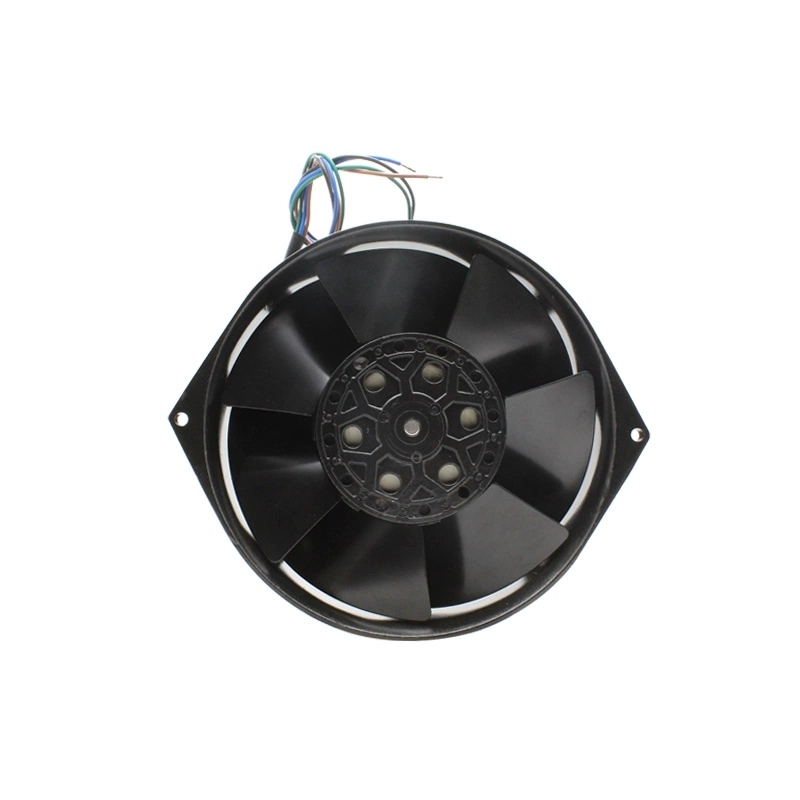

The Bi-Sonic 5E-DVB-1 is a robust AC Axial Cooling Fan designed for versatile operation across 115V AC and 230V AC power supplies, adapting its performance to both 50Hz and 60Hz frequencies. Measuring 163mm x 150mm x 55mm, this fan is built with a durable die-cast aluminum frame and a fiberglass-reinforced plastic impeller. At 115V AC, it draws 0.62A at 50Hz and 0.54A at 60Hz, consuming 71.3W and 62.1W respectively, while achieving speeds of 2750 RPM and 3100 RPM. This results in airflows of 173 CFM and 197 CFM, with noise levels of 54 dBA and 58 dBA. When operating at 230V AC, it draws 0.30A at 50Hz and 0.28A at 60Hz, consuming 69W and 64.4W, maintaining the same speeds, airflows, and noise levels. Equipped with 4-wire leads and a ball bearing system, the 5E-DVB-1 offers reliable and consistent cooling, enhanced by features like impedance protection and an IP54 rating. It is a common choice for industrial control panels, UPS systems, power supplies, and various machinery requiring efficient and durable AC cooling.
Taiwan Bairui 5E-DVB-1 115~230V AC Bi-sonic axial fan AC fan 16255
Manufacturer: Bi-Sonic
Model Number: 5E-DVB-1
Type: AC Axial Cooling Fan
Bearing Type: Ball Bearing
Dimensions: 163mm x 150mm x 55mm
Connector: 4-Wire Leads
Frame Material: Die-cast aluminum
Impeller Material: Fiberglass-reinforced plastic UL 94V-0 rated
Operating Temperature: -30°C to +75°C
Features: Impedance Protected Motor, IP54 rated, CE, UL Approved
Performance at 115V AC
Rated Voltage: 115V AC
Frequency: 50Hz / 60Hz
Rated Current: 0.62A / 0.54A
Rated Power: 71.3W / 62.1W
Speed: 2750 RPM / 3100 RPM
Airflow: 173 CFM / 197 CFM
Static Pressure: 12 mmH2O / 14 mmH2O
Noise Level: 54 dBA / 58 dBA
Performance at 230V AC
Rated Voltage: 230V AC
Frequency: 50Hz / 60Hz
Rated Current: 0.30A / 0.28A
Rated Power: 69W / 64.4W
Speed: 2750 RPM / 3100 RPM
Airflow: 173 CFM / 197 CFM
Static Pressure: 12 mmH2O / 14 mmH2O
Noise Level: 54 dBA / 58 dBA
