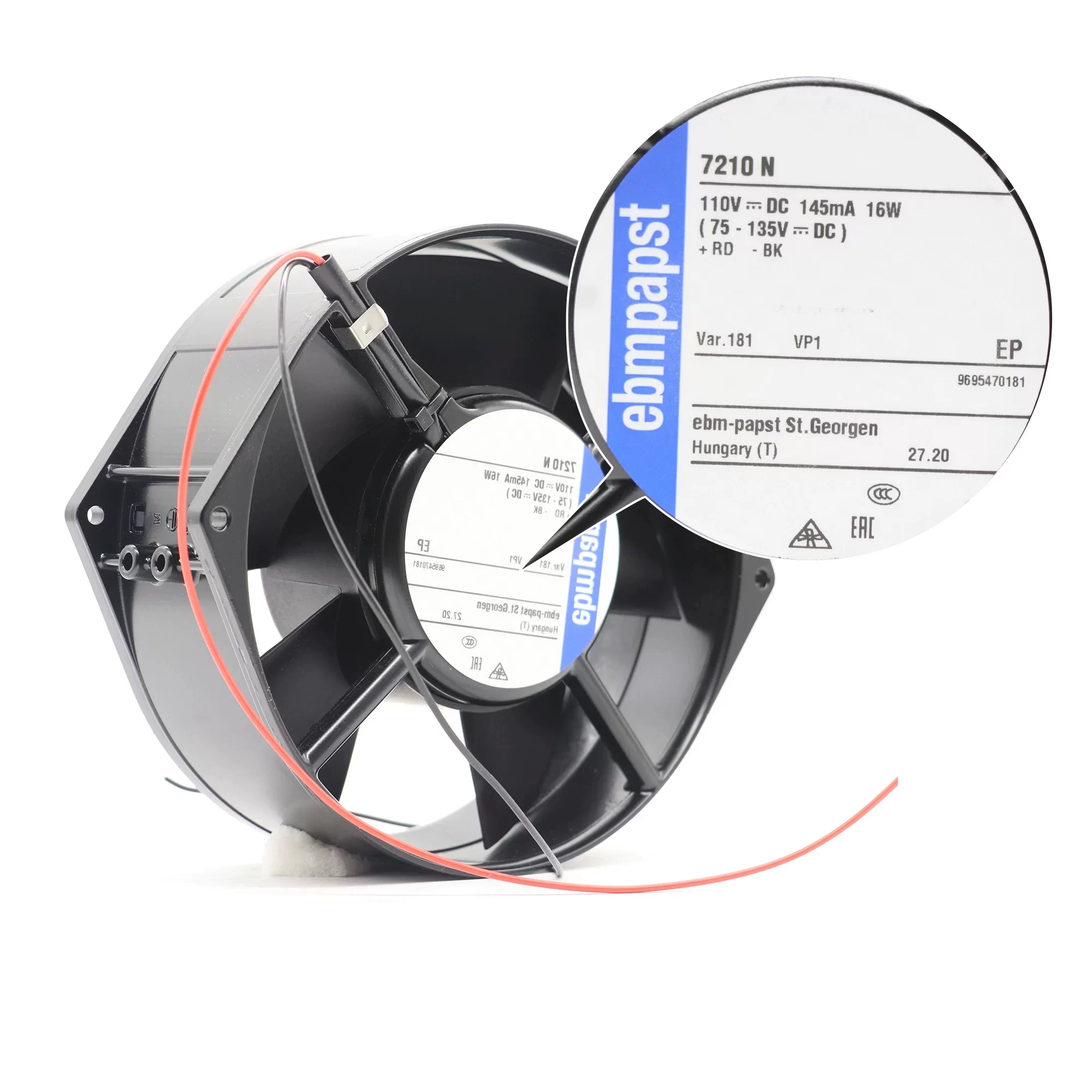

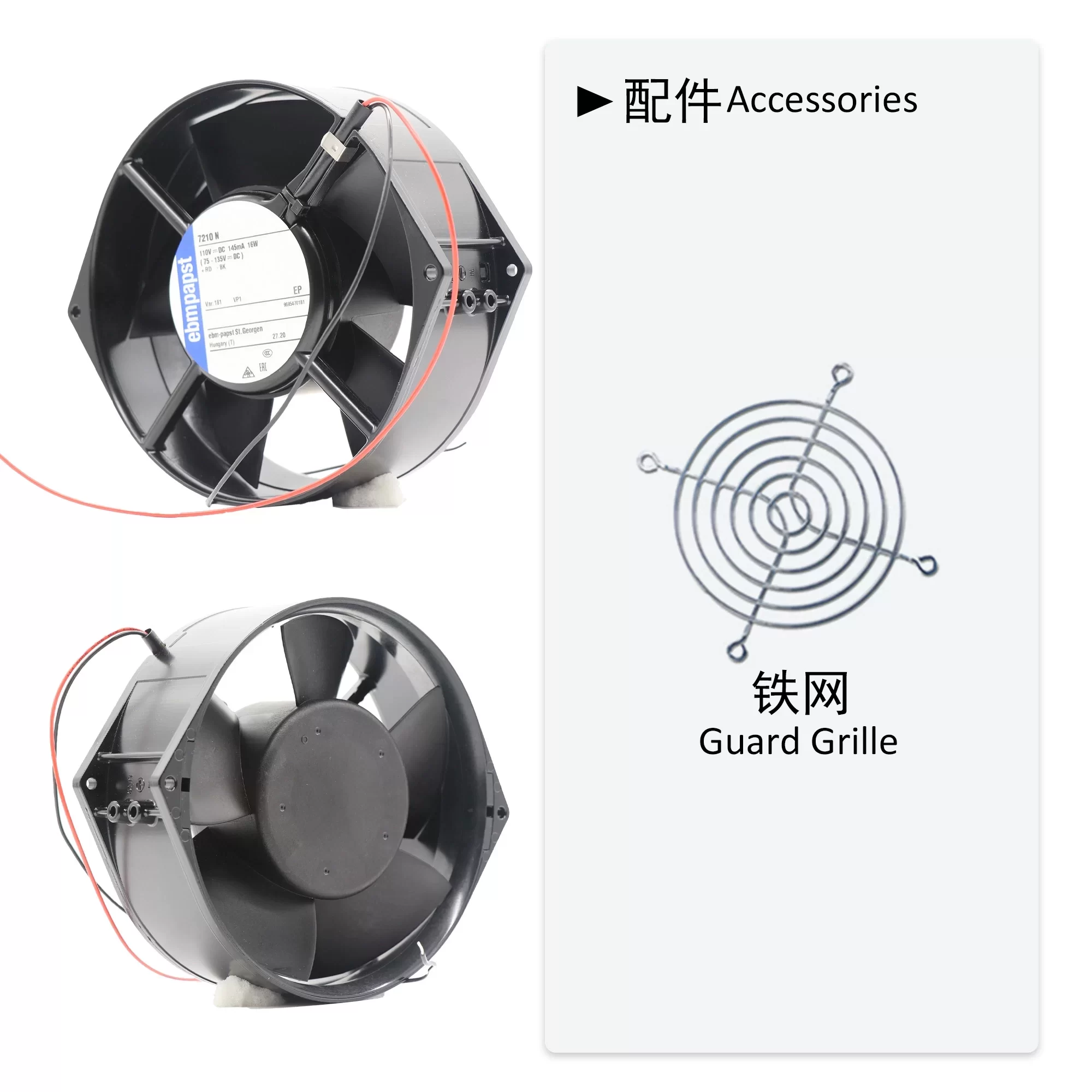

7210N-181 ebmpapst 110V AC Axial Fan

Description

The ebmpapst 7210N-181 is a robust 110VAC Axial Fan measuring 172x150x55mm, designed for various cooling and air movement applications. Operating across a wide voltage range of 75VAC to 135VAC, this fan consumes 16W of power while drawing 145mA of current. It achieves a speed of 3050RPM and delivers 160Pa of static pressure with a noise level of 53dB(A). Constructed with a metal housing and a plastic impeller, the 7210N-181 features durable ball bearings. Weighing 0.725kg, it uses 2-wire leads for electrical connection. This fan is designed to operate reliably within an ambient temperature range of -25°C to 75°C and holds EAC approval, making it suitable for industrial machinery, control panels, power supplies, and other systems requiring effective air circulation in challenging environments.

7210N-181 Fan Parameters
Model: 7210N-181
Manufacturer: ebmpapst
Type: AC Axial Fan
Dimensions: 172 x 150 x 55 mm
Nominal Voltage: 110 V AC
Operating Voltage Range: 75 – 135 V AC
Rated Current: 145 mA
Power Consumption: 16 W
Speed: 3050 RPM
Static Pressure: 160 Pa
Noise Level: 53 dB(A)
Weight: 0.725 kg
Bearing Type: Ball Bearing
Housing Material: Metal
Impeller Material: Plastic
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 75 °C
Termination: 2-wire leads
Approval: EAC
Application: Industrial machinery, control panels, power supplies, and other systems requiring effective air circulation.
