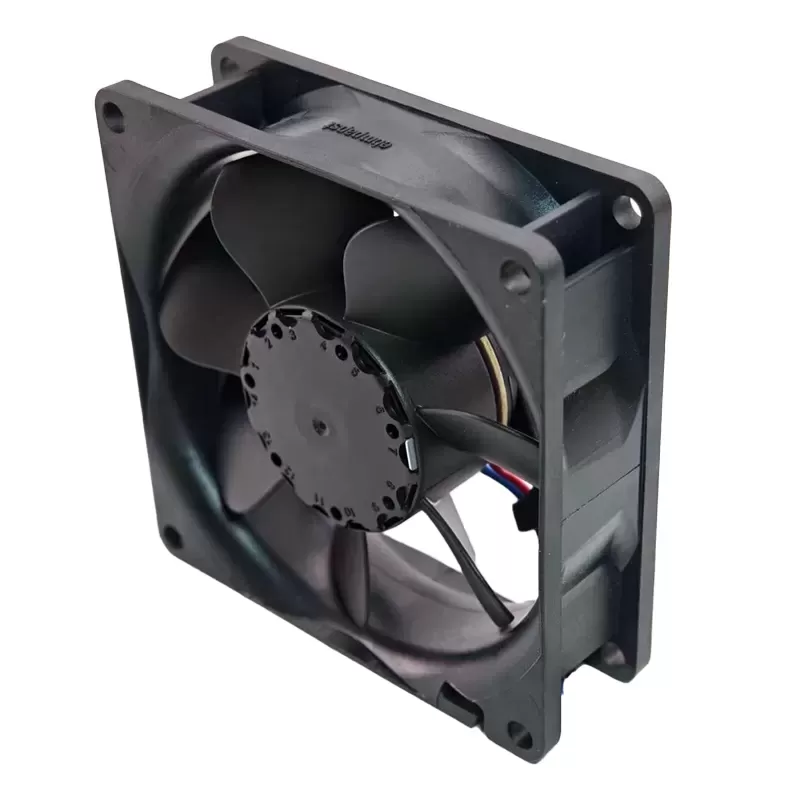

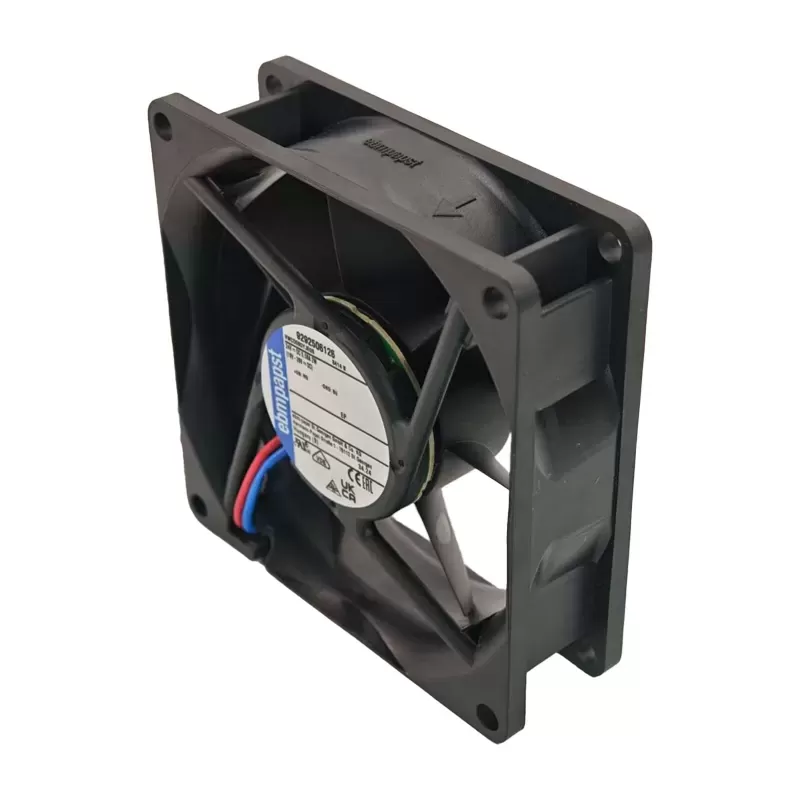

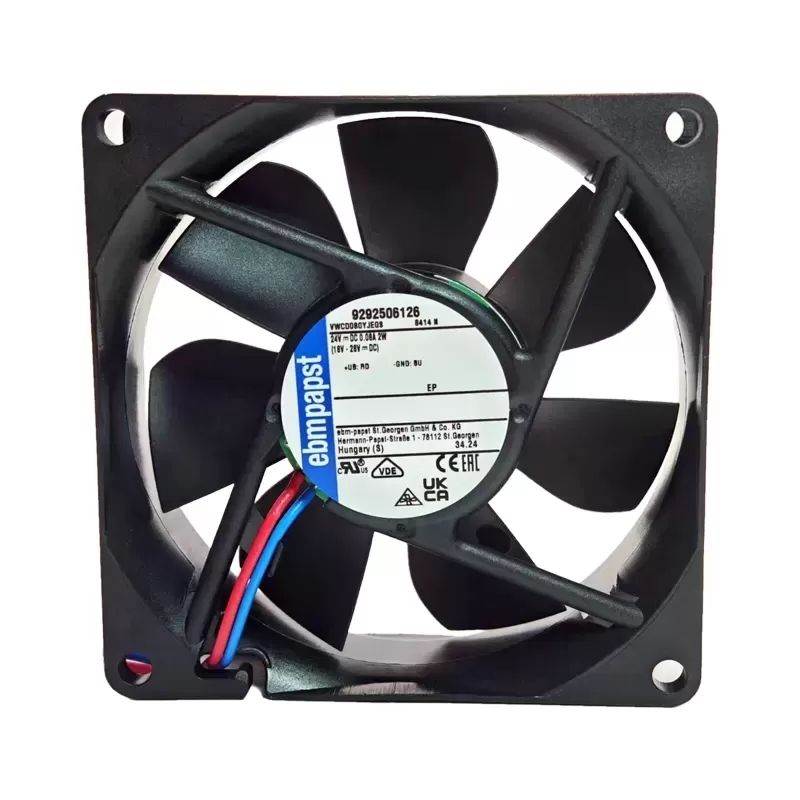

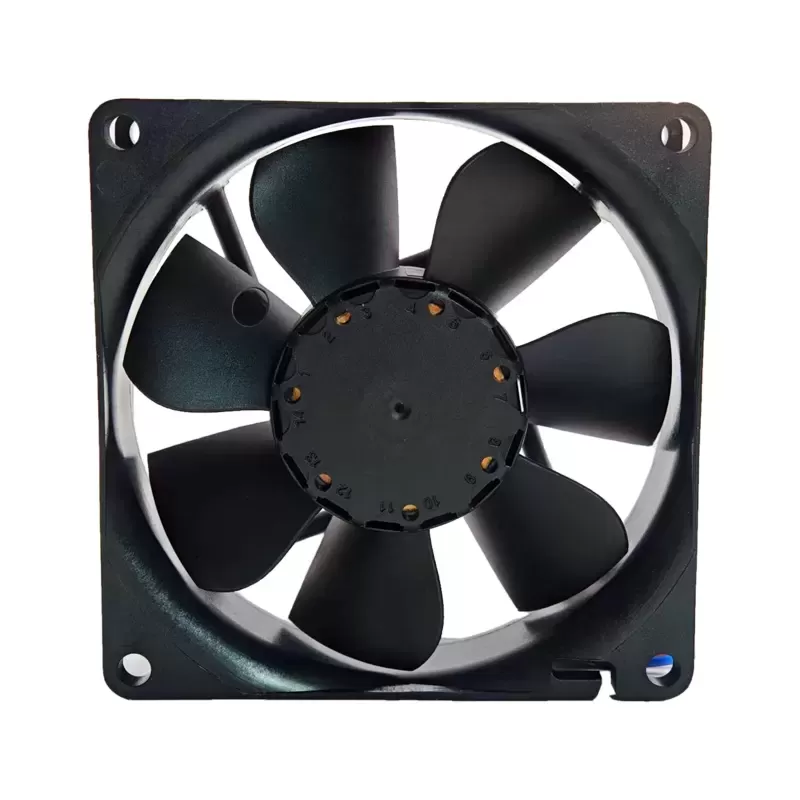

8414N ebmpapst 24V 85mA 2.0W DC inverter fan

$39.28

SKU: 8414N
Tag:

Description

The ebmpapst 8414N is a compact 80x80x25mm DC axial fan engineered for efficient cooling in a wide range of electronic and industrial applications. Operating on a 24V DC power supply, this fan precisely consumes 1.8W of power. It achieves a rotational speed of 3100 RPM, delivering an airflow of 40.6 CFM (69 m³/h) and generating a sound pressure level of 32 dB(A). Utilizing ball bearings, this model offers a long operational life of 70,000 hours at 40°C and includes electronic protection against reverse polarity, blocking, and overloading. Its robust design and quiet operation make it suitable for various equipment requiring reliable thermal management.

8414N Fan Parameters
Model Number: 8414N
Manufacturer: ebmpapst
Type: DC Axial Fan
Dimensions: 80mm x 80mm x 25mm
Rated Voltage: 24 VDC
Voltage Range: 18 VDC to 28 VDC
Rated Power: 1.8 W
Speed: 3100 RPM
Airflow: 40.6 CFM (69 m³/h)
Noise Level: 32 dB(A)
Bearing Type: Ball Bearing
Impeller Material: Fiberglass-reinforced PA plastic
Housing Material: Fiberglass-reinforced PBT plastic
Wiring: 2 Wire Leads (single strands, bared and tin-plated)
Weight: 0.095 kg
Operating Temperature: -20°C to +70°C
Life Expectancy (L10): 70,000 hours at 40°C
Features: Protected against reverse polarity, blocking, and overloading; Locked-rotor protection.
Certification: VDE, CSA, UL, CE
Application: Electronics cooling, control cabinets, power supplies, general ventilation.
New ebmpapst 8414N 8025 24V 85mA 2.0W DC silent inverter cooling fan
Model:8414N
Size:80*80*25mm
Voltage:24V
Current/power:85mA 2.0w
Air volume: 69m3/h
Speed: 310ORPM
Noise:32dBA
Lifespan:50000h
Weight:0.095KG
Bearing structure: ball bearing
Wiring method: lead type
Temperature range:-20~70C
Frame leaf:glass fiber reinforced plastic

8414N ebmpapst 24V 85mA 2.0W DC inverter fan
8414N ebmpapst 24V 85mA 2.0W DC inverter fan
8414N ebmpapst 24V 85mA 2.0W DC inverter fan
8414N ebmpapst 24V 85mA 2.0W DC inverter fan
8414N ebmpapst 24V 85mA 2.0W DC inverter fan
8414N ebmpapst 24V 85mA 2.0W DC inverter fan
8414N ebmpapst 24V 85mA 2.0W DC inverter fan
