Description

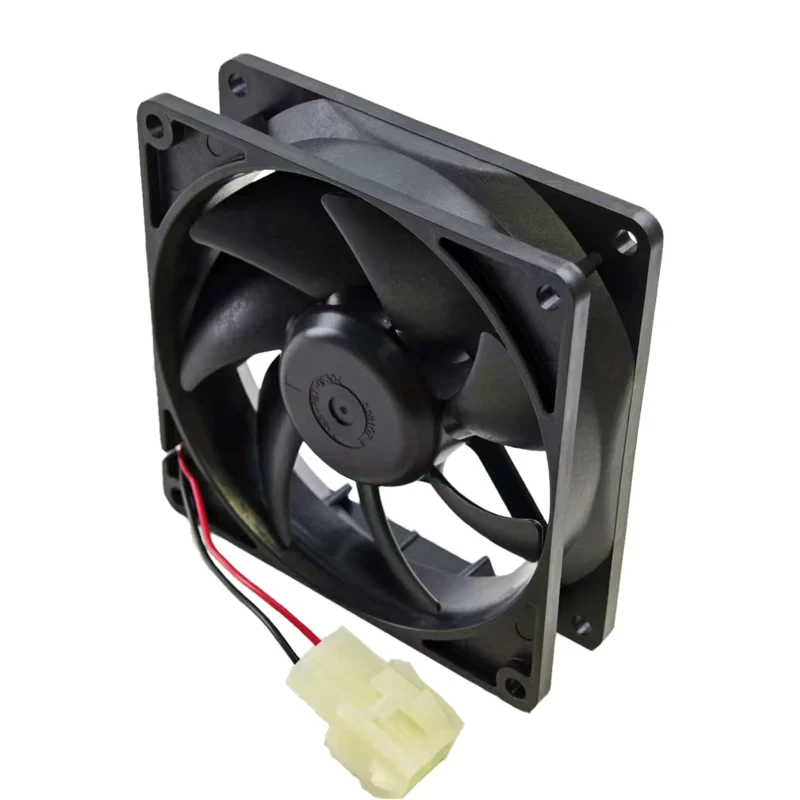

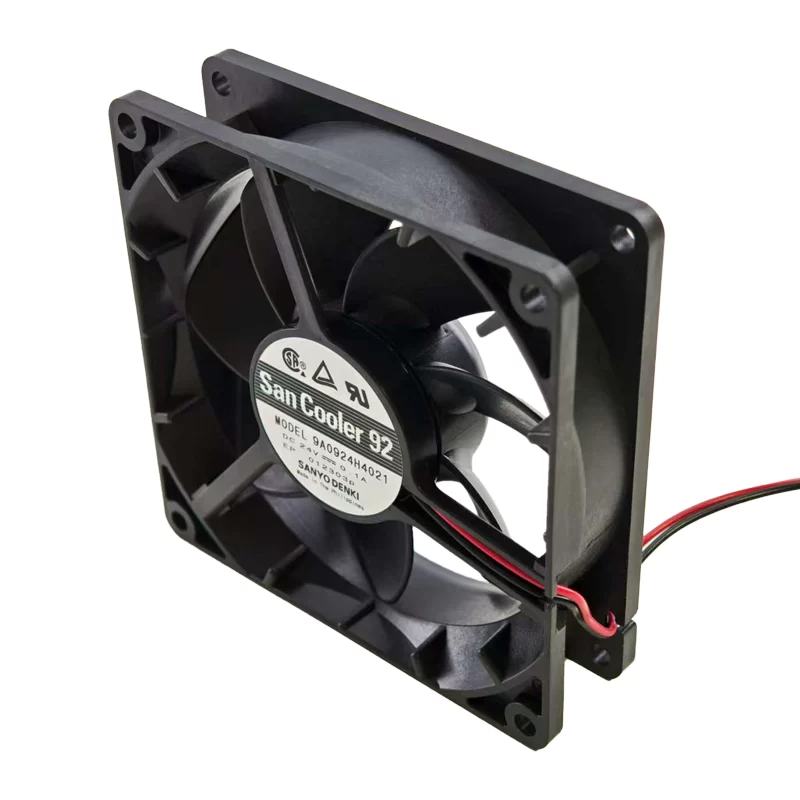

The Sanyo Denki 9A0924H4021 is a 24VDC axial fan with dimensions of 92x92x25mm. It is engineered for controlled performance, providing 51.2CFM (87.0m³/h) of airflow and 0.177inchH₂O (44Pa) of static pressure at a speed of 3150RPM. The fan consumes 2.4W of power and draws 0.1A of current. It is equipped with ball bearings and features a 7-bladed impeller and plastic construction. The fan uses a two-wire termination for basic power connection and is protected against reverse polarity and locked rotor conditions. It is commonly used for cooling components in control cabinets, telecommunications systems, and server racks.
9A0924H4021 Fan Parameters
Manufacturer: Sanyo Denki
Model: 9A0924H4021
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 24 VDC
Nominal Voltage Range: 14 ~ 28 VDC
Current Rating: 0.1 A
Power Consumption: 2.4 W
Airflow: 51.2 CFM (87.0 m³/h)
Static Pressure: 0.177 inch H₂O (44 Pa)
Speed: 3150 RPM
Noise Level: 33 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Features: Locked rotor protection, Protected against reverse polarity
Housing Material: Plastic (PBT)
Impeller Material: Plastic (PA)
Impeller Blades: 7
Operating Temperature: -20 °C ~ 70 °C
Lifetime @ Temp: 60,000 Hours @ 40 °C
Weight: 100 g
Application: This Sanyo Denki DC axial fan is suitable for cooling control cabinets, telecommunications systems, and server racks.
