Description

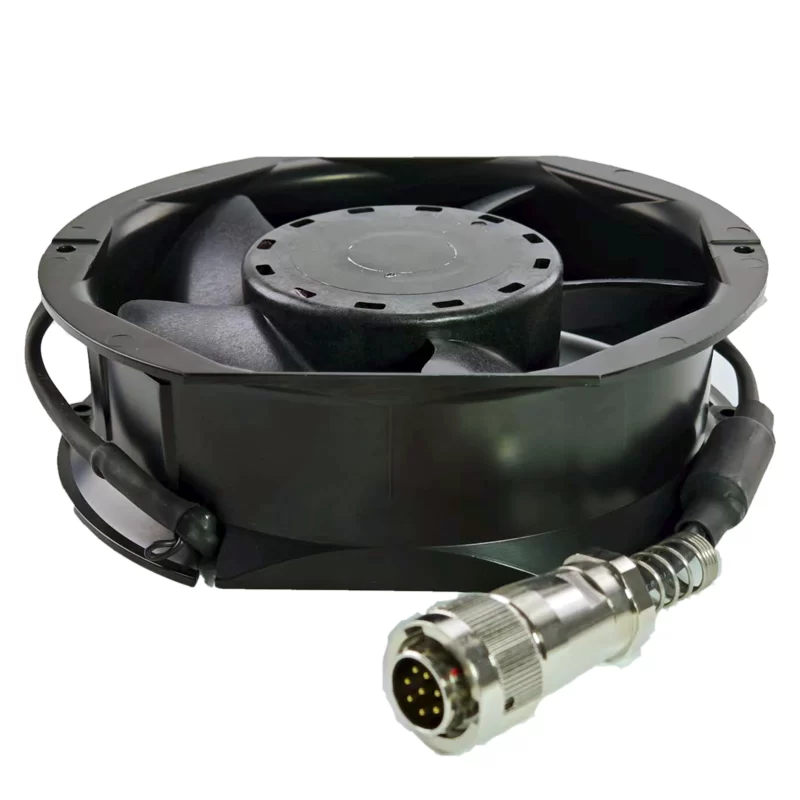

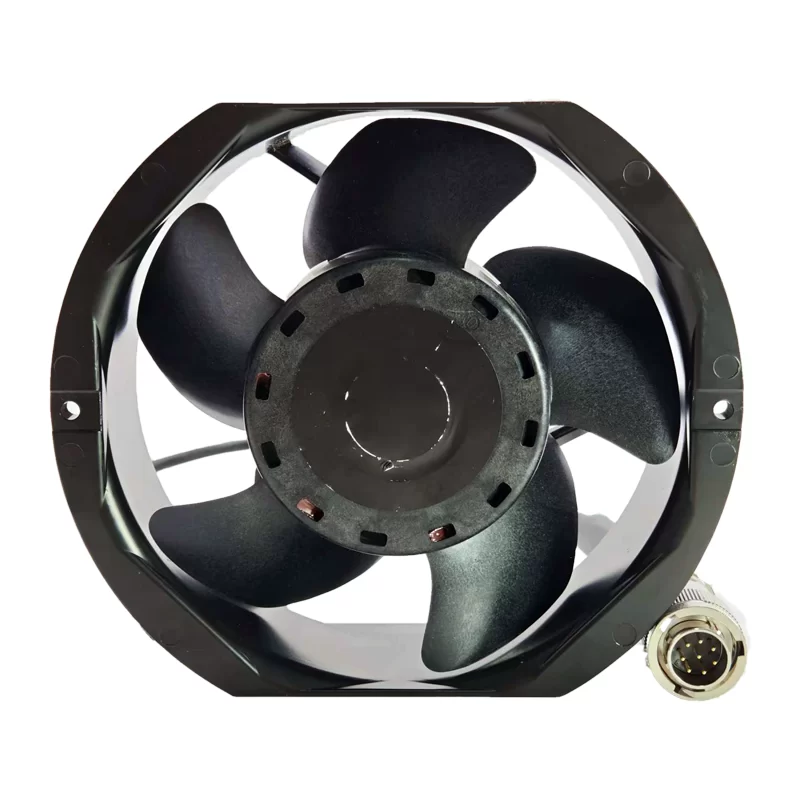

The Sanyo Denki 9EB5748P5K03 is a 48V DC Axial Fan with dimensions of 172x150x50mm, belonging to the SanAce172 series. It draws 0.7A (33.6W), spins at 4100RPM, and delivers a powerful airflow of 513.6m³/h (302.29CFM), while producing a noise level of 60dB(A). This fan features durable ball bearings, and its frame and impeller are constructed from plastic. It includes motor protection against locked rotor and reverse polarity, and comes with a 4-wire termination that supports PWM control and provides a pulse sensor output for precise speed management. It is an ideal choice for high-performance cooling in large servers, data centers, power supplies, and telecommunication equipment requiring substantial airflow.
9EB5748P5K03 Fan Parameters
Model: 9EB5748P5K03
Manufacturer: Sanyo Denki
Type: DC Axial Fan
Dimensions: 172 x 150 x 50 mm
Nominal Voltage: 48 V DC
Operating Voltage Range: 36 .. 57.6 V DC
Rated Current: 0.7 A
Power Consumption: 33.6 W
Speed: 4100 RPM
Airflow: 513.6 m³/h (302.29 CFM)
Static Pressure: Not specified
Noise Level: 60 dB(A)
Weight: 1500 g
Bearing Type: Ball Bearing
Frame Material: Plastic (UL94V-0 PBT)
Impeller Material: Plastic (UL94V-0 PBT)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Life Expectancy: 40000 h at 60°C
Series: SanAce172
Termination: 4-wire leads
Motor Protection: Locked Rotor Burnout Protection, Reverse Polarity Protection
Features: PWM Control, Pulse Sensor
Approval: UL, CSA, TUV, CE
Application: Large servers, data centers, telecommunication base stations, power supplies, and other high-density electronic equipment requiring robust cooling solutions.
