Description

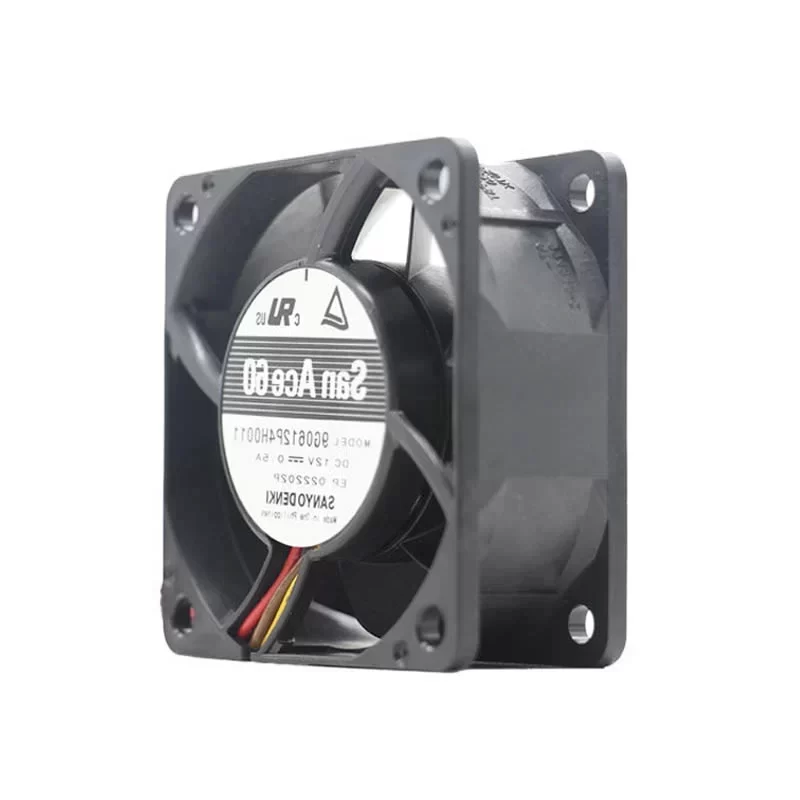

The Sanyo Denki 9G0612P4H0011 is a high-performance 12VDC axial fan with dimensions of 60 x 60 x 25 mm, specifically engineered for high-density thermal management in industrial and server environments. As part of the San Ace 60 (9G type) series, this cooling solution features a robust plastic frame and a specialized 9-blade high-efficiency impeller (UL 94V-0), optimized for superior aerodynamic throughput and high static pressure. It operates at a rated speed of 9,500 RPM, delivering a maximum air flow of 42.7 CFM (72.6 m3/h) and a significant static pressure of 0.9 inH2O (224 Pa). Equipped with a high-precision dual ball bearing system and PWM control functionality, the 9G0612P4H0011 allows for precise speed modulation and ensures a reliable service life of 70,000 hours at 40°C. This model is characterized by its high power-to-size ratio and integrated speed monitoring, making it a critical component for 1U/2U servers, telecommunications hardware, and high-wattage power supplies.
9G0612P4H0011 Fan Parameters
Manufacturer: Sanyo Denki
Model Number: 9G0612P4H0011
Type: DC Axial Fan
Series: San Ace 60 (9G type)
Dimensions: 60 x 60 x 25 mm
Weight: 90 g
Frame Material: Plastic
Impeller Material: Plastics (UL 94V-0)
Bearing Type: Dual Ball Bearing
Number of Blades: 9
Rated Voltage: 12 VDC
Operating Voltage Range: 10.2 – 13.8 VDC
Rated Current: 0.5 A
Rated Input Power: 6 W
Rated Speed: 9,500 RPM
Max. Air Flow: 42.7 CFM (72.6 m3/h / 1.21 m3/min)
Max. Static Pressure: 0.9 inH2O (224 Pa / 22.8 mmH2O)
Sound Pressure Level: 49 dB(A)
Termination: 4 Lead Wires (300 mm)
Wire Functions: Red (+), Black (-), Yellow (Tachometer), Brown (PWM)
Control Interface: PWM Control / Pulse Sensor
Operating Temperature: -20 – +70 °C
Storage Temperature: -30 – +70 °C
Expected Life: 70,000 h (at 40 °C) / 40,000 h (at 60 °C)
Locked Rotor Protection: Supported
Reverse Polarity Protection: Supported
Safety Approvals: UL, CSA, TUV, RoHS
Application
The Sanyo Denki 9G0612P4H0011 high-speed axial fan is specifically designed for cooling 1U/2U server chassis, high-density network switches, telecommunications rectifiers, industrial frequency converters, and high-wattage power supplies where compact size and high airflow are required.
