Description

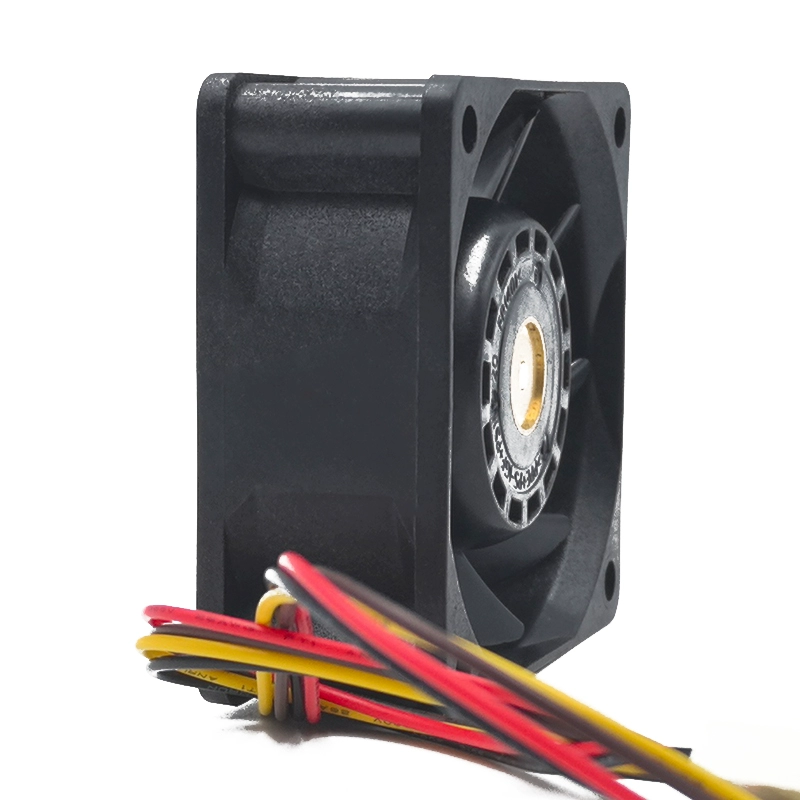

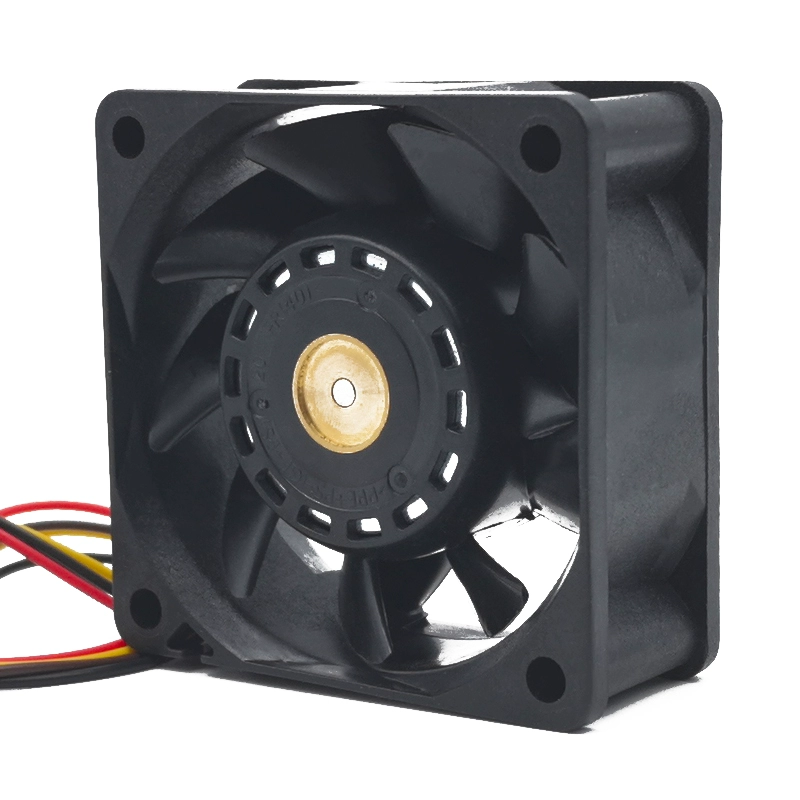

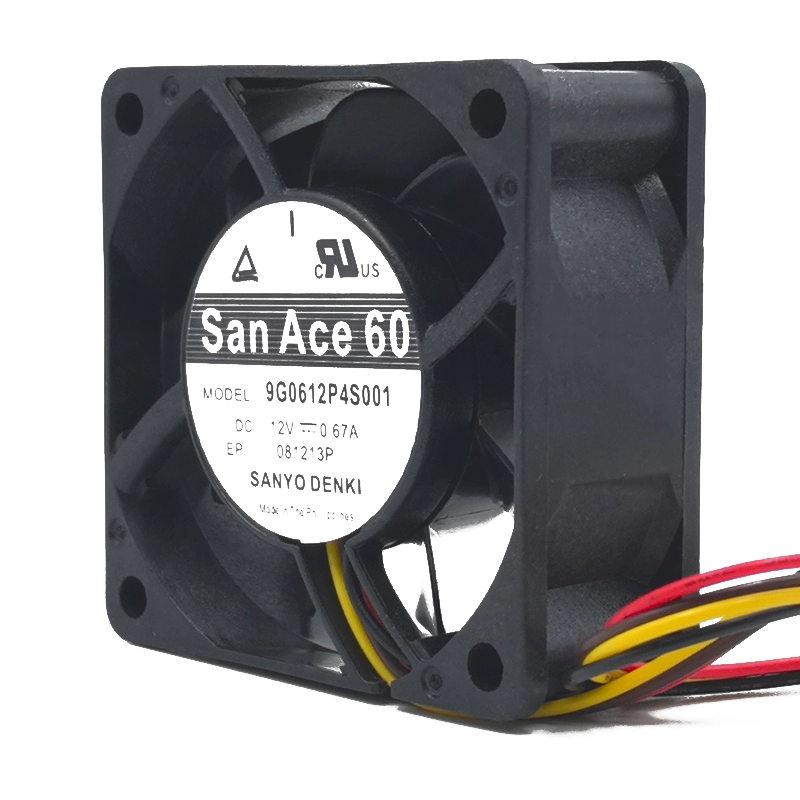

The Sanyo Denki 9G0612P4S001 is a DC axial cooling fan measuring 60x60x25mm. It operates on 12 VDC, drawing 0.67 A of current, with a power consumption of 8.04 W. This fan achieves a speed of 5400 RPM, providing an airflow of 23.3 CFM with a static pressure of 0.29 inch H2O. The noise level is 35 dB(A). It weighs 65 g. It features a ball bearing for durable operation, a pulse sensor, and PWM control function for external speed regulation, making it suitable for compact electronic devices, servers, and other applications requiring efficient cooling. It uses 4-wire Leads for connection.
9G0612P4S001 Fan Parameters
Model: 9G0612P4S001
Manufacturer: Sanyo Denki
Type: DC Cooling Fan
Dimensions: 60x60x25 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 6-13.2 V
Rated Current: 0.67 A
Power Consumption: 8.04 W
Speed: 5400 RPM
Airflow: 23.3 CFM
Static Pressure: 0.29 inch H2O
Noise Level: 35 dB(A)
Bearing Type: Ball Bearing
Termination: 4-wire Leads
Features: Pulse Sensor, PWM Control Function
Weight: 65 g
Expected Life: 40000 Hrs at 60°C (70000 Hrs at 40°C)
Operating Temperature: -10 to 70°C
Application: Compact electronic devices, servers, general cooling applications.
