9GA0612P1J63 Sanyo Denki 12V DC Axial Fan

Description

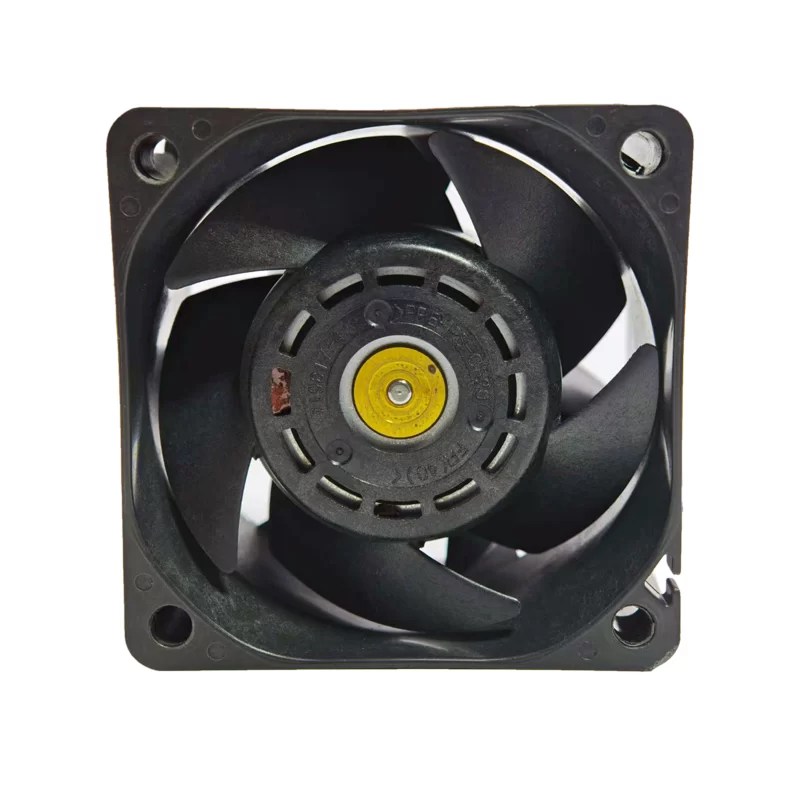

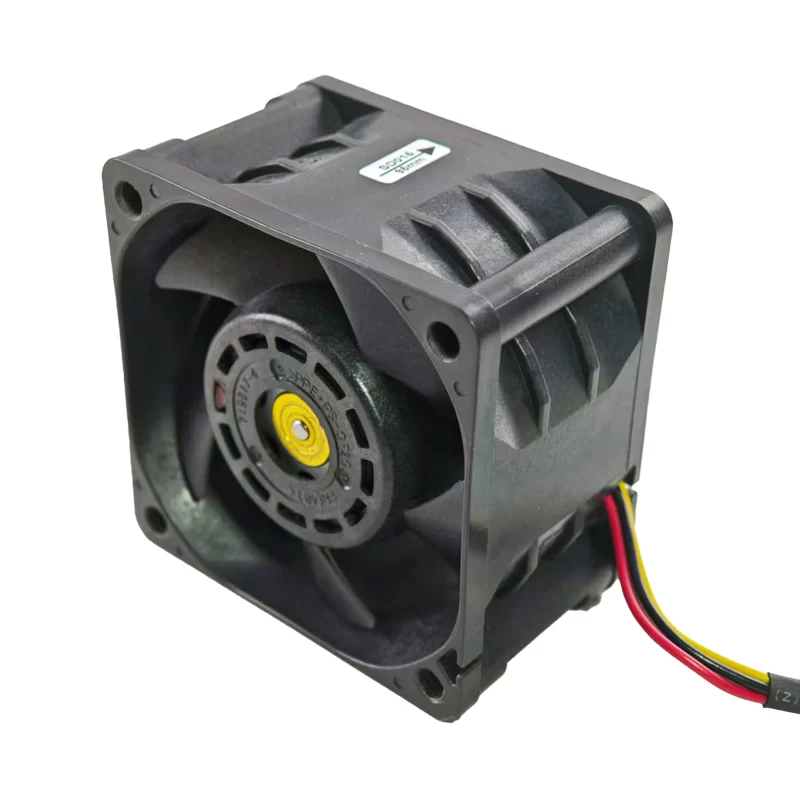

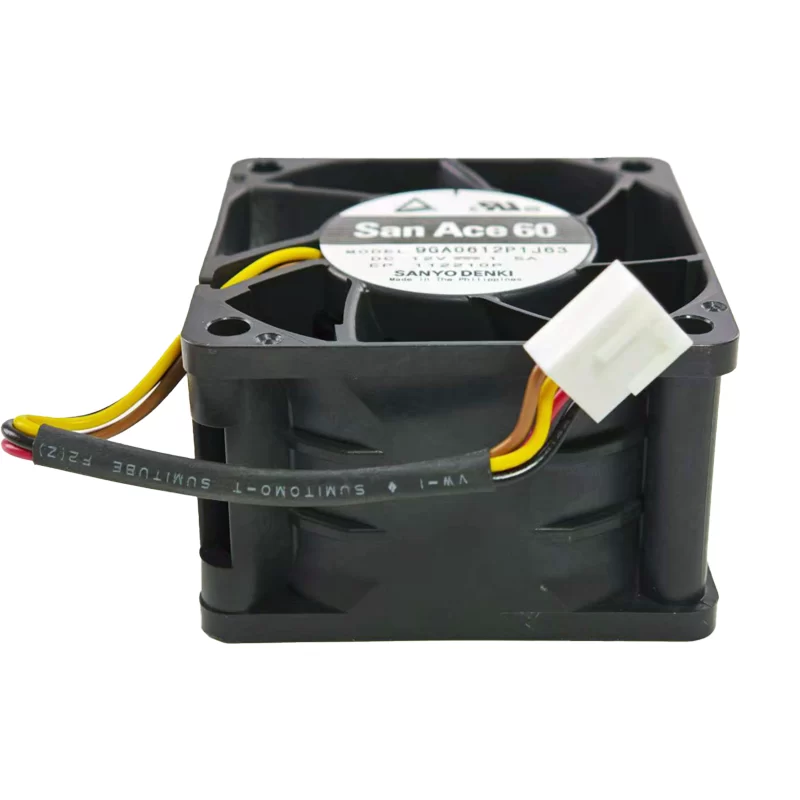

The Sanyo Denki 9GA0612P1J63 is a 12V DC Axial Fan with dimensions of 60x60x38mm, belonging to the SanAce60 series. It draws 1.5A (18W). This fan features durable ball bearings, and its frame and impeller are constructed from plastic. It includes motor protection against locked rotor and reverse polarity, and comes with a 4-wire termination that supports PWM control and provides a pulse sensor output for precise speed management. It is an ideal choice for high-performance cooling in compact servers, communication equipment, industrial control systems, and any application requiring powerful and controllable airflow in a compact form factor.

9GA0612P1J63 Fan Parameters
Model: 9GA0612P1J63
Manufacturer: Sanyo Denki
Type: DC Axial Fan
Dimensions: 60 x 60 x 38 mm
Nominal Voltage: 12 V DC
Operating Voltage Range: 6.0 .. 13.8 V DC
Rated Current: 1.5 A
Power Consumption: 18 W
Bearing Type: Ball Bearing
Frame Material: Plastic (UL94V-0 PBT)
Impeller Material: Plastic (UL94V-0 PBT)
Min. Ambient Temperature: -10 °C
Max. Ambient Temperature: 70 °C
Life Expectancy: 40000 h at 60°C
Series: SanAce60
Termination: 4-wire leads
Motor Protection: Locked Rotor Burnout Protection, Reverse Polarity Protection
Features: PWM Control, Pulse Sensor
Approval: UL, CSA, TUV, CE
Application: Compact servers, communication equipment, industrial control systems, medical devices, high-density electronic enclosures, and applications requiring high static pressure.
