Description

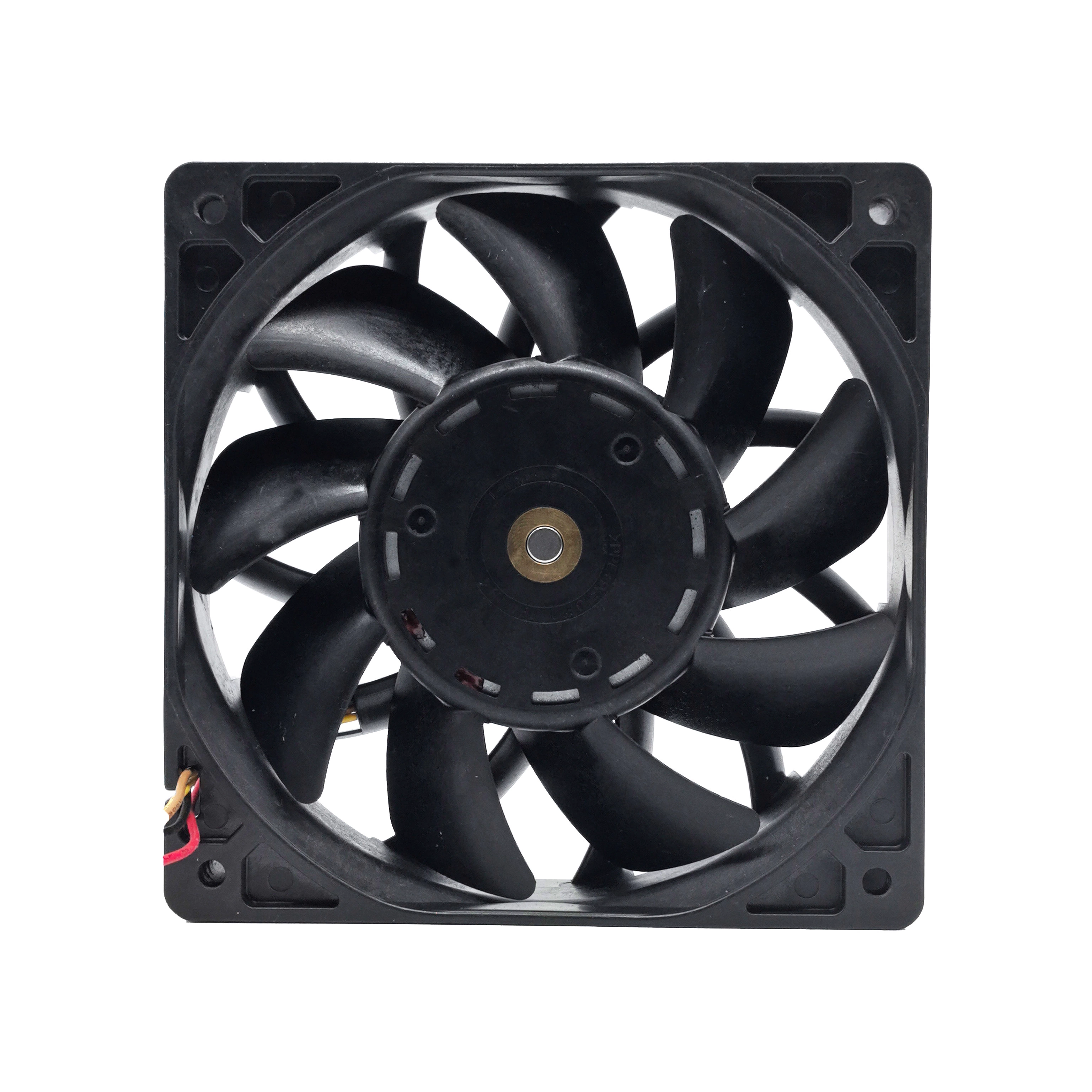

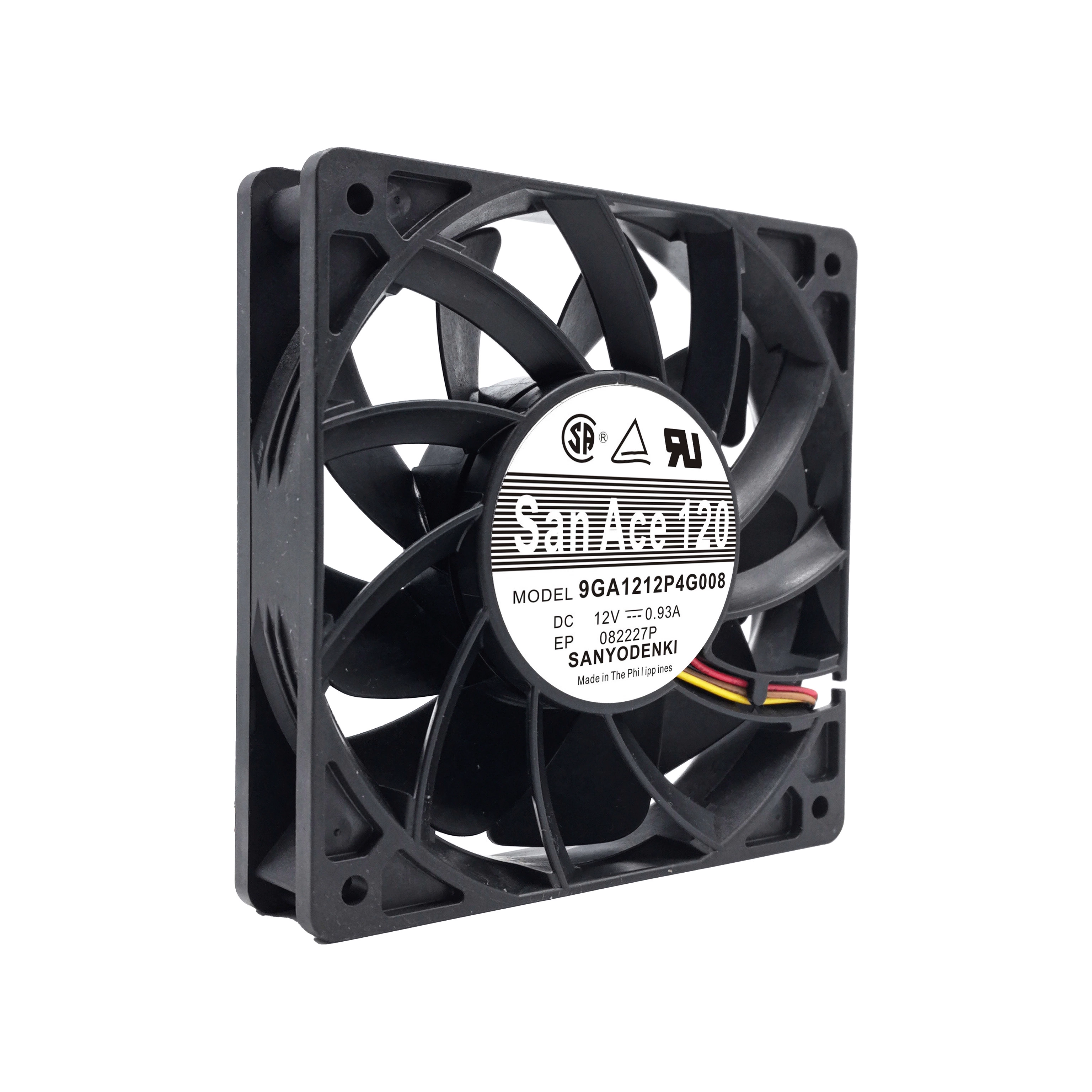

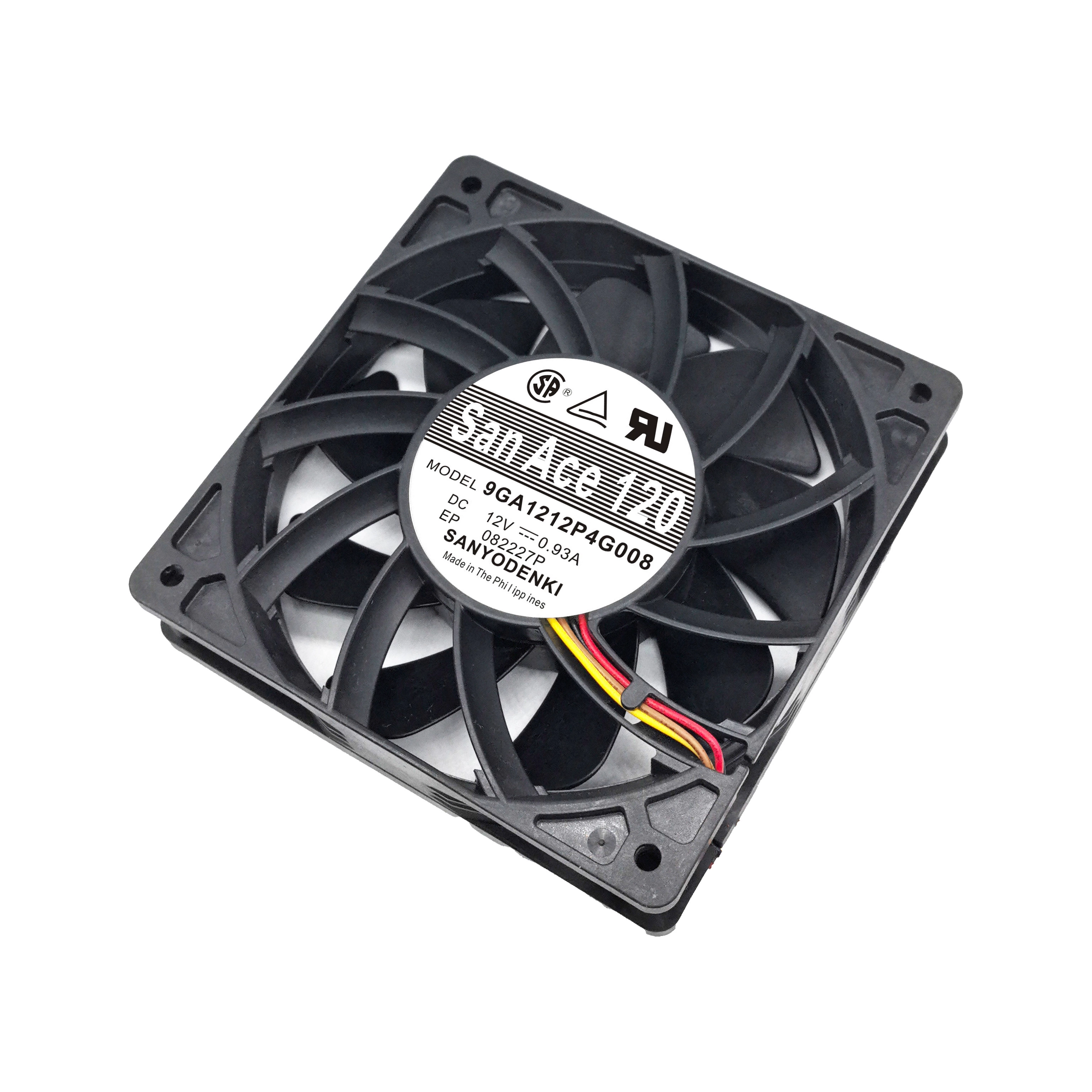

The Sanyo Denki 9GA1212P4G008 is a DC axial cooling fan measuring 120x120x38mm. It operates on 12 VDC, drawing 0.93 A of current, with a power consumption of 11.16 W. This fan achieves a speed of 4000 RPM, providing an airflow of 134.2 CFM with a static pressure of 0.63 inch H2O. The noise level is 57 dB(A). It features a ball bearing for durable operation, a pulse sensor, and PWM control function for external speed regulation, making it suitable for industrial equipment, servers, and other high-performance cooling applications. It uses 4-wire Leads for connection.
9GA1212P4G008 Fan Parameters
Model: 9GA1212P4G008
Manufacturer: Sanyo Denki
Type: DC Cooling Fan
Dimensions: 120x120x38 mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8-13.2 V
Rated Current: 0.93 A
Power Consumption: 11.16 W
Speed: 4000 RPM
Airflow: 134.2 CFM
Static Pressure: 0.63 inch H2O
Noise Level: 57 dB(A)
Bearing Type: Ball Bearing
Termination: 4-wire Leads
Features: Pulse Sensor, PWM Control Function
Weight: 280 g
Expected Life: 40000 Hrs at 60°C (70000 Hrs at 40°C)
Operating Temperature: -20 to 70°C
Application: Industrial equipment, servers, high-performance cooling.
