Description

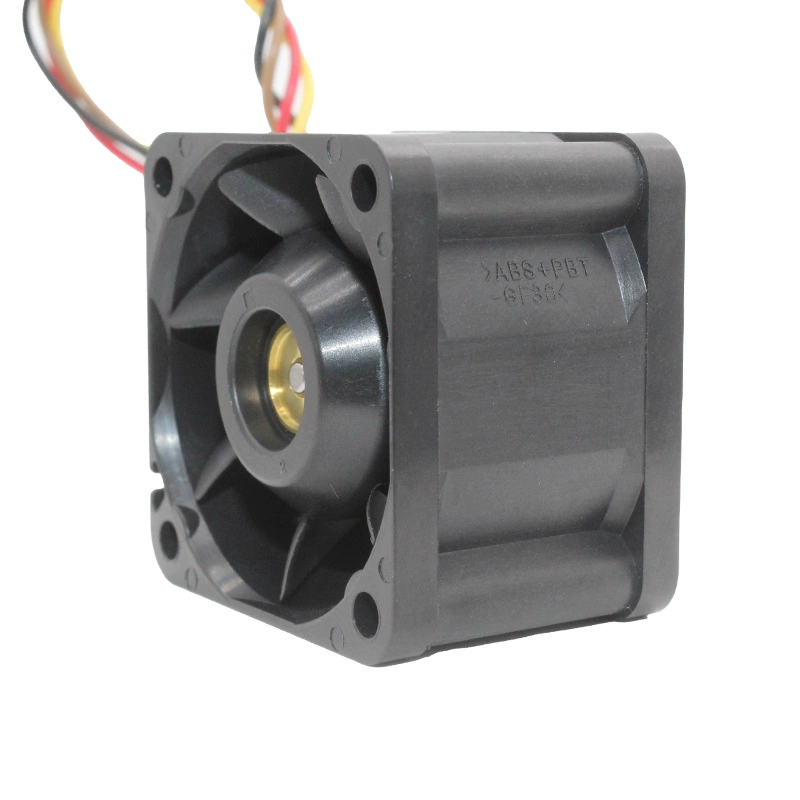

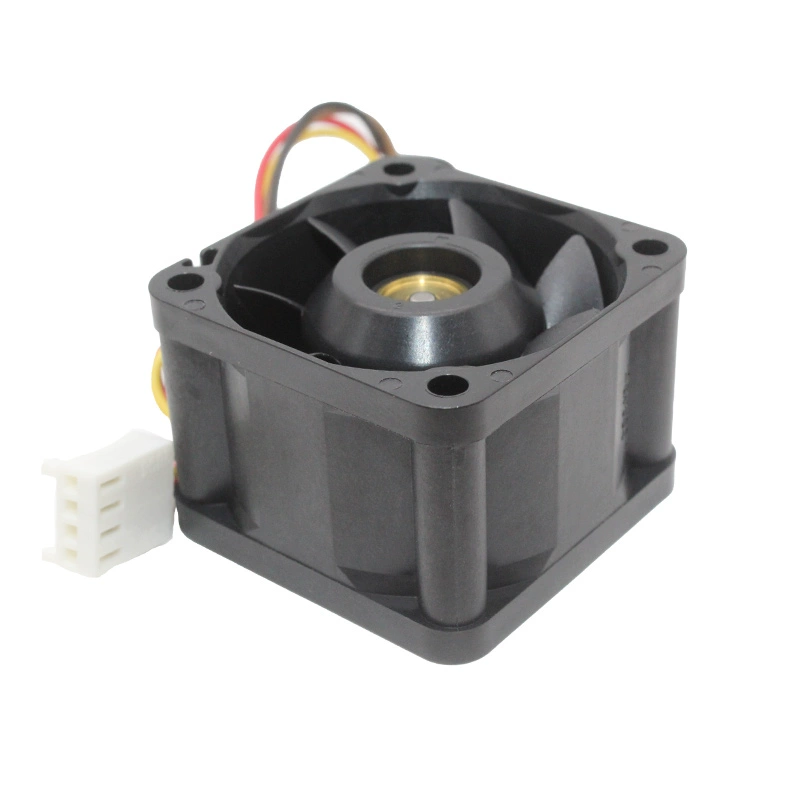

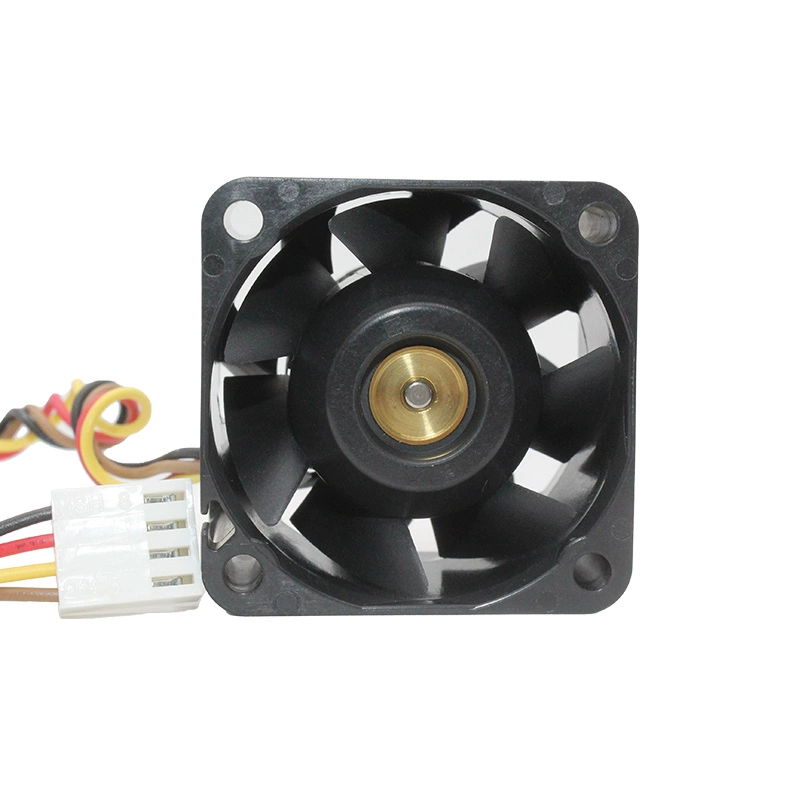

The Sanyo Denki 9GV0412P3K10 is an extremely high-performance 12V DC axial cooling fan from Sanyo Denki’s San Ace 40 series, measuring 40mm x 40mm x 28mm. This fan is engineered for maximum heat dissipation in highly constrained and demanding environments. Operating at a rated current of 0.84A (10.08W), it achieves an exceptionally high rotational speed of 15800 RPM, delivering an impressive 21.2 CFM of airflow with a significant static pressure of 1.48 inch-H2O (368 Pa). Its noise level is 57.0 dBA, reflecting its powerful performance. Equipped with durable ball bearings, it offers a long operational life of 40,000 hours at 60°C. The fan typically utilizes 4-wire leads, which include a pulse sensor (tachometer) output for real-time speed monitoring and a PWM input for precise speed control, along with locked rotor protection and reverse polarity protection, ensuring robust and controlled performance in critical cooling applications.
Model Number: 9GV0412P3K10
Manufacturer: Sanyo Denki
Series: San Ace 40
Type: DC Axial Cooling Fan
Dimensions: 40mm x 40mm x 28mm
Rated Voltage: 12V DC
Operating Voltage: 8V to 13.8V DC
Rated Current: 0.84A
Rated Power: 10.08W
Speed: 15800 RPM
Airflow: 21.2 CFM / 0.60 m³/min
Static Pressure: 1.48 inch-H2O / 368 Pa
Noise Level: 57.0 dBA
Connector: 4-Wire Leads (with PWM and Pulse Sensor)
Bearing Type: Ball Bearing
Life Expectancy: 40,000 hours at 60°C (L10)
Operating Temperature: -20°C to 70°C
Frame Material: Plastic (UL 94V-0)
Impeller Material: Plastic (UL 94V-0)
Features: PWM Control, Pulse Sensor (Tachometer Output), Locked Rotor Protection, Reverse Polarity Protection
