Description

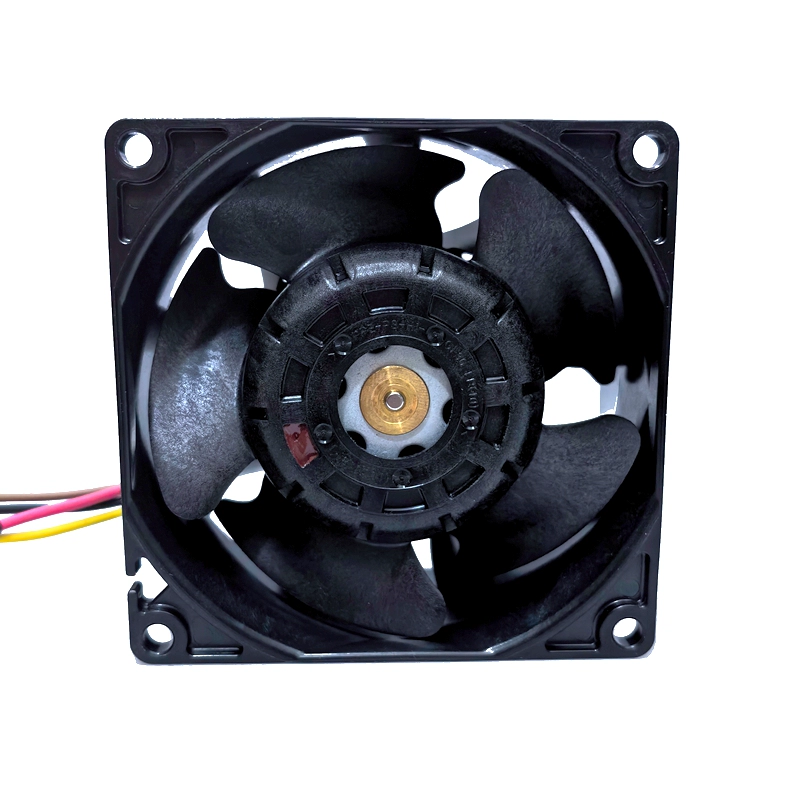

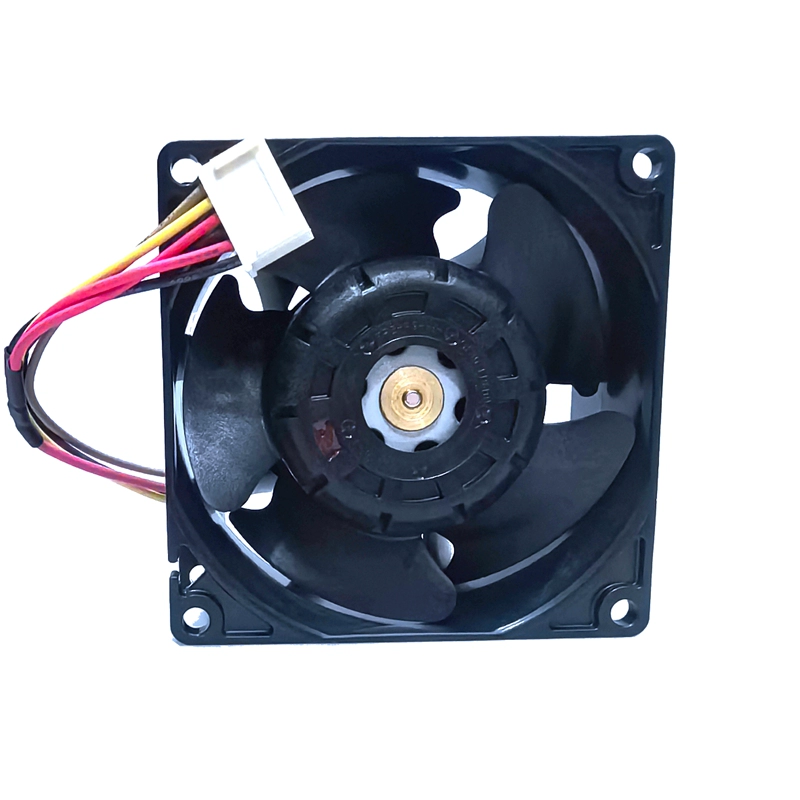

The Sanyo Denki 9HVB0812P1G0031 is an 80x80x38mm DC axial fan engineered for applications requiring extremely high airflow and static pressure in a compact form. Operating on 12 VDC within a typical voltage range of 10.8–12.6 VDC, this fan draws 4.8A of current, consuming 57.6W of power. It achieves a very high rotational speed of 18300 min-1, delivering a substantial airflow of 4.0 m³/min (141.3 CFM), and an impressive static pressure of 1600 Pa (6.42 inch H2O). With a high noise level of 75 dB(A), indicative of its powerful performance, and utilizing durable ball bearings, it ensures robust and efficient cooling. This model features 4-wire leads for connection, including a pulse sensor (tachometer output) and PWM control for precise speed adjustment. Built with a plastic frame and often featuring ribbed sides, it is ideal for cooling high-density equipment such as servers, data storage systems, and routers.
9HVB0812P1G0031 Fan Parameters
Model Number: 9HVB0812P1G0031
Manufacturer: Sanyo Denki
Series: San Ace 80 9HVB
Type: DC Axial Fan
Dimensions: 80mm x 80mm x 38mm
Rated Voltage: 12 VDC
Operating Voltage Range: 10.8–12.6 VDC
Rated Current: 4.8A
Power Consumption: 57.6 W
Speed: 18300 min-1
Airflow: 4.0 m³/min (141.3 CFM)
Static Pressure: 1600 Pa (6.42 inch H2O)
Noise Level: 75 dB(A)
Bearing Type: Ball Bearing
Frame Material: Plastic (Flammability: UL 94V-0)
Blade Material: Plastic (Flammability: UL 94V-1)
Termination: 4-Wire Leads
Control Features: PWM Control, Pulse Sensor (Tachometer output)
Protection Features: Locked rotor burnout protection, Reverse polarity protection
Expected Life: 40,000 hours @ 60°C (70,000 hours @ 40°C)
Operating Temperature: -20°C to +70°C
Mass: 230 g
Application: Servers, data storage systems, routers, telecommunications equipment, power supplies, mining equipment, and any high-density electronic applications requiring extreme static pressure and airflow.
