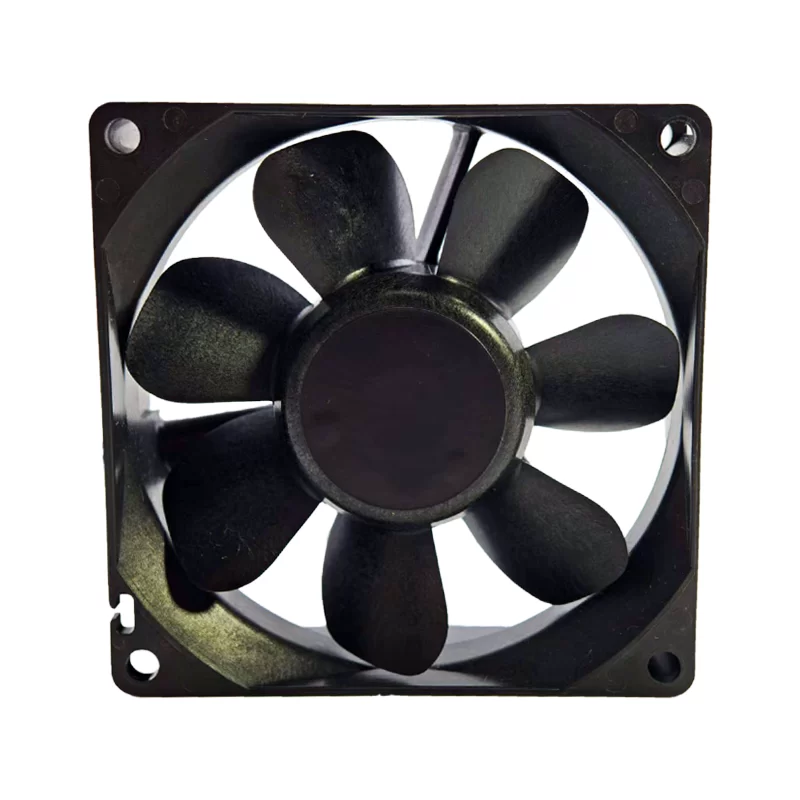

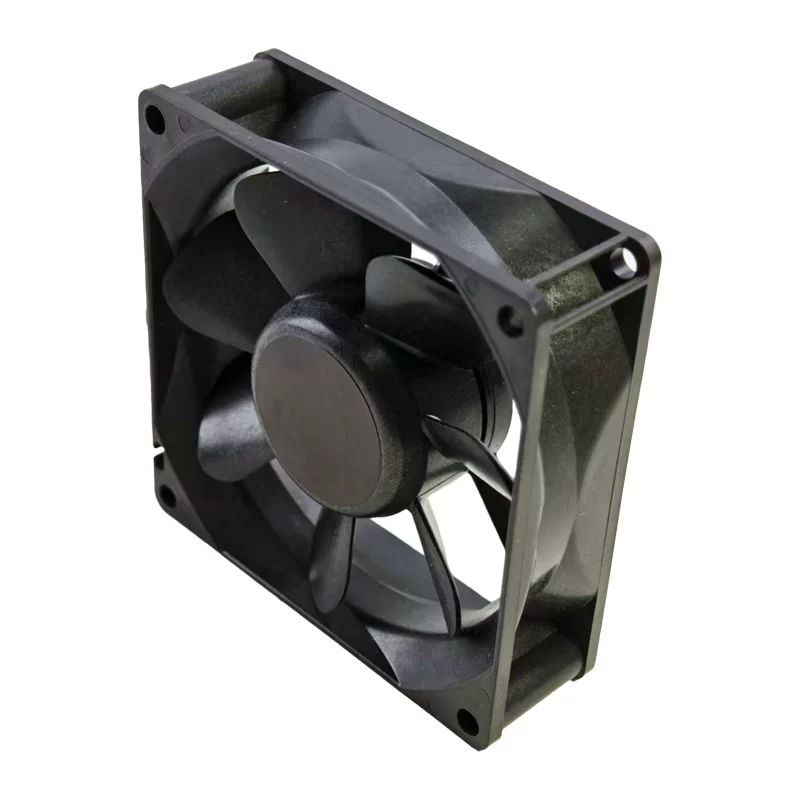

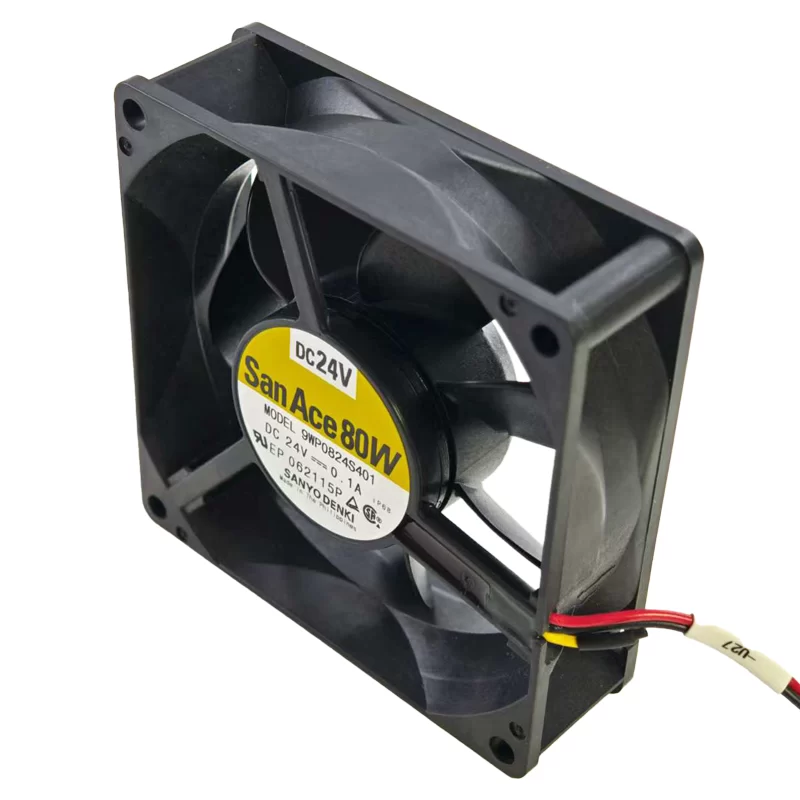

9WP0824S401 Sanyo Denki 24V DC Axial Fan

Description

The Sanyo Denki SanAce80W 9WP0824S401 is a reliable 24VDC axial fan with a wide operating voltage range of 20.4 to 27.6V. It measures 80 x 80 x 25 mm and is designed for general-purpose cooling, including in challenging environments due to its IP68 protection rating. It provides 42.4 CFM (72 m³/h) of airflow and generates 0.193 inch H₂O (48 Pa) of static pressure. Operating at 3400 RPM, the fan consumes 2.4 W of power. It is built with durable plastic materials and uses ball bearings for a long and reliable lifespan of 40,000 hours at 60 °C. Its 3-wire termination provides a dedicated tachometer signal for monitoring fan speed. It is commonly used for cooling power supplies, industrial control systems, and electronics enclosures.

9WP0824S401 Fan Parameters
Manufacturer: Sanyo Denki
Series: SanAce80W
Model: 9WP0824S401
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 20.4 ~ 27.6 VDC
Current Rating: 0.1 A
Power Consumption: 2.4 W
Airflow: 42.4 CFM (72 m³/h)
Static Pressure: 0.193 inch H₂O (48 Pa)
Speed: 3400 RPM
Noise Level: 34 dB(A)
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Features: Speed Sensor (Tachometer/FG signal), IP68 Protection Rating
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -20 °C ~ 70 °C
Lifetime @ Temp: 40,000 Hours @ 60 °C
Weight: 130 g
Application: This Sanyo Denki DC axial fan is suitable for cooling power supplies, industrial control systems, and electronics enclosures.
