Description

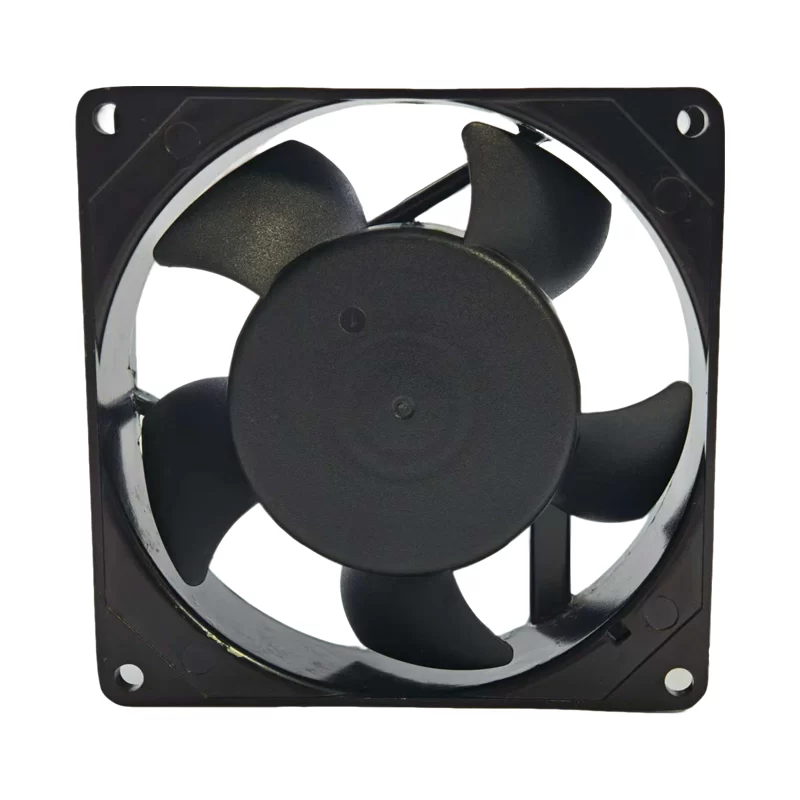

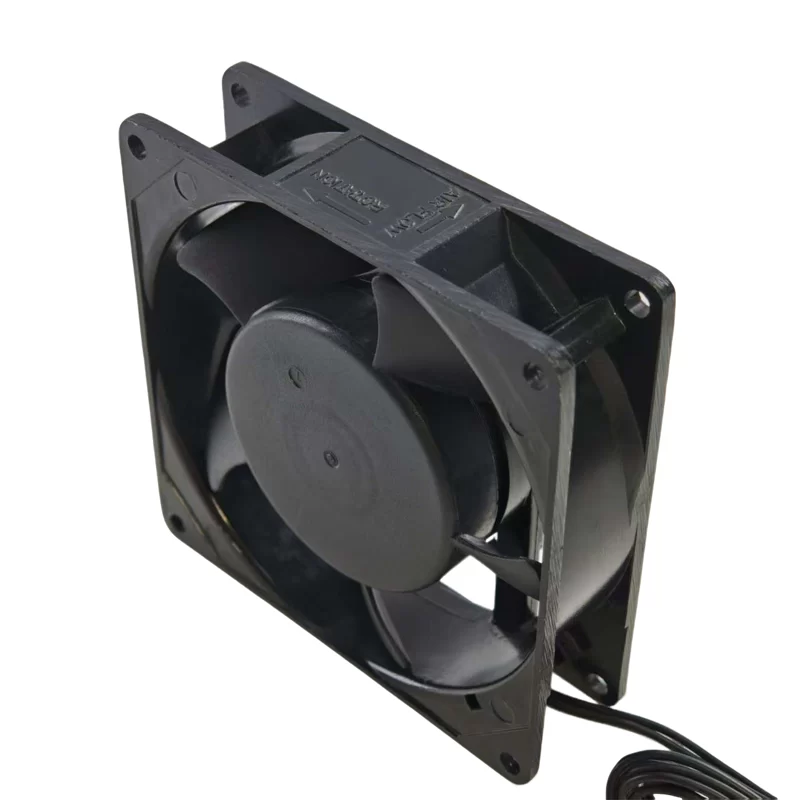

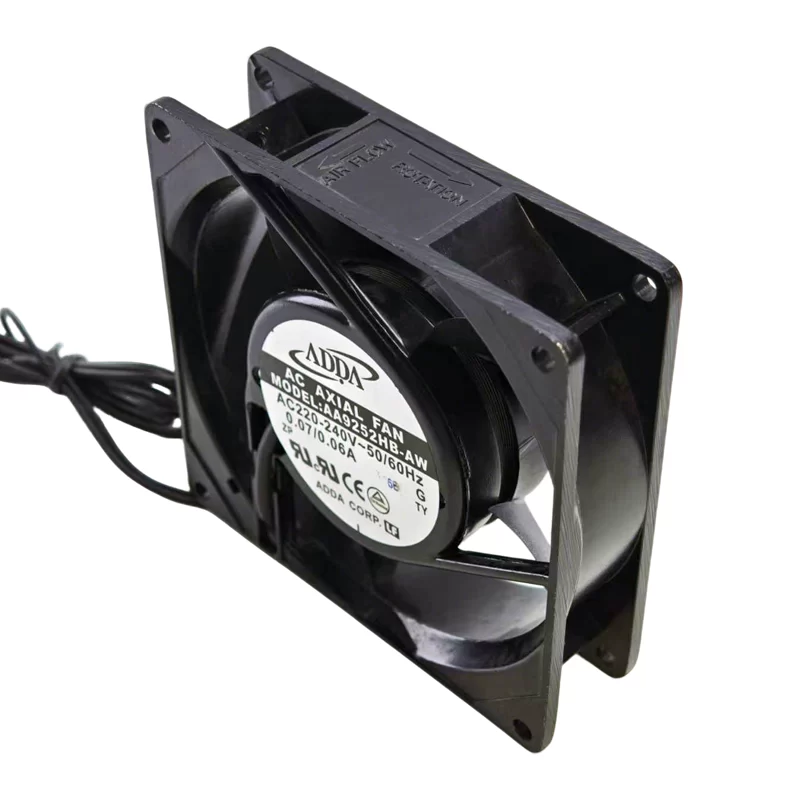

The ADDA AA9252HB-AW is a 220-240VAC AC axial fan with dimensions of 92x92x25mm. It is designed for operation at two frequencies, 50Hz and 60Hz, with performance specifications varying accordingly. At 50Hz, it draws 0.07A of current, consumes 13.4W of power, provides 47.6m³/h (28CFM) of airflow, achieves 18.8Pa (1.92mmAq) of static pressure, and operates at 2000RPM with a noise level of 24.1dB(A). When running at 60Hz, it draws 0.06A of current, consumes 11W of power, delivers 57.8m³/h (34CFM) of airflow, achieves 28.9Pa (2.946mmAq) of static pressure, and runs at 2400RPM with a noise level of 30.1dB(A). This fan utilizes durable ball bearings, features an aluminum frame with a thermoplastic impeller, and is terminated with two wire leads. It is suitable for ambient temperatures from -10 to 70°C and has an expected life of 60,000hours at 40°C. It is ideal for cooling in compact enclosures like electronic cabinets and chassis, and other industrial or commercial applications requiring 220-240V AC power.
AA9252HB-AW Fan Parameters
Manufacturer: ADDA
Model: AA9252HB-AW
Fan Type: AC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 220-240 VAC
Operating Frequency: 50 Hz / 60 Hz
Performance at 50 Hz:
Current Rating: 0.07 A
Power Consumption: 13.4 W
Airflow: 47.6 m³/h (28 CFM)
Static Pressure: 18.8 Pa (1.92 mmAq)
Speed: 2000 RPM
Noise Level: 24.1 dB(A)
Performance at 60 Hz:
Current Rating: 0.06 A
Power Consumption: 11 W
Airflow: 57.8 m³/h (34 CFM)
Static Pressure: 28.9 Pa (2.946 mmAq)
Speed: 2400 RPM
Noise Level: 30.1 dB(A)
Bearing Type: Ball Bearing
Termination: Two Wire Leads
Housing Material: Aluminum Frame
Impeller Material: Thermoplastic (UL94V-0)
Operating Temperature: -10 ~ 70°C
Lifetime @ Temp: 60,000 Hours (at 40°C)
Weight: 0.23 kg
Approval Agency: CE, UL, cUL, TUV
Application: This ADDA AC axial fan is suitable for cooling in compact enclosures, electronic cabinets, chassis, and other industrial or commercial applications requiring 220-240V AC power.
