Description

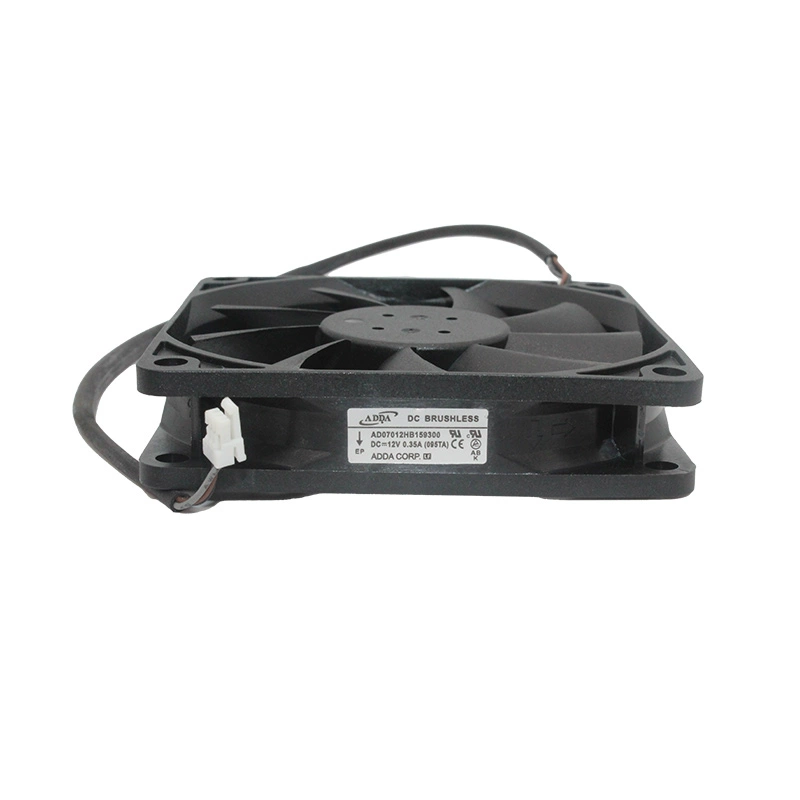

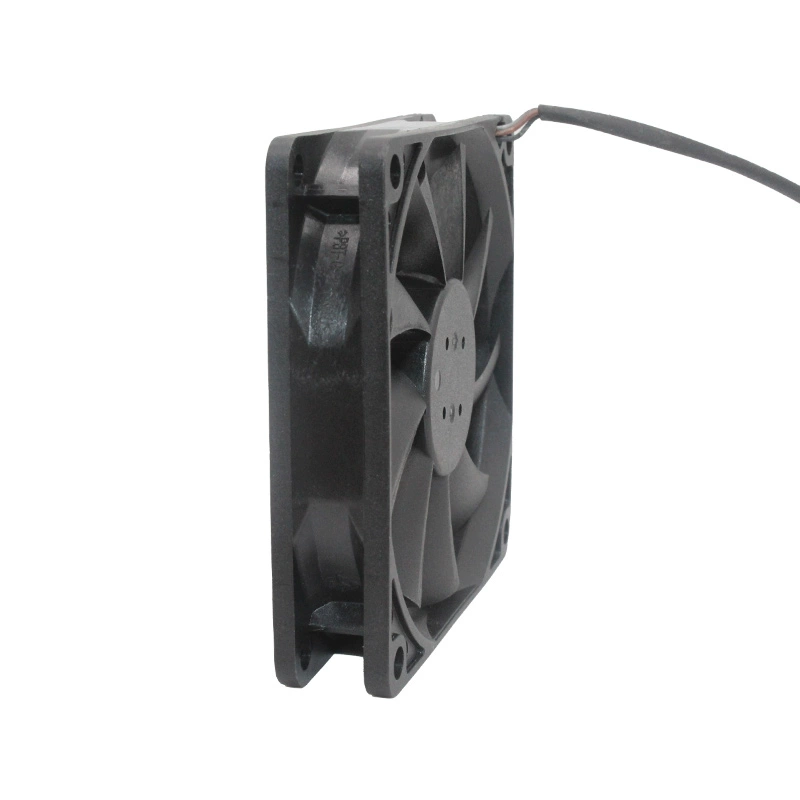

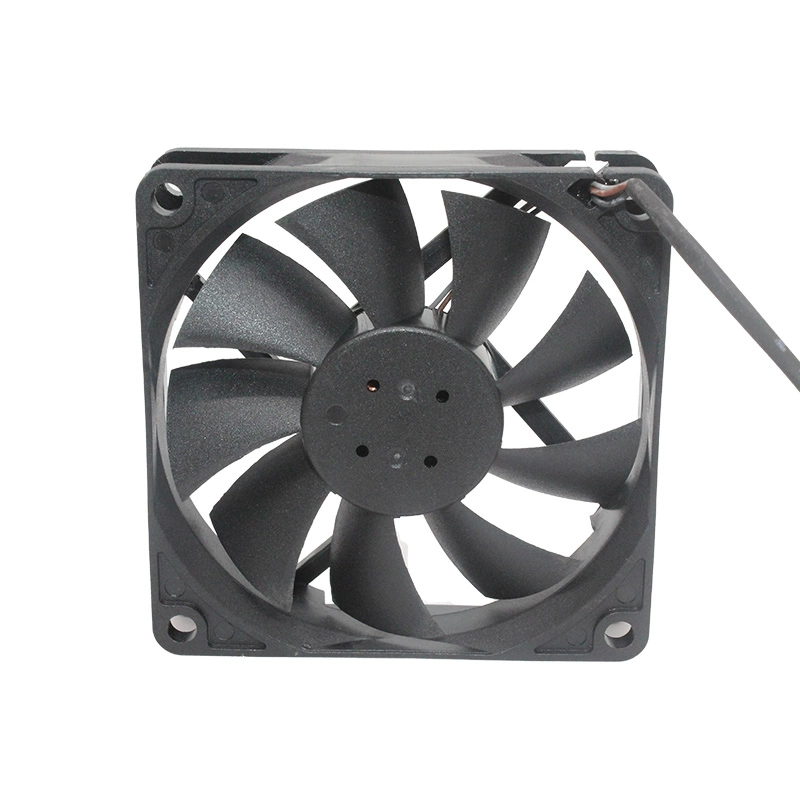

The ADDA AD07012HB159300 is a compact 12V DC axial cooling fan from ADDA Corporation, measuring 70mm x 70mm x 15mm. Commonly used in applications such as projectors and various electronic devices, this fan operates at a rated current of 0.35A (4.2W). It achieves a rotational speed of 4200 RPM, delivering 36.0 CFM of airflow with a noise level of 38.0 dBA. Equipped with ball bearings, it ensures a long operational life of 50,000 hours. The fan typically uses 3-wire leads, which often includes a speed signal line (tachometer) for monitoring, making it a suitable choice for applications requiring efficient and reliable thermal management in constrained spaces.
Model Number: AD07012HB159300
Manufacturer: ADDA Corporation
Type: DC Axial Cooling Fan
Dimensions: 70mm x 70mm x 15mm
Rated Voltage: 12V DC
Rated Current: 0.35A
Rated Power: 4.2W
Speed: 4200 RPM
Airflow: 36.0 CFM / 1.02 m³/min
Static Pressure: Not consistently specified in common basic listings
Noise Level: 38.0 dBA
Connector: 3-Wire Leads (typically with speed signal line)
Bearing Type: Ball Bearing
Life Expectancy: 50,000 hours
Operating Temperature: Not explicitly specified, but typically -10°C to 70°C for DC fans of this type.
Frame Material: Plastic
Impeller Material: Plastic
Features: Speed Signal Output (Tachometer), Polarity Protection
