Description

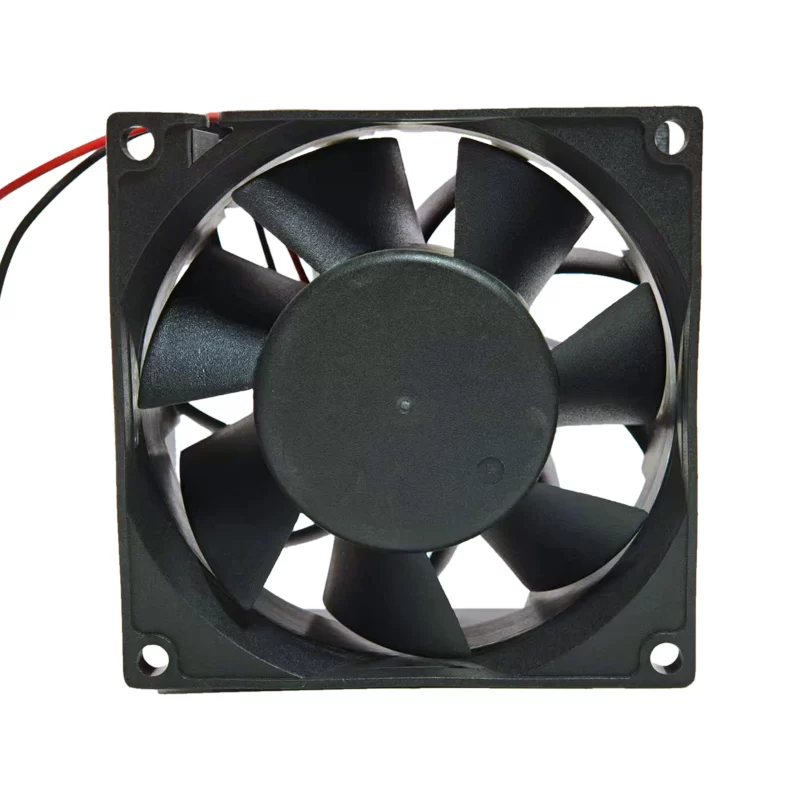

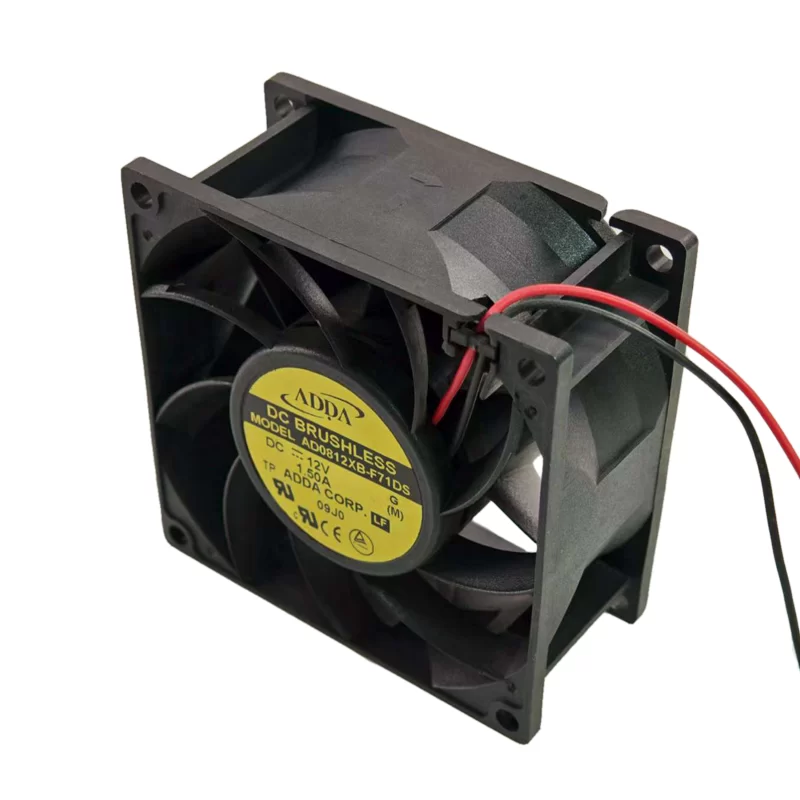

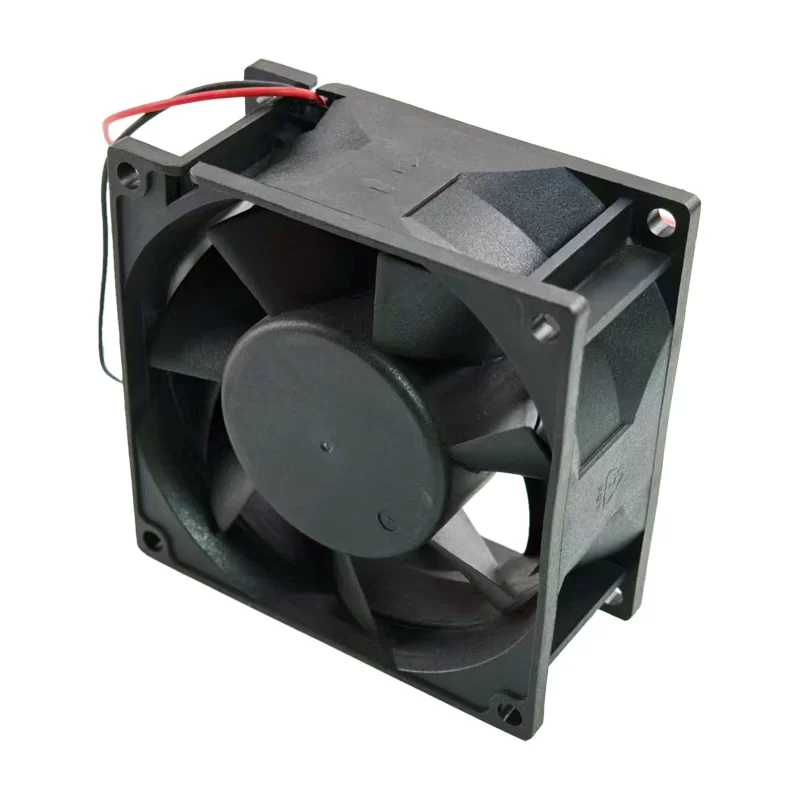

The ADDA AD0812XB-F71DS is a high-performance DC axial fan with dimensions of 80 x 80 x 38 mm. Operating at a rated voltage of 12V DC, it draws a nominal current of 1.25 A and consumes 15 W of power. This fan delivers a powerful airflow of 97 CFM (164.8 m3/h) and a static pressure of 20.32 mmAq (200Pa) at a high speed of 6200 RPM. It operates at a noise level of 57 dB(A) and features a ball bearing with a service life of up to 50,000 hours at 40°C. The fan housing and impeller are constructed from plastic, and it weighs 0.195 kg.
AD0812XB-F71DS Fan Parameters
Manufacturer: ADDA
Model: AD0812XB-F71DS
Fan Type: DC Axial Fan
Dimensions: 80 x 80 x 38 mm
Rated Voltage: 12V DC
Current Rating: 1.25 A
Label Current: 1.50 A
Power Consumption: 15 W
Airflow: 97 CFM
Static Pressure: 20.32 mmAq
Speed: 6200 RPM
Noise Level: 57 dB(A)
Weight: 0.195 kg
Bearing Type: Ball bearing
Termination: 2-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 70 °C
Service Life: 50000 h at 40 °C
Approval: UL, cUL, TUV, CE
Application
The AD0812XB-F71DS fan is suitable for applications that require high airflow and static pressure in a compact size, such as in servers, networking devices, industrial PCs, and other electronic equipment with high cooling demands.
