Description

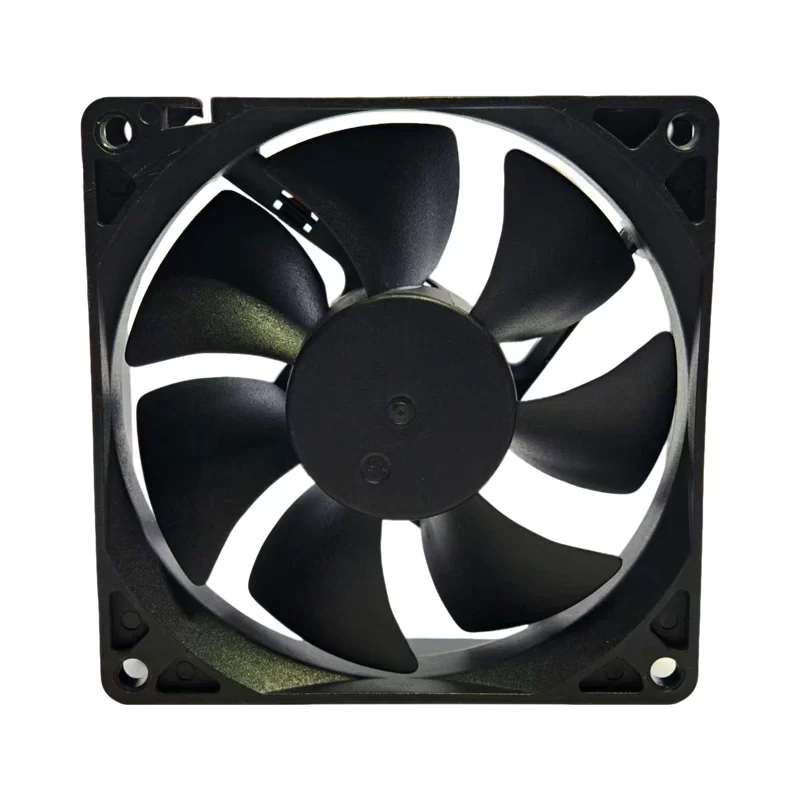

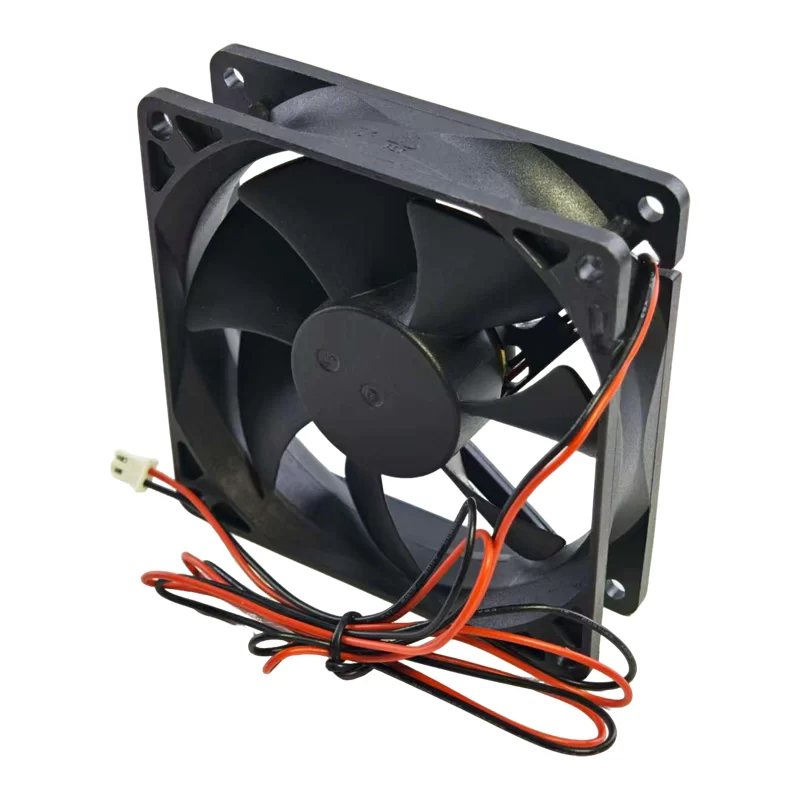

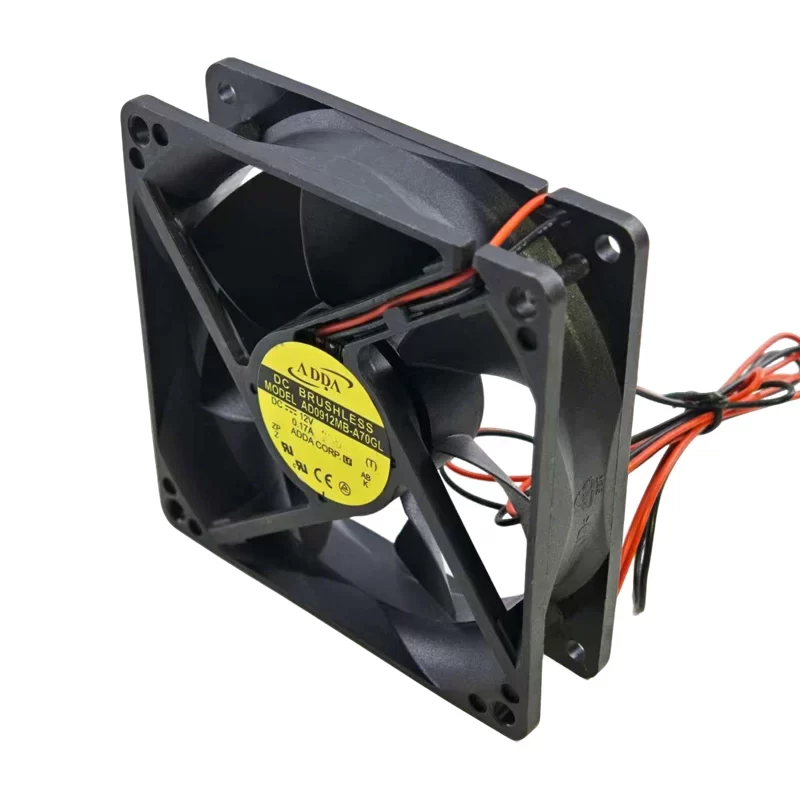

The ADDA AD0912MB-A70GL is a DC axial fan with dimensions of 92 x 92 x 25 mm. It operates on 12V DC, drawing 0.17 A of current and consuming 2.04 W of power. This fan runs at a speed of 2600 RPM, delivering an airflow of 47.2 CFM with a static pressure of 0.108 inch H₂O. It produces a noise level of 32.7 dB(A). The fan features a ball bearing and is terminated with two-wire leads. It weighs 101 g, is constructed from plastic, and is certified by UL, CUL, TUV, and CE. It is designed to operate within a temperature range of -10 °C to 60 °C.
AD0912MB-A70GL Fan Parameters
Manufacturer: ADDA
Model: AD0912MB-A70GL
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 12V DC
Current Rating: 0.17 A
Power Consumption: 2.04 W
Airflow: 47.2 CFM
Static Pressure: 0.108 inch H₂O
Speed: 2600 RPM
Noise Level: 32.7 dB(A)
Weight: 101 g
Bearing Type: Ball Bearing
Termination: 2-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 60 °C
Certifications: UL, CUL, TUV, CE
Application
The AD0912MB-A70GL fan is particularly suited for inverter cooling. It is also suitable for a wide range of applications that require a balance of efficient cooling and quiet operation, such as in desktop computers, power supplies, and electronics enclosures.
