Description

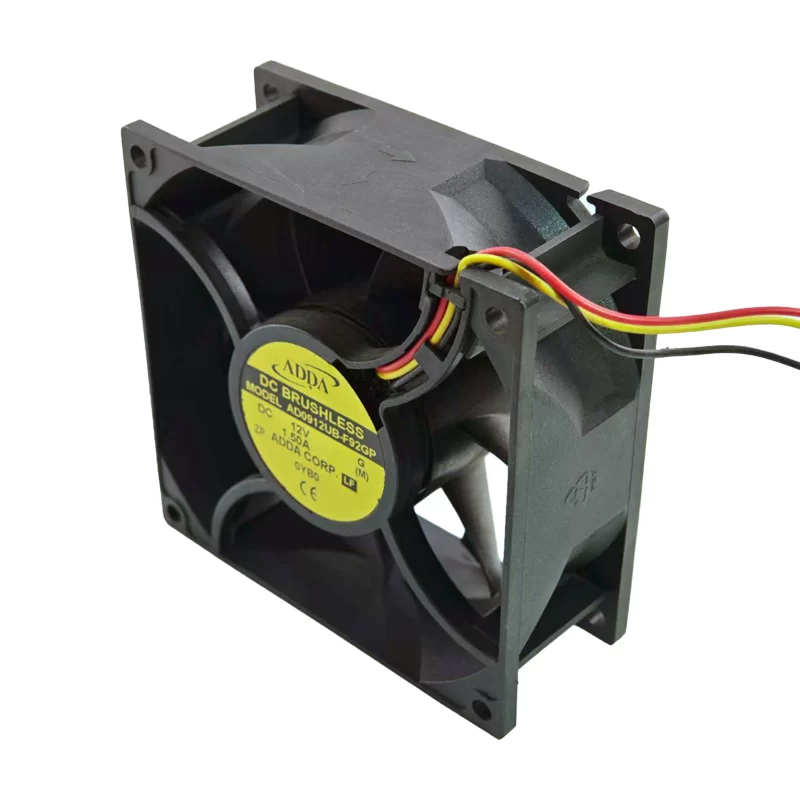

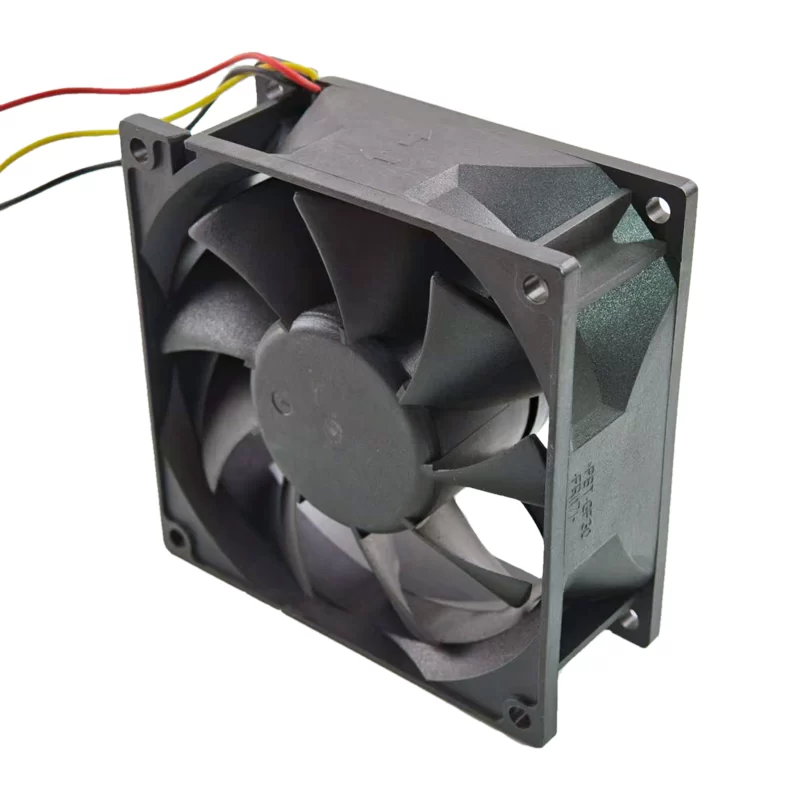

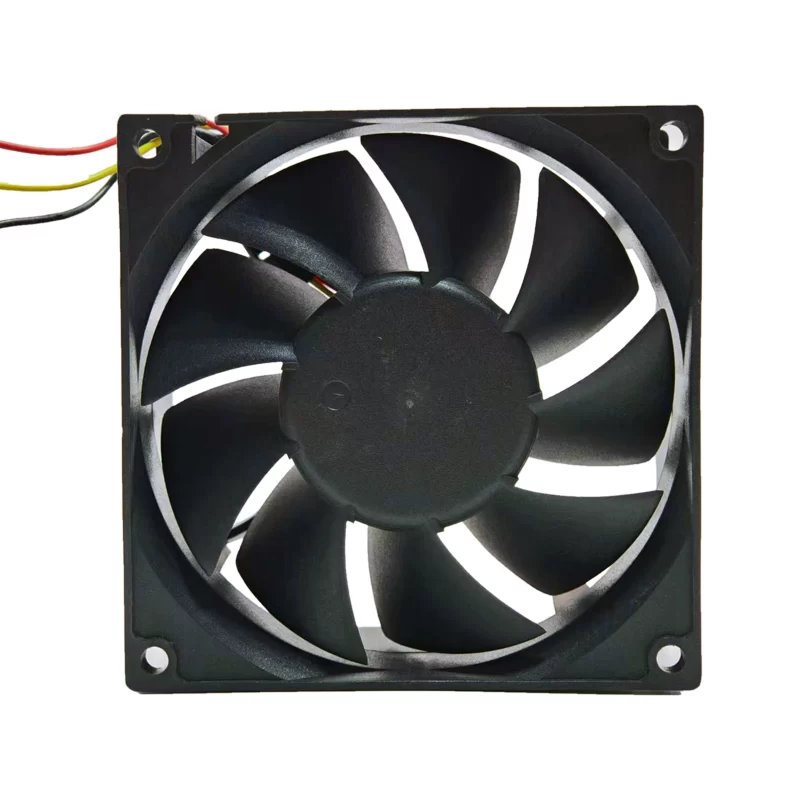

The ADDA AD0912UB-F92GP is a powerful DC axial fan with dimensions of 92 x 92 x 38 mm. It operates on a rated voltage of 12V DC within a range of 7.0-13.2V, drawing 1.50 A of current and consuming 18 W of power. The fan delivers a powerful airflow of 130 CFM and a static pressure of 0.61 inch-H₂O (152Pa) at a speed of 5600 RPM. It operates at a noise level of 53.5 dB(A) and features a ball bearing with a service life of up to 50,000 hours at 40°C. The fan housing and impeller are constructed from plastic, and the fan is equipped with protection against reverse polarity.
AD0912UB-F92GP Fan Parameters
Manufacturer: ADDA
Model: AD0912UB-F92GP
Fan Type: DC Axial Fan
Dimensions: 92 x 92 x 38 mm
Rated Voltage: 12V DC
Operating Voltage Range: 7.0-13.2 V
Current Rating: 1.50 A
Power Consumption: 18 W
Airflow: 130 CFM
Static Pressure: 0.61 inch-H₂O
Speed: 5600 RPM
Noise Level: 53.5 dB(A)
Weight: 0.170 kg
Bearing Type: Ball bearing
Termination: 3-Wire Leads
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C to 70 °C
Service Life: 50000 h at 40 °C
Motor Protection: Protection against reverse polarity
Approval: UL, cUL, CE
Application
The AD0912UB-F92GP fan is suitable for high-performance computing and server cooling applications where a high airflow, strong static pressure, and efficient ventilation are essential.
