Description

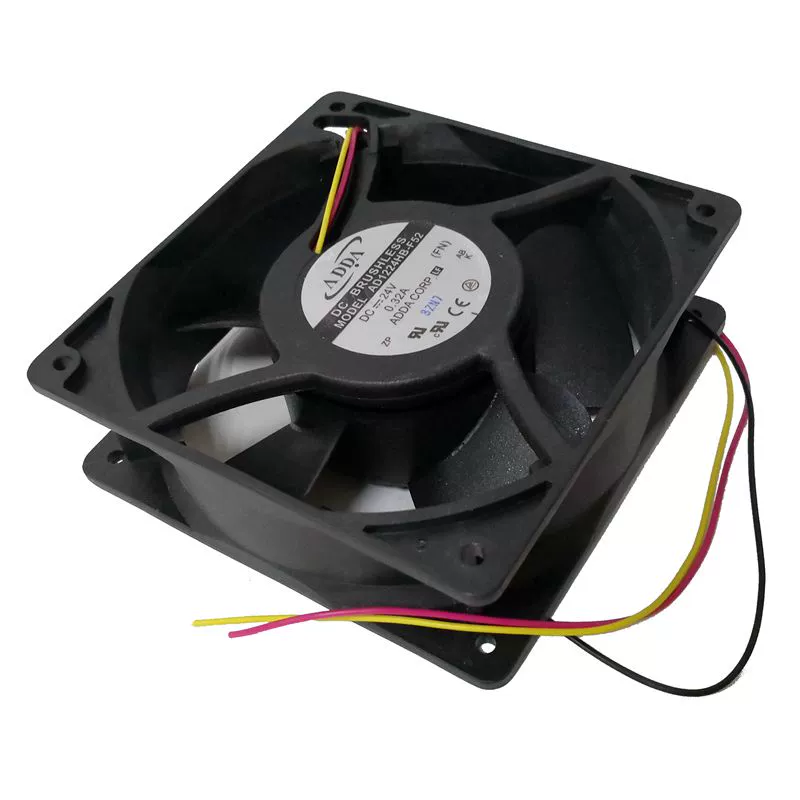

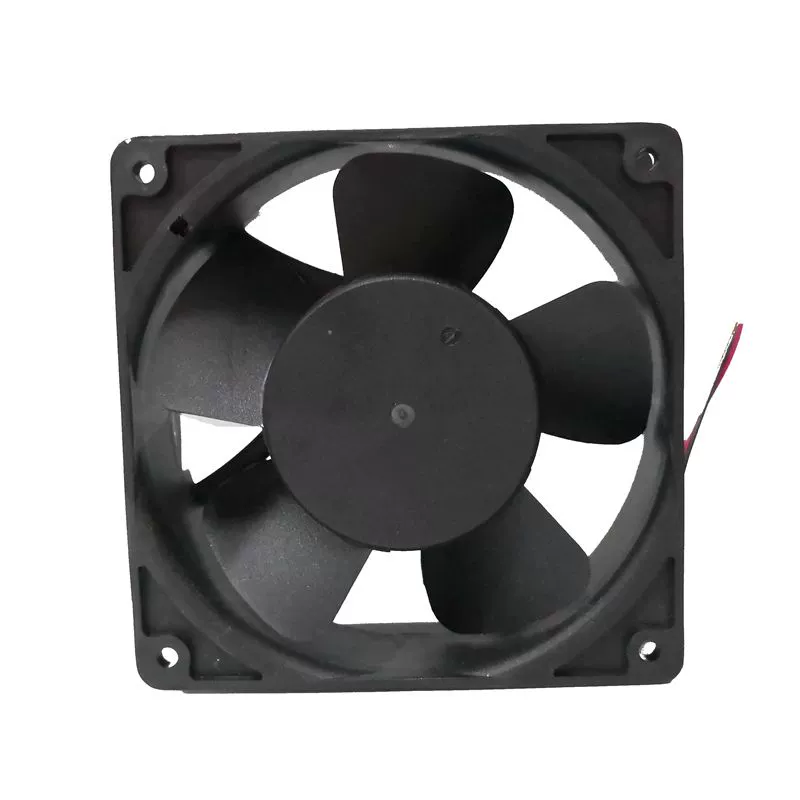

The ADDA AD1224HB-F52 is a DC axial cooling fan measuring 120x120x38mm. It operates on 24 VDC, drawing 0.32 A of current, with a power consumption of 7.68 W. This fan achieves a speed of 2800 RPM, providing an airflow of 105.46 CFM with a static pressure of 2.98 mmH2O. The noise level is 46.7 dB(A). It features double ball bearings for enhanced durability and lifespan, and uses 3-wire Leads for connection. This fan is suitable for general cooling applications in various electronic equipment and systems.
AD1224HB-F52 Fan Parameters
Model: AD1224HB-F52
Manufacturer: ADDA Corporation
Type: DC Cooling Fan
Dimensions: 120x120x38 mm
Rated Voltage: 24 VDC
Rated Current: 0.32 A
Power Consumption: 7.68 W
Speed: 2800 RPM
Airflow: 105.46 CFM
Static Pressure: 2.98 mmH2O
Noise Level: 46.7 dB(A)
Bearing Type: Double Ball Bearing
Termination: 3-wire Leads
Weight: 92.0 g
Application: General cooling in electronic equipment and systems.
