Description

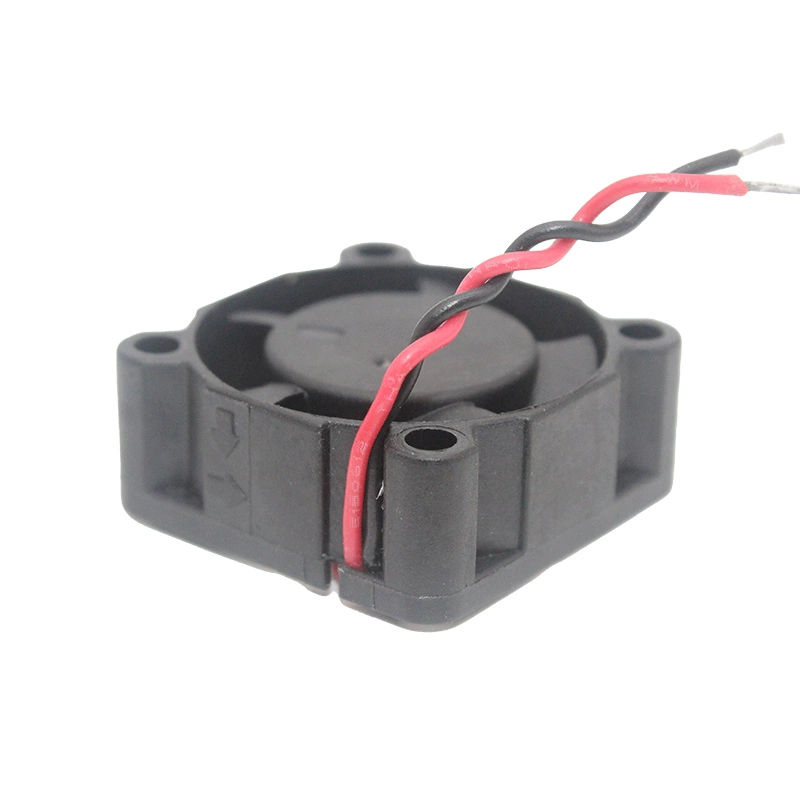

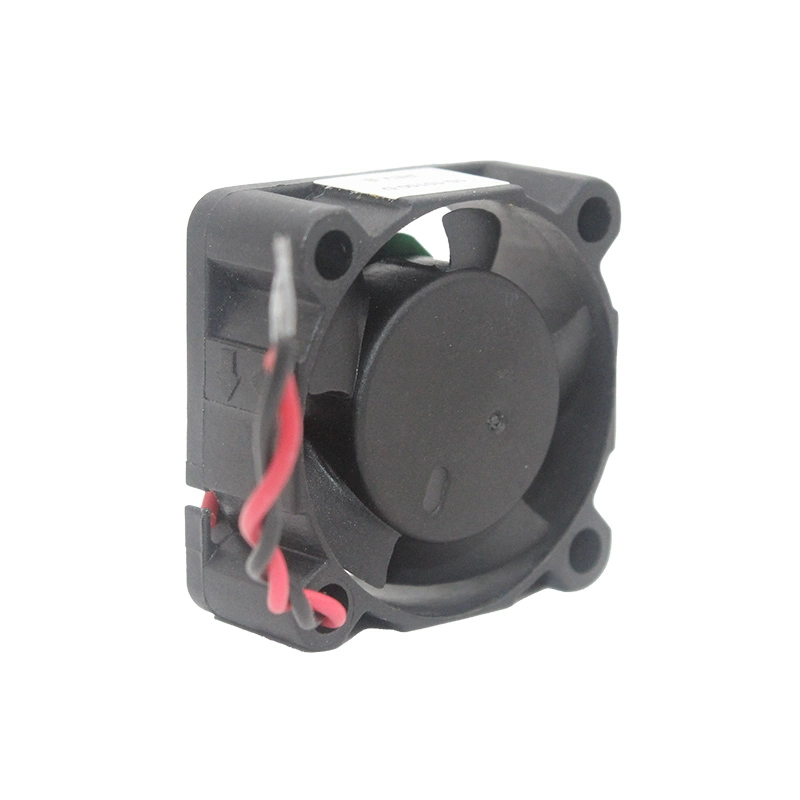

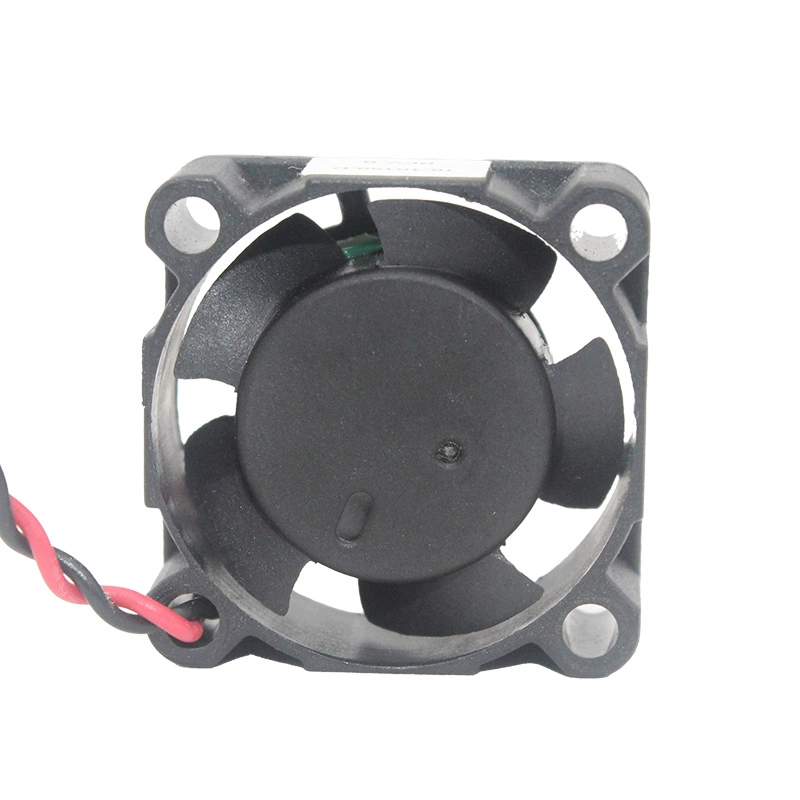

The Delta AFB02512HHA-T8NG is a compact, high-speed 12V DC axial cooling fan measuring 25mm x 25mm x 10mm. Operating at a rated current of 0.12A (1.44W), this fan is designed for effective thermal management in space-constrained electronic devices. It achieves a high rotational speed of 13000 RPM, delivering 2.4 CFM of airflow with a static pressure of 0.300 inch-H2O (74.7 Pa). Its noise output is 28.0 dBA, which is relatively quiet for its high speed. The fan is equipped with ball bearings for a long operational life. Connectivity can vary, but for this specific variant often uses 2-wire leads (some “HHA” models with specific suffixes can be 3-wire with pulse, but common listings for 0.12A suggest 2-wire). It includes auto-restart and polarity protection features, ensuring reliable performance.
Model Number: AFB02512HHA-T8NG
Manufacturer: Delta Electronics
Type: DC Axial Cooling Fan
Dimensions: 25mm x 25mm x 10mm
Rated Voltage: 12V DC
Operating Voltage: 7.0V to 13.2V DC
Rated Current: 0.12A
Rated Power: 1.44W
Speed: 13000 RPM
Airflow: 2.4 CFM / 0.068 m³/min
Static Pressure: 0.300 inch-H2O / 74.7 Pa
Noise Level: 28.0 dBA
Connector: 2-Wire Leads
Bearing Type: Ball Bearing
Life Expectancy: 30,000 hours at 40°C
Operating Temperature: -10°C to 70°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
