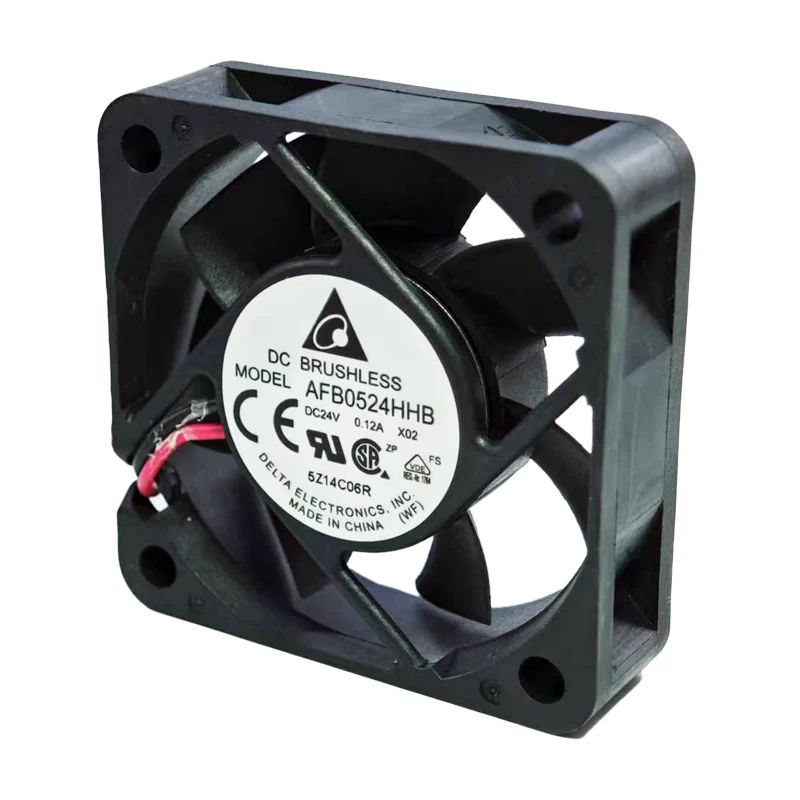

AFB0524HHB-X02 Delta 24V 0.12A ball axial fan

Description

Delta New original AFB0524HHB-X02 24V 0.12A 5015 ball cooling fan
Model Number: AFB0524HHB-X02
Manufacturer: Delta Electronics
Series: AFB
Fan Type: DC Brushless Axial Fan

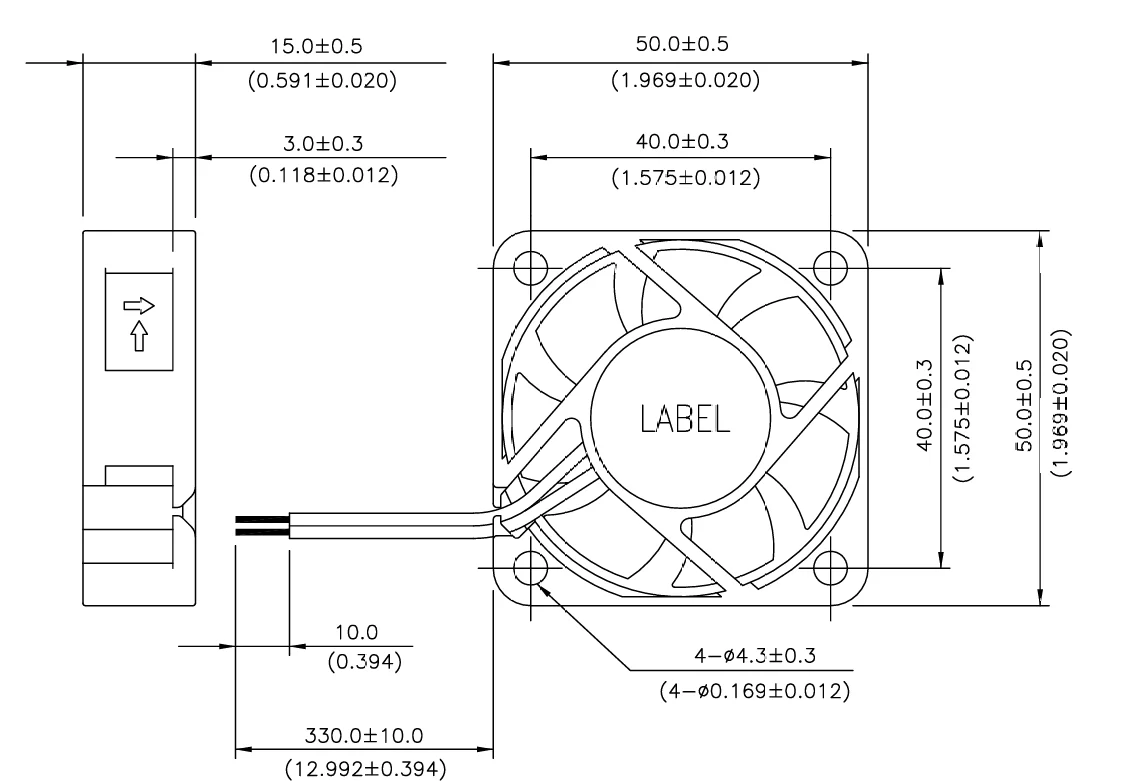

Dimensions L x H x W: 50 mm x 50 mm x 15 mm

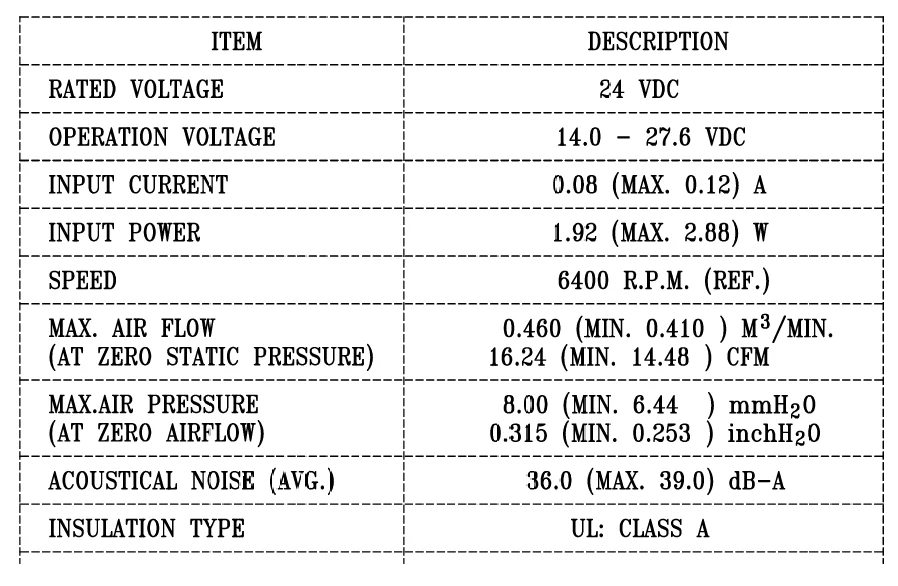

Rated Voltage: 24 VDC
Operating Voltage Range: 14 VDC to 27.6 VDC
Rated Current: 0.12 A
Input Power: 1.92 W
Wiring: 2 Wire Leads
Bearing Type: Ball Bearing
Rotational Speed RPM: 6400 RPM
Maximum Airflow: 16.2 CFM or 0.454 m³/min
Maximum Static Pressure: 0.315 in H2O or 78.5 Pa
Noise Level: 36.0 dBA
Frame Material: Plastic
Impeller Blade Material: Plastic
Protection Functions: Locked Rotor Protection
Operating Temperature Range: -10°C to +70°C
Expected Life: 70,000 Hours at 40°C
Mass: 32.21 g
Safety Approvals: CE, CSA, UL, VDE

The Delta AFB0524HHB-X02 is a compact yet powerful 50x50x15mm DC axial fan from Delta’s AFB series. Operating on 24VDC, it consumes 1.92W of power with a current draw of 0.12A. This fan features durable ball bearings for a long operational life of 70,000 hours at 40°C. It delivers a significant airflow of 16.2 CFM at a high speed of 6400 RPM, generating notable static pressure of 0.315 in H2O, with a moderate noise level of 36.0 dBA. The fan includes locked rotor protection for enhanced reliability. This fan is an excellent choice for cooling smaller electronic enclosures, industrial control panels, power supplies, 1U servers, and other applications where effective and reliable cooling is needed in a tight space.
