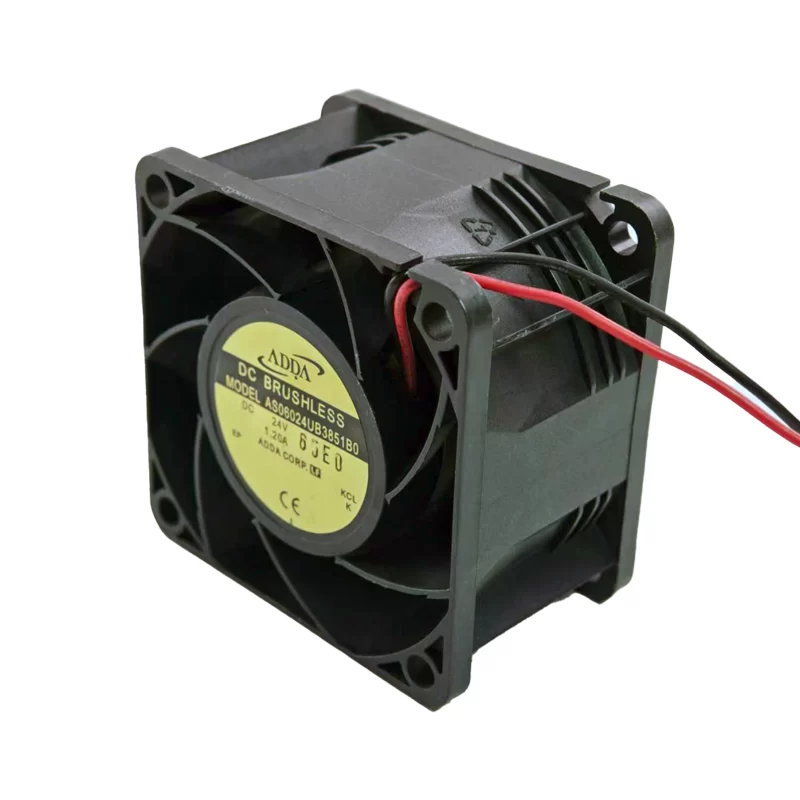

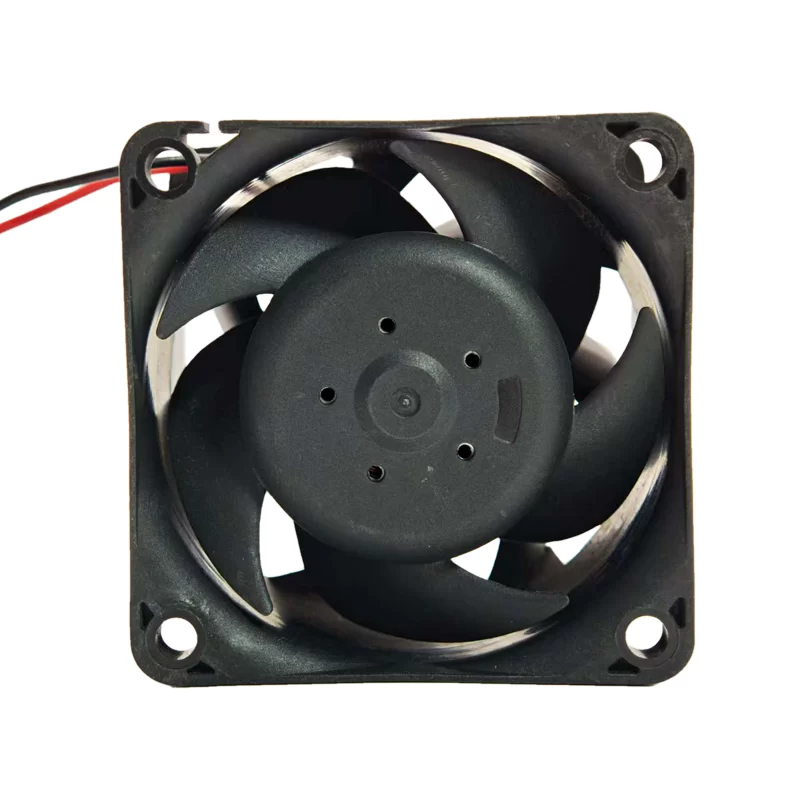

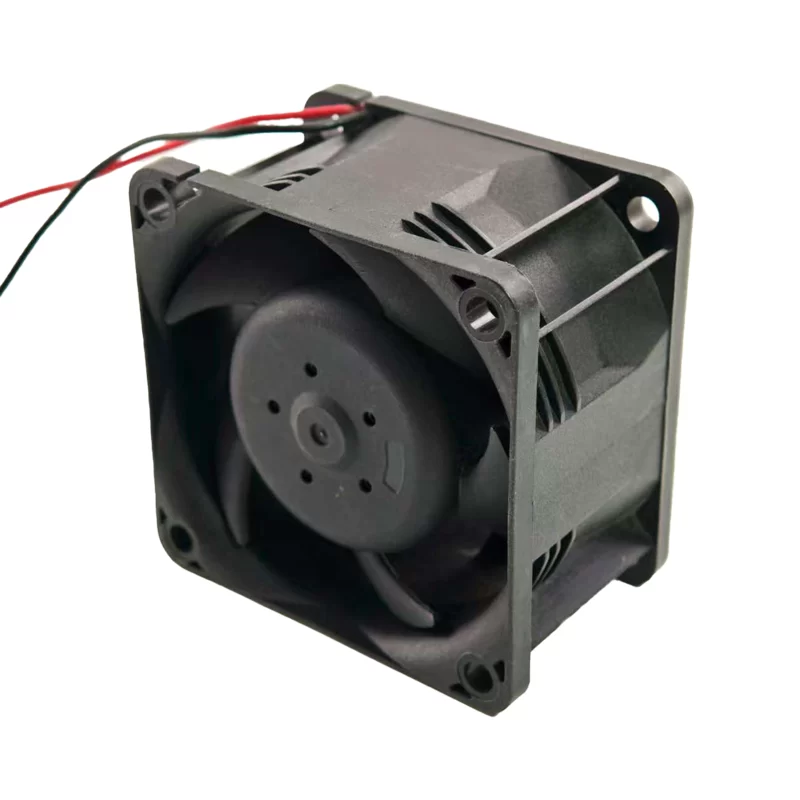

AS06024UB3851B0 ADDA 24V DC Axial Fan

Description

The ADDA AS06024UB3851B0 is a high-performance DC axial fan with dimensions of 60 x 60 x 38 mm. It operates on a rated voltage of 24V DC, drawing 1.20 A of current and consuming 28.8 W of power. The fan features a ball bearing with a service life of up to 70,000 hours at 40°C. The housing and impeller are constructed from thermoplastic PBT. Specific data for airflow, speed, and noise level are not specified for this model.

AS06024UB3851B0 Fan Parameters
Manufacturer: ADDA
Model: AS06024UB3851B0
Fan Type: DC Axial Fan
Dimensions: 60 x 60 x 38 mm
Rated Voltage: 24V DC
Current Rating: 1.20 A
Power Consumption: 28.8 W
Bearing Type: Ball bearing
Termination: 2-Wire Leads
Housing Material: Thermoplastic PBT
Impeller Material: Thermoplastic PBT
Operating Temperature: -10 °C to 60 °C
Service Life: 70000 h at 40 °C

Application
The AS06024UB3851B0 fan is suitable for high-density cooling applications where space is limited and powerful airflow is critical, such as in blade servers, industrial automation, and high-performance computing.
