Description

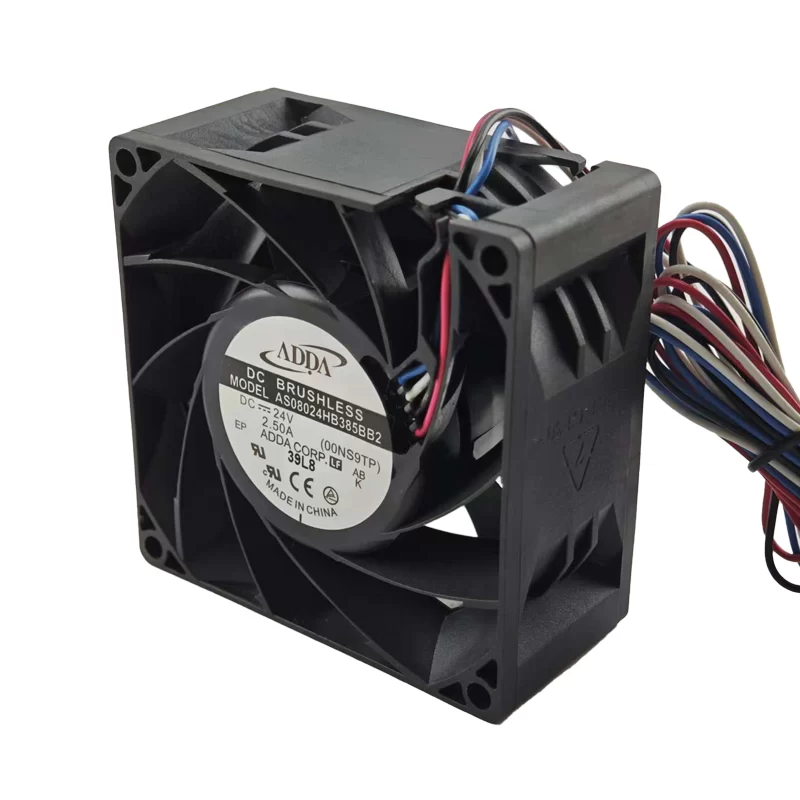

The ADDA AS08024HB385BB2 is an extraordinarily powerful 24V DC axial fan, measuring 80mm x 80mm x 38mm, manufactured by ADDA Corporation. Engineered for the most demanding thermal challenges, this robust fan draws a significant 2.5A of current, consuming a massive 60.0W of power to deliver extreme cooling performance. Operating at an astonishing 14000 RPM, it provides an unparalleled 145 CFM of airflow and generates an exceptional 4.10 inches of H2O static pressure, resulting in a robust 75 dBA noise level. Equipped with durable ball bearings, it ensures a reliable operational lifespan of 70,000 hours, and its 4-wire leads offer both PWM for precise speed control and a tachometer output for real-time monitoring. This fan is an optimal choice for critical components in high-density server racks, supercomputers, advanced industrial machinery, and other extreme environments where superior thermal management and unwavering reliability are paramount.
ADDA brand new original authentic AS08024HB385BB2 24V 2.50A violent fan cooling fan
Model: AS08024HB385BB2
Manufacturer: ADDA Corporation
Type: DC Axial Fan
Dimensions: 80mm x 80mm x 38mm
Nominal Voltage: 24V DC
Current: 2.5A
Power Consumption: 60.0W
Speed: 14000 RPM
Airflow: 145 CFM
Static Pressure: 4.10 In H2O
Noise Level: 75 dBA
Bearing Type: Ball Bearing
Life Expectancy: 70,000 Hours (at 40°C)
Termination: 4-wire leads
Frame Material: Glass-Filled Polyester (P.B.T) UL94V-0
Impeller Material: Glass-Filled Polyester (P.B.T) UL94V-0
Features: Brushless DC motor, polarity protected, high static pressure design, PWM control, tachometer output.
