Description

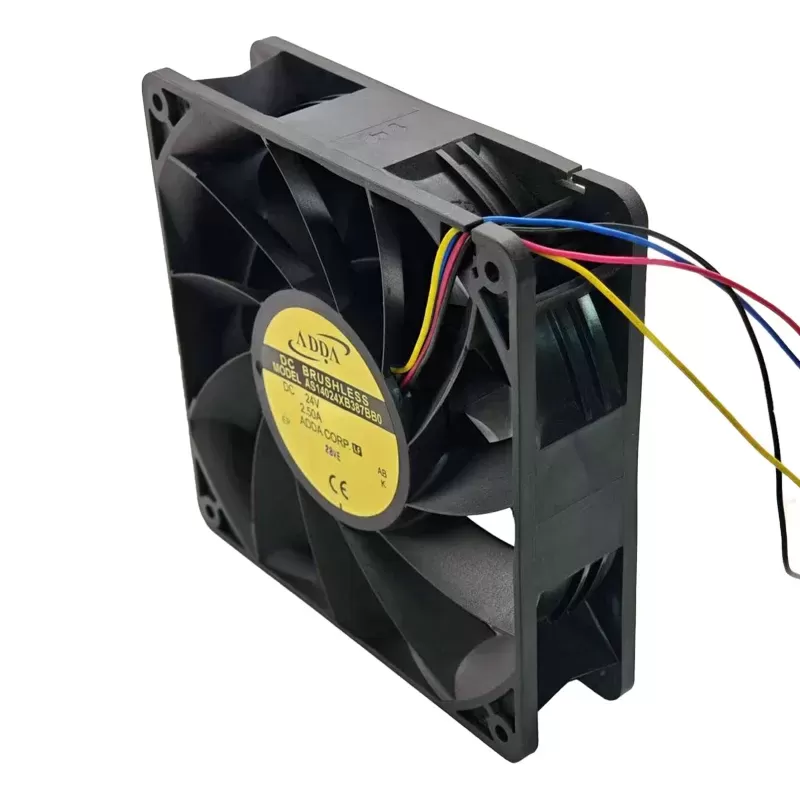

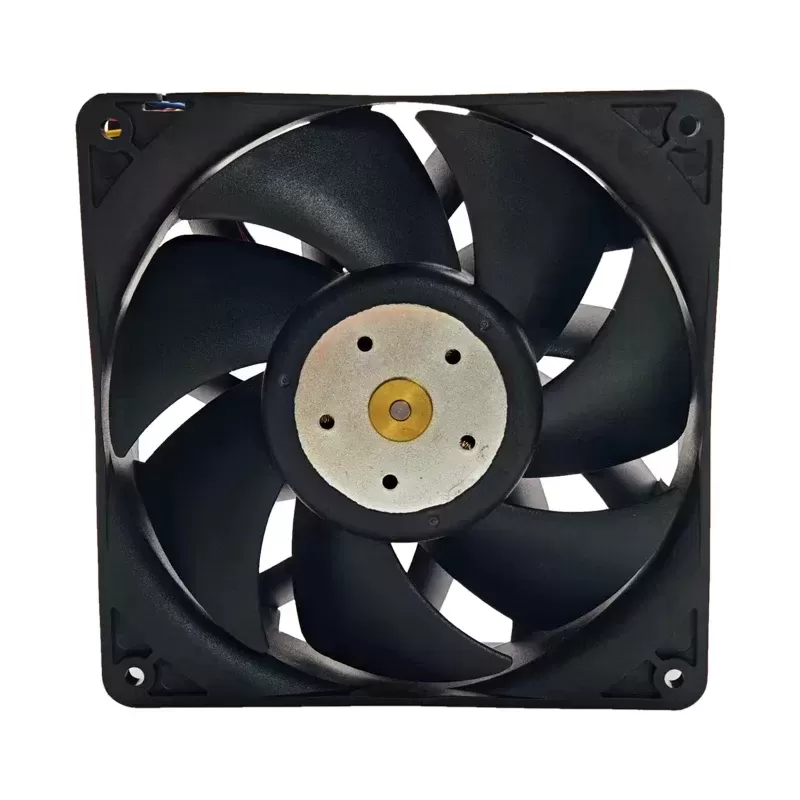

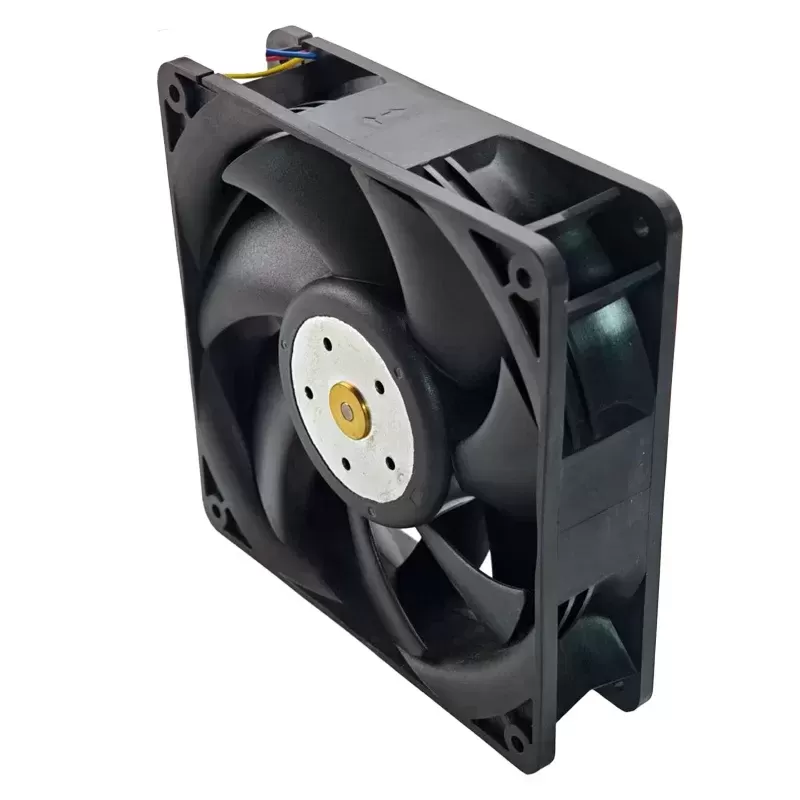

The ADDA AS14024XB387BB0 is a high-performance DC axial fan measuring 140x140x38mm. It operates on 24 VDC, drawing 2.50 A of current. Power consumption is 60 W. This fan achieves a high speed of 6600 RPM, providing an airflow of 271.5 CFM, with a static pressure of 2.015 in H2O. The noise level is 70.2 dB(A). It is equipped with ball bearings for high durability and performance. It features 4-wire leads for speed control (PWM) and status monitoring. Constructed with a plastic frame and impeller, it is designed for demanding applications requiring high airflow and pressure, such as server cooling, industrial equipment, and telecommunications.
AS14024XB387BB0 Fan Parameters
Model: AS14024XB387BB0
Manufacturer: ADDA
Type: DC Axial Fan
Dimensions: 140x140x38 mm
Rated Voltage: 24 VDC
Rated Current: 2.50 A
Power Consumption: 60 W
Speed: 6600 RPM
Airflow: 271.5 CFM
Static Pressure: 2.015 in H2O
Noise Level: 70.2 dB(A)
Bearing Type: Ball Bearing
Termination: 4-wire leads (PWM, FG/RD signal)
Weight: 0.551 kg (551 g)
Frame Material: Plastic (PBT UL94V-0)
Impeller Material: Plastic (Polycarbonate or UL94V-0)
Operating Temperature: -10°C to +70°C
Life Expectancy: 70,000 hours
Features: PWM Control, Rotation Detection (RD) or Frequency Generator (FG) signal
Application: Server cooling, high-performance electronics, industrial control systems, telecommunication equipment.
