Description

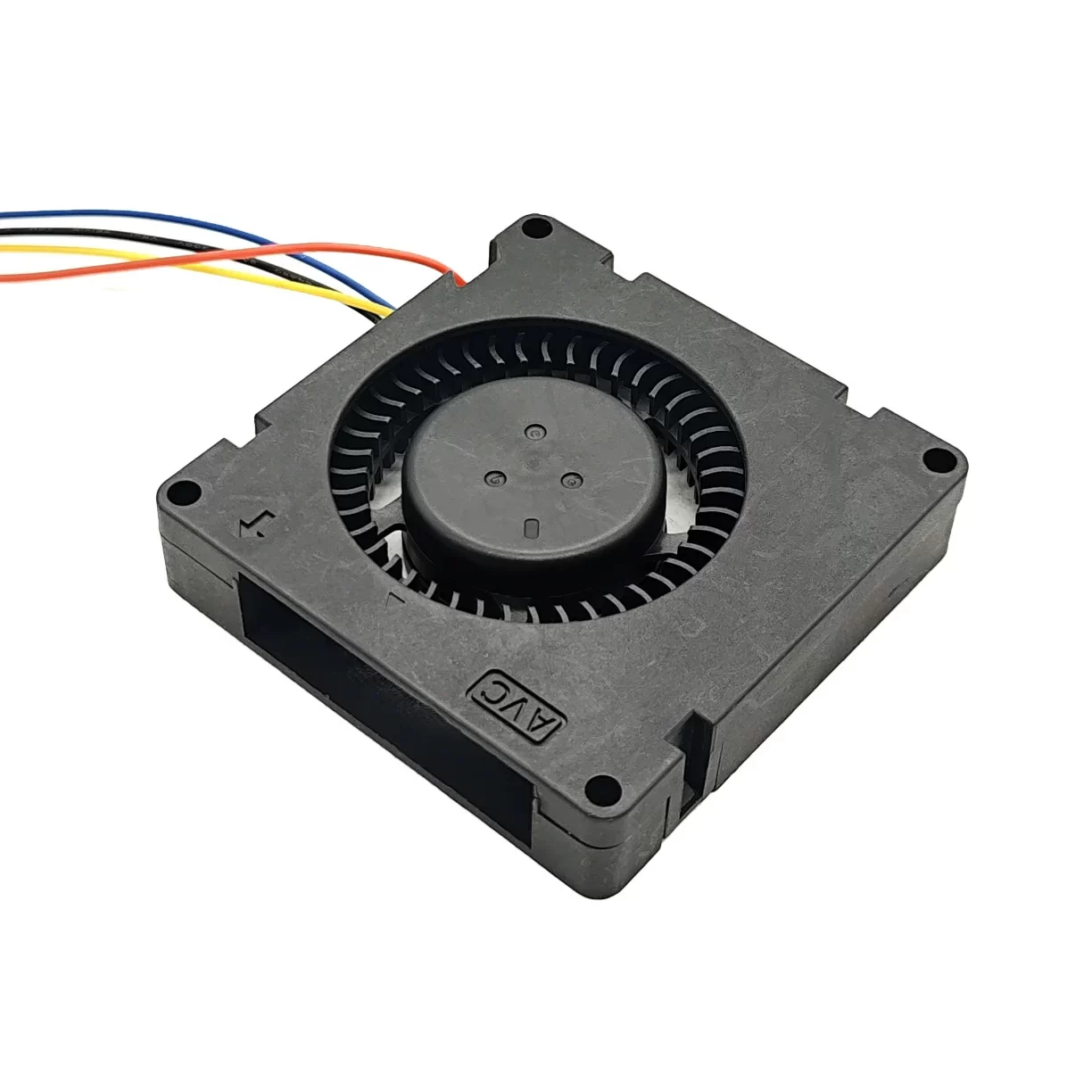

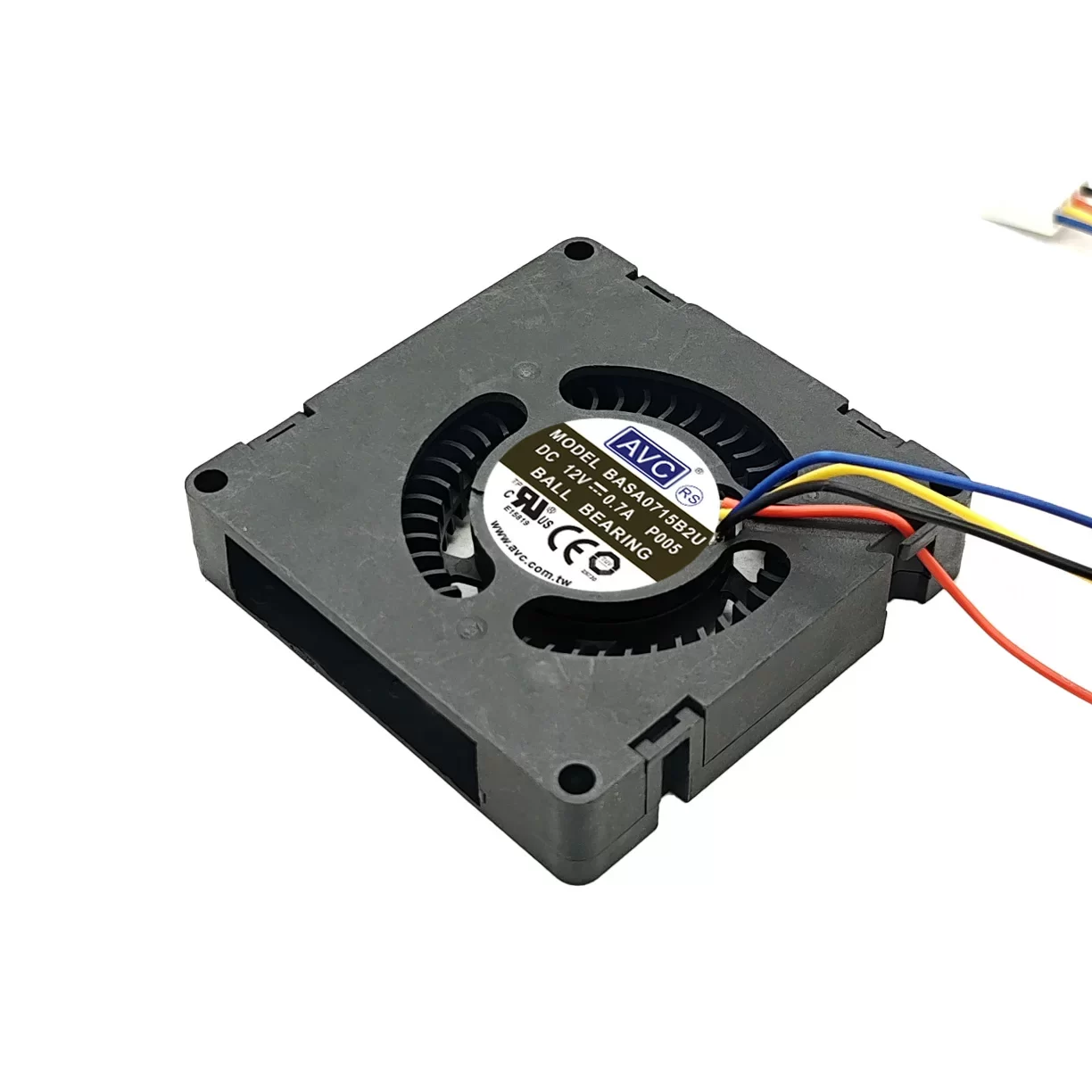

The AVC BASA0715B2M-P005 is a specialized high-performance DC blower fan designed for precision thermal management in high-density electronic environments. Featuring a compact 70 x 70 x 15 mm form factor, this unit is powered by a high-torque 0.7 A motor that drives the centrifugal impeller to a rated speed of 5000 RPM. This combination of high rotational speed and its centrifugal design allows for exceptional static pressure development, effectively forcing air through the restrictive heat sinks common in modern high-performance laptops and compact medical modules. The fan integrates a 4-wire interface, providing full support for PWM speed control and Tacho feedback for real-time monitoring. Built with premium dual ball bearings and weighing only 0.057 kg, the BASA0715B2M-P005 delivers a robust and reliable cooling solution, maintaining stable S1 continuous operation within an ambient temperature range of -10 °C to 70 °C.
BASA0715B2M-P005 Fan Parameters
Model Number: BASA0715B2M-P005
Manufacturer: AVC (Asia Vital Components)
Type: DC Blower Fan
Size: 70 mm
Dimensions: 70 x 70 x 15 mm
Weight: 0.057 kg
Bearing Type: Ball Bearing
Nominal Voltage: 12 VDC
Voltage Range: 7.0 – 13.2 VDC
Power Consumption: 8.4 W
Nominal Current: 0.7 A
Speed: 5000 RPM
Max. Air Flow: 62.23 CFM (105.7 m³/h / 1.76 m³/min)
Max. Static Pressure: 9.81 mmH₂O (96.24 Pa / 0.39 inH₂O)
Actual Air Flow: 16.5 m³/h
Actual Static Pressure: 245 Pa
Sound Pressure Level: 46.0 dB(A)
Motor Design: High-torque Brushless DC motor
Motor Protection: Electronic protection against reverse polarity and locked-rotor
Technical Features: PWM speed control; Tacho output (Speed signal)
Insulation Class: Class A
Electrical Hookup: 4 Lead wires (Red: +12V; Black: GND; Yellow: Tacho; Blue: PWM)
Number of Blades: Multi-blade forward curved
Direction of Rotation: Clockwise, viewed toward rotor
Airflow Direction: Intake from top/bottom, exhaust from side port
Impeller Material: Glass-fiber reinforced plastic
Housing Material: Glass-fiber reinforced plastic
Installation Position: Any
Degree of Protection: IP20
Operating Temperature: -10 – +70 °C
Service Life (L10 @ 40 °C): 50000 h
Standard Compliance: CE, UL, TUV
Application
The AVC BASA0715B2M-P005 blower fan is primarily utilized in high-performance laptop cooling, portable medical diagnostic equipment, slim-profile industrial controllers, and compact projection systems.
