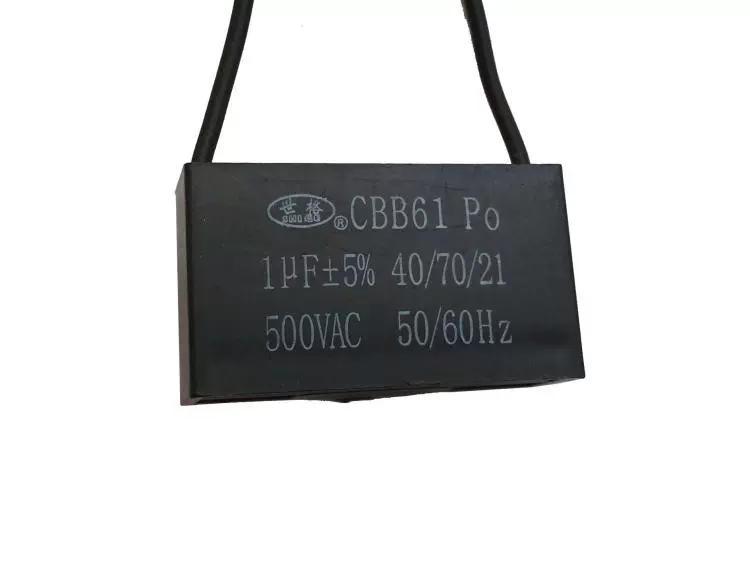

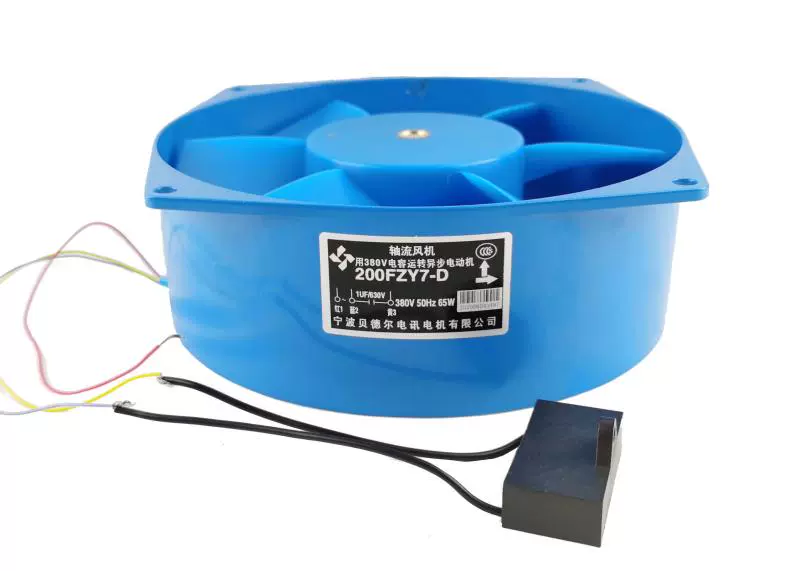

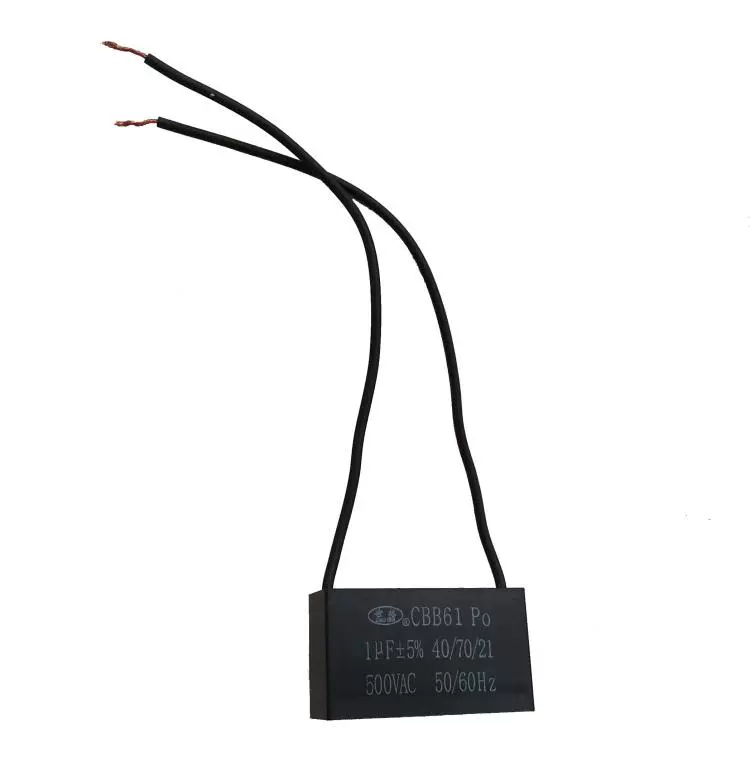

Bedel 200FZY7-D 380V Welding machine with 1UF capacitor fan

Description

Model Number: 200FZY7-D
Manufacturer: Bedel
Fan Type: AC Axial Flow Fan
Dimensions (L x H x W): 210 mm x 210 mm x 70 mm
Rated Voltage: 380 VAC
Frequency: 50 Hz
Phase: 1-phase
Rated Current: 0.18 A
Input Power: 65 W
Wiring: 3-wire
Rotational Speed (RPM): 2600 RPM
Max Airflow: 13 m³/min
Noise Level: 68 dB(A)
Bearing Type: Ball Bearing
Frame Material: Aluminum alloy
Impeller (Blade) Material: Plastic
Protection Rating (IP Code): IP54
Dielectric Strength: 1500 Vac 50Hz for 1 minute
Leakage Current: 0.5 mA
Operating Temperature Range: -10°C to +50°C

Bedel 200FZY7-D 380V Welding machine with 1UF capacitor fan

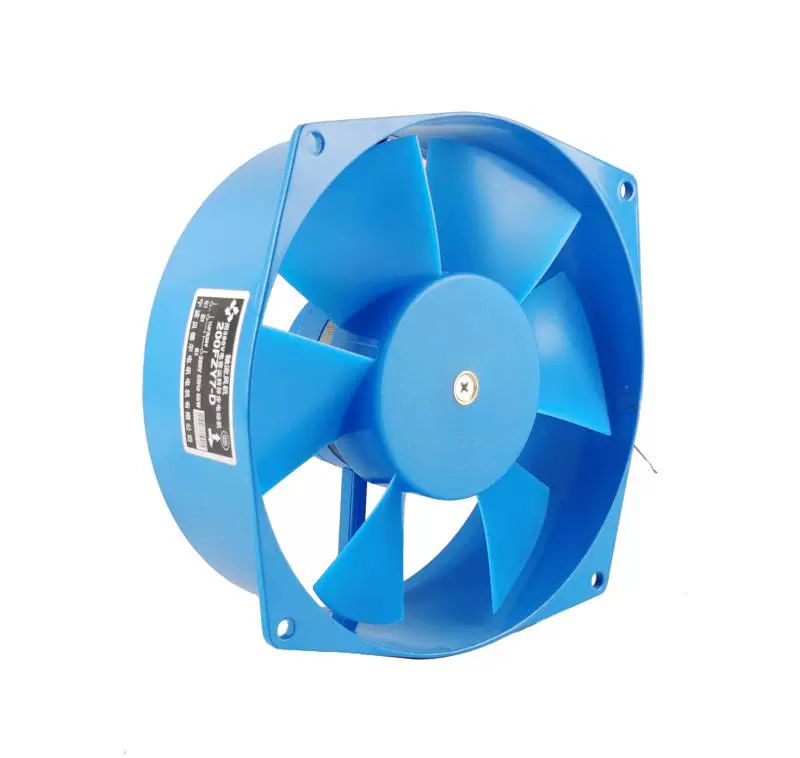

The 200FZY7-D is a robust 210x210x70mm AC axial flow fan, commonly used as an industrial cooling and ventilation solution in applications like welding machines, electrical cabinets, and various industrial machinery. Operating on 380V AC single-phase at 50Hz, it consumes 65W of power, delivering 13 m³/min of airflow at 2600 RPM, with a noise level of 68 dB(A). This fan features durable ball bearings, an aluminum alloy frame, and an IP54 protection rating, ensuring reliable performance in demanding industrial environments.
