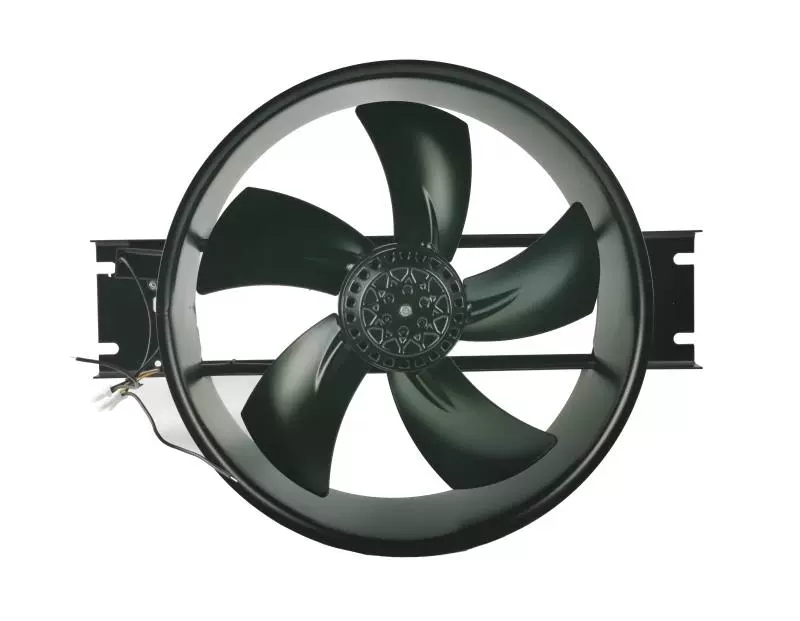

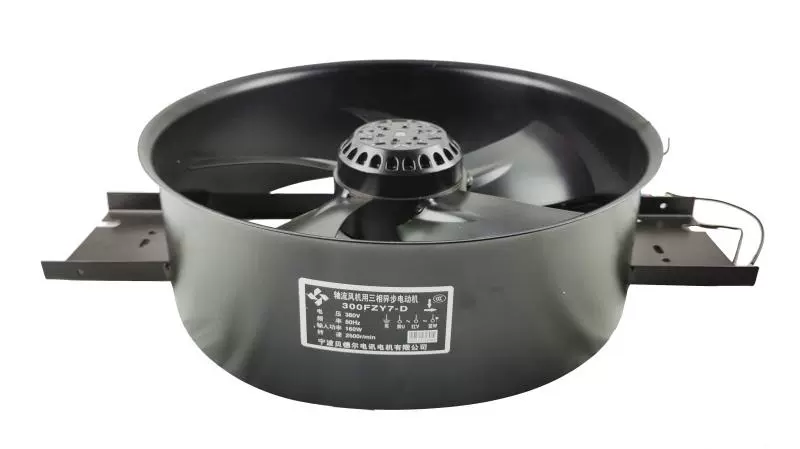

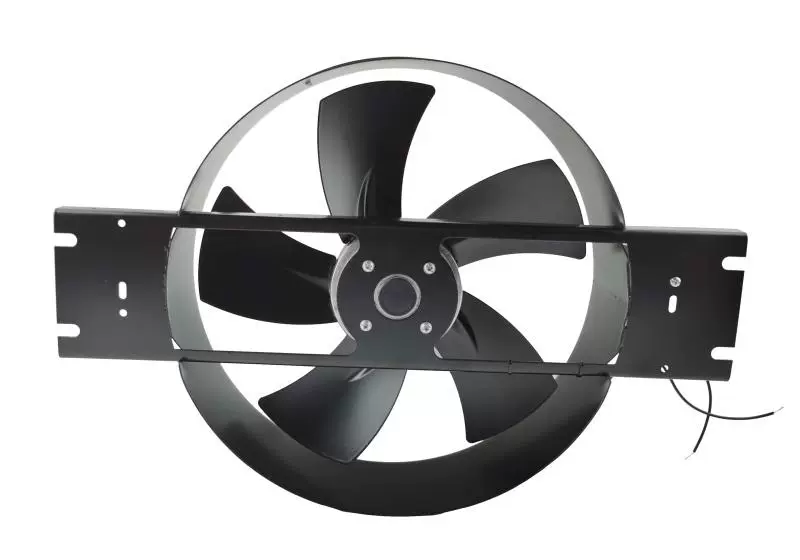

Bedel 300FZY7-D 380V 160W industrial fan

Description

Original Bedel 300FZY7-D 380V 160W industrial fan, heat dissipation fan, axial flow fan
Model Number: 300FZY7-D
Fan Type: AC Axial Flow Fan
Dimensions L x H x W: 462 mm x 327 mm x 101 mm.
Rated Voltage: 380 VAC
Frequency: 50 Hz
Phase: Three-phase
Rated Current: 0.35 A or 0.60 A
Input Power: 160 W
Wiring: 3-Pin Power Connector or Lead connection
Bearing Type: Ball Bearing
Rotational Speed RPM: 2100 RPM – 2600 RPM
Maximum Airflow: 34 m³/min or 2280 m³/h
Noise Level: 72 dB – 76 dB
Frame Material: ADC12 aluminum alloy die-cast
Impeller Blade Material: Metal armor plate die-casting, or high strength tough fan black plastic one-time molding.
Protection Grade: IP54
Insulation System: Design according to IEC61858 Grade F
Protection: Motor Internal with automatic recovery thermal protector
Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
Operating Temperature/Humidity Range: -40°C ~ +75°C / 0% ~ 95% RH

The 300FZY7-D is a powerful AC axial flow fan designed for robust industrial cooling applications. Operating on 380 VAC three-phase power at 50Hz, it typically consumes 160W with a 0.35A current draw. This fan features durable ball bearings and a robust aluminum alloy die-cast frame with either metal or high-strength plastic impeller blades. It delivers a significant airflow of 34 m³/min at speeds ranging from 2100 RPM to 2600 RPM, with a noise level between 72 dB and 76 dB. Its IP54 protection grade and internal thermal protection ensure reliable operation in demanding industrial environments, making it suitable for large electrical cabinets, inverters, welding machines, and other machinery requiring substantial heat dissipation.
