Description

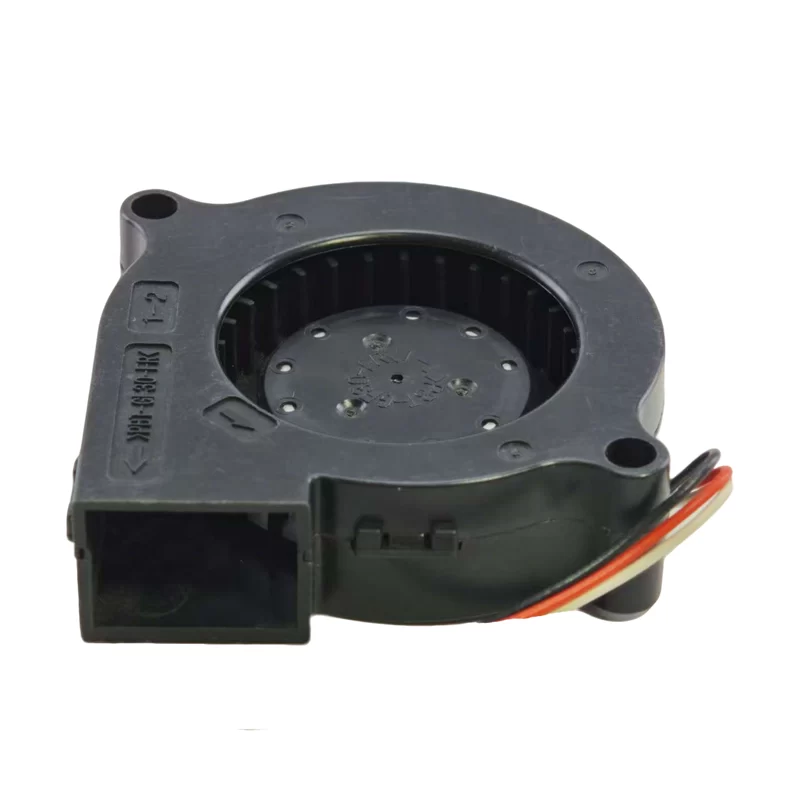

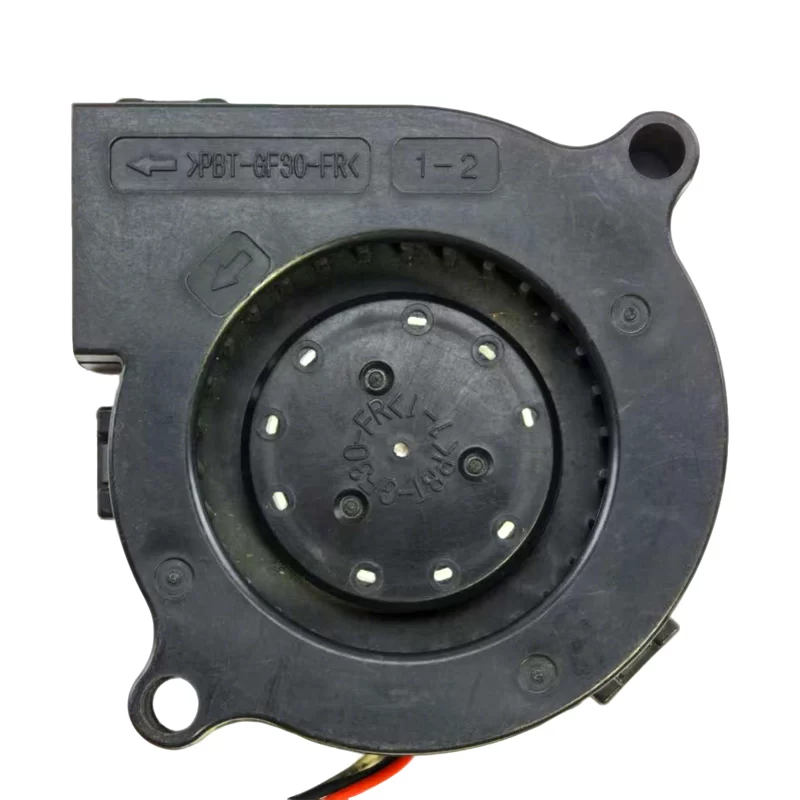

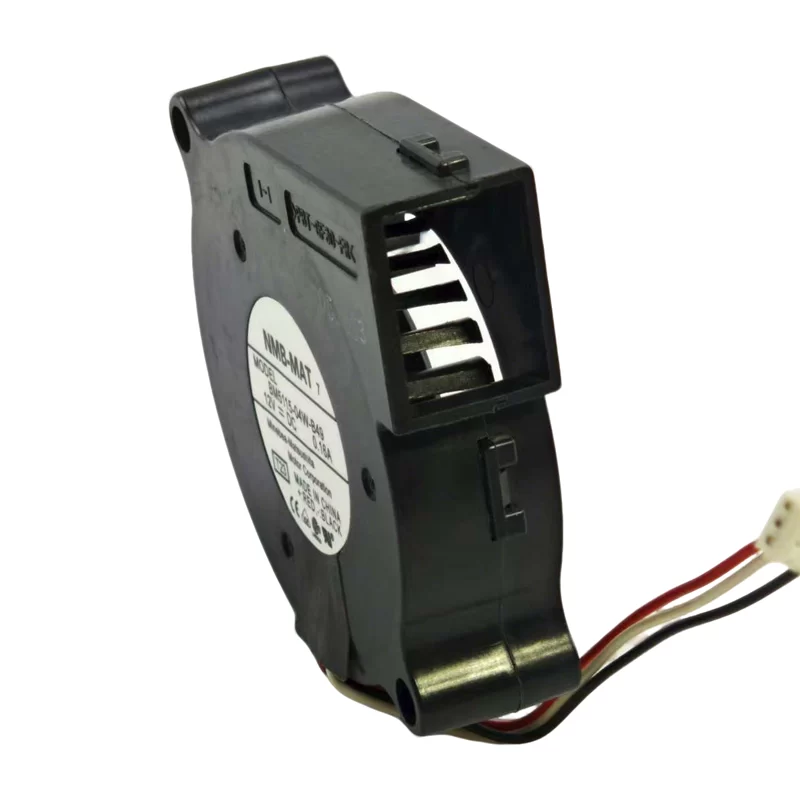

The NMB BM5115-04W-B49-T23 is a compact 12VDC blower fan with dimensions of 50x50x15mm. It is engineered to generate high static pressure, reaching 0.48inchH₂O (119.6Pa), while delivering 2.8CFM (4.76m³/h) of airflow at a speed of 4500RPM. This performance profile is typical for blowers used in restricted spaces or those needing to overcome high system impedance. The fan draws 0.16A of current, consuming 1.44W of power, and operates with a noise level of 35dB(A). It incorporates ball bearings for enhanced durability and is constructed with plastic housing and impeller. The fan is terminated with 3 wire leads, offering a speed sensor (Tachometer/FG) output for system monitoring, and has locked rotor protection. It operates effectively within an operating temperature range of -10 °C to 70 °C and has a rated lifetime of 60,000 hours at 60 °C. It is commonly used for cooling components in laptops, compact servers, and other electronic devices where space is severely limited and strong directional cooling is required.
BM5115-04W-B49-T23 Fan Parameters
Manufacturer: NMB Technologies Corporation
Model: BM5115-04W-B49-T23
Fan Type: DC Blower Fan
Dimensions: 50 x 50 x 15 mm
Rated Voltage: 12 VDC
Current Rating: 0.16 A
Power Consumption: 1.44 W
Airflow: 2.8 CFM (4.76 m³/h)
Static Pressure: 0.48 inch H₂O (119.6 Pa)
Speed: 4500 RPM
Noise Level: 35 dB(A)
Bearing Type: Ball Bearing
Termination: 3 Wire Leads
Features: Speed Sensor (Tachometer/FG), Locked Rotor Protection
Housing Material: Plastic
Impeller Material: Plastic
Operating Temperature: -10 °C ~ 70 °C
Lifetime @ Temp: 60,000 Hours @ 60 °C
Weight: 25 g
Application: This NMB DC blower fan is suitable for cooling components in laptops, compact servers, and other electronic devices.
