Description

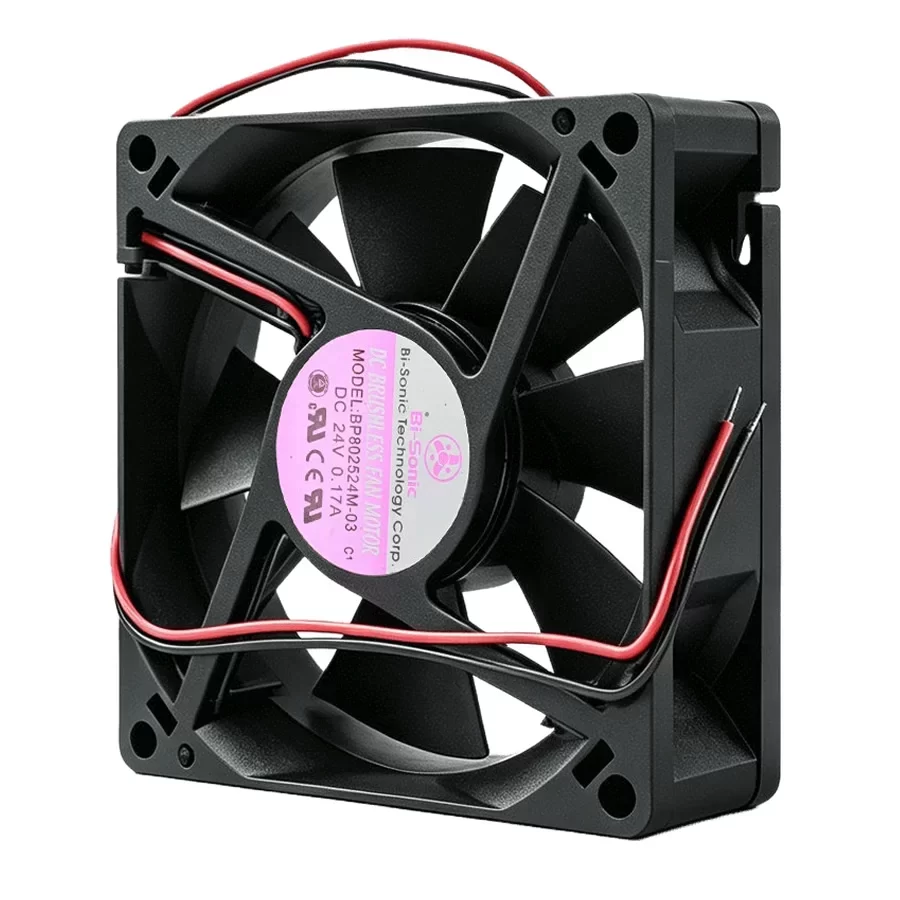

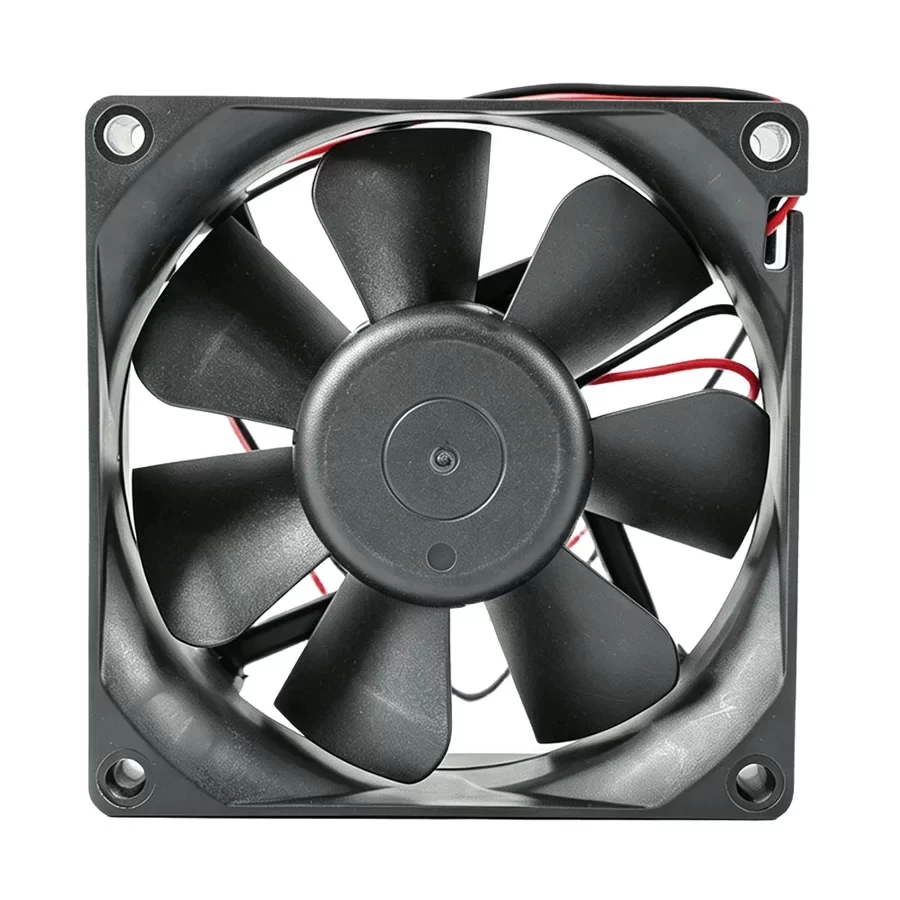

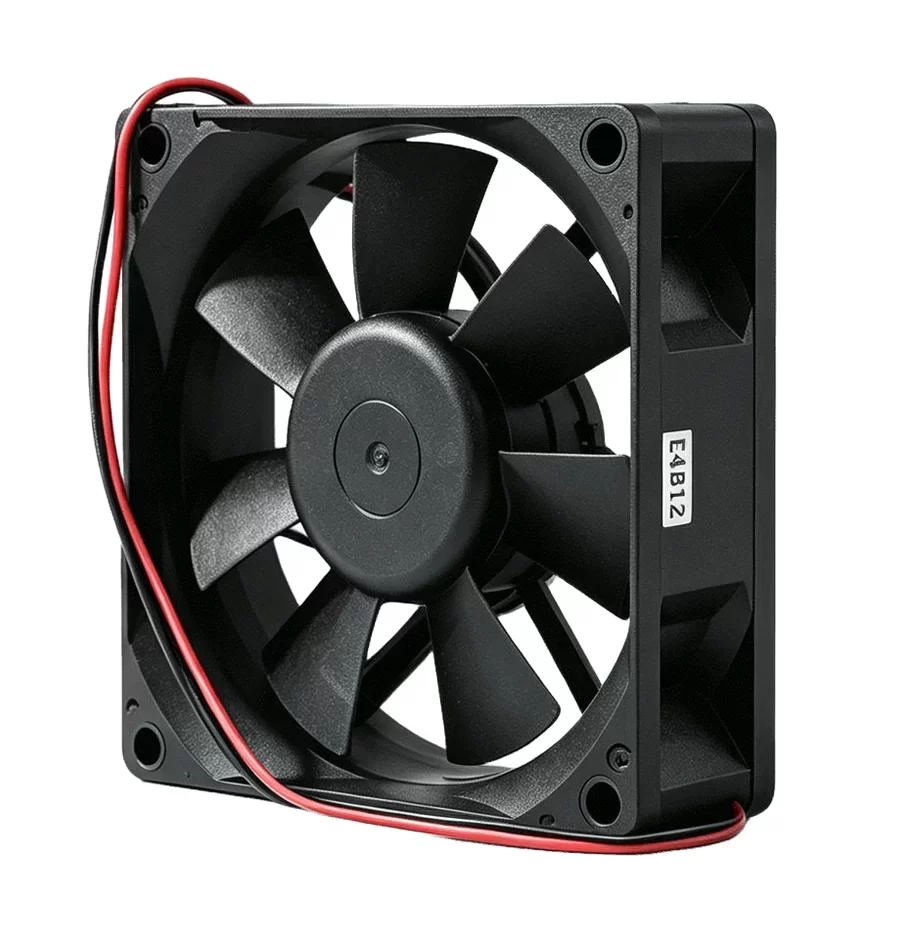

The Bi-Sonic BP802524M-03 is a high-performance 24 VDC DC Axial Fan with dimensions of 80 x 80 x 25 mm, engineered to deliver reliable active cooling and efficient thermal management for industrial electronics and power distribution systems. Constructed with a durable PBT plastic housing (UL94V-0), a PBT plastic impeller, and precision dual ball bearings, it has a net weight of 85 g. Driven by an advanced brushless DC motor operating at a nominal voltage of 24 VDC, it draws a rated current of 0.17 A with a power consumption of 4.08 W. Operating at a nominal speed of 2700 RPM (±10%), it provides a Max. Air Flow of 34.00 CFM (57.77 m³/h / 0.96 m³/min) with a noise level of 32.0 dBA. Designed with wire lead connections, it includes reverse polarity protection, locked rotor protection, and complies with CE, cULus, and RoHS agency approvals.
BP802524M-03 Fan Parameters
Manufacturer: Bi-Sonic (Bi-Sonic Technology Corp.)
Model Number: BP802524M-03
Type: DC Axial Fan
Country of Origin: Taiwan
Nominal Voltage: 24 VDC
Rated Current: 0.17 A
Power Consumption: 4.08 W
Motor Type: Brushless DC Motor
Electrical Connection: Wire Leads
Motor Protection: Reverse Polarity Protection, Locked Rotor Protection
Speed: 2700 RPM (±10%)
Max. Air Flow: 34.00 CFM (57.77 m³/h / 0.96 m³/min)
Noise Level: 32.0 dBA
Dimensions: 80 x 80 x 25 mm
Weight: 85 g
Housing Material: Plastic (PBT UL94V-0)
Impeller Material: Plastic (PBT UL94V-0)
Bearing Type: Dual Ball Bearing
Operating Temperature: -10 to +70 °C
Agency Approvals: CE, cULus, RoHS
Application
The Bi-Sonic BP802524M-03 is deployed in industrial control cabinets, telecommunications power equipment, frequency inverters, medical instruments, network switches, and compact electronic enclosures requiring quiet and reliable continuous active cooling.
