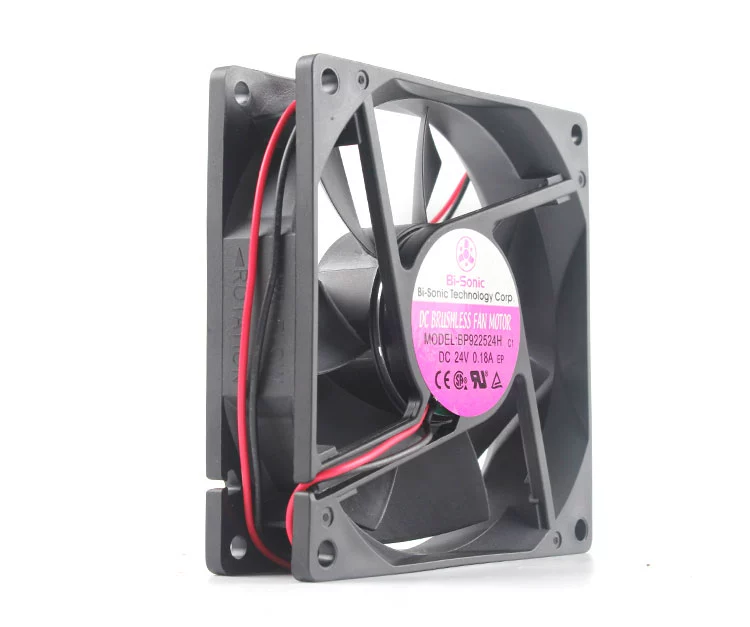

BP922524H Bi-Sonic 9225 24V 0.18A 4.32W inverter fan

Description

The Bi-Sonic BP922524H is a high-performance DC Axial Fan with dimensions measuring 92 x 92 x 25 mm. This fan operates on a 24 V DC power supply and is a high-speed model with a ball bearing system. It typically draws 0.18 A of current, resulting in an input power of 4.32 W. The fan operates at a speed of approximately 3000 RPM, delivering a strong airflow of 100 m³/h (58.7 CFM). This balance of high flow and manageable noise makes it suitable for cooling in communication racks and electronic cabinets.

BP922524H Fan Parameters
Model: BP922524H
Manufacturer: Bi-Sonic
Type: DC Axial Fan
Dimensions: 92 x 92 x 25 mm
Rated Voltage: 24 VDC
Operating Voltage Range: 20.4 ~ 27.6 VDC
Rated Current: 0.18 A
Power Input: 4.32 W
Speed: 3000 RPM
Airflow: 100 m³/h (58.7 CFM)
Static Pressure: 49.8 Pa / 0.20 inAq
Noise Level: 38 dB(A)
Motor Bearing: Ball Bearing
Frame/Impeller Material: Glass fiber reinforced plastic PBT, UL 94V-0 rating
Motor Weight: 120 g
Life Expectancy: 50000 hours (continuous operation)
Min. Operating Temp.: -30 °C
Max. Operating Temp.: 75 °C
Termination: 2 Wire Leads

Application
The BP922524H is a high-reliability DC cooling fan ideal for industrial and commercial applications such as cooling inverters, electronic equipment cabinets, small server racks, and network communications gear, where the combination of its 92mm size and high-speed performance is required for efficient heat removal.
