Description

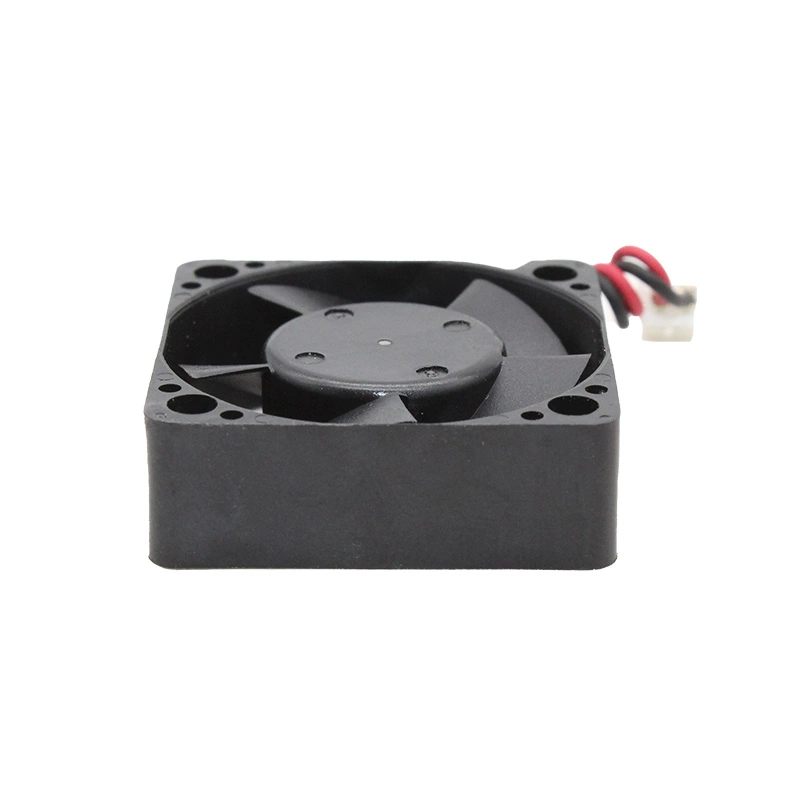

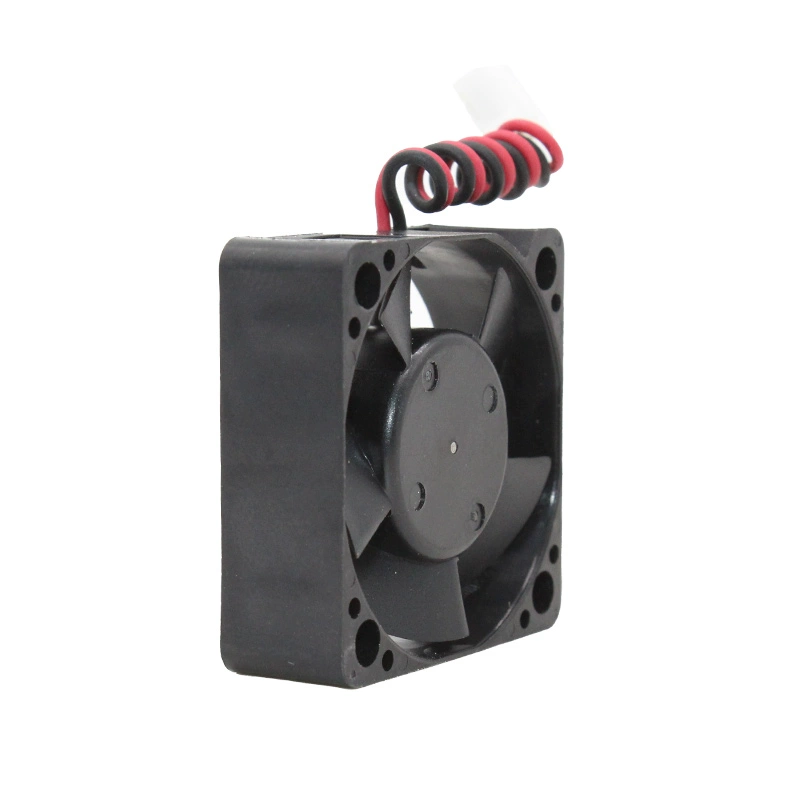

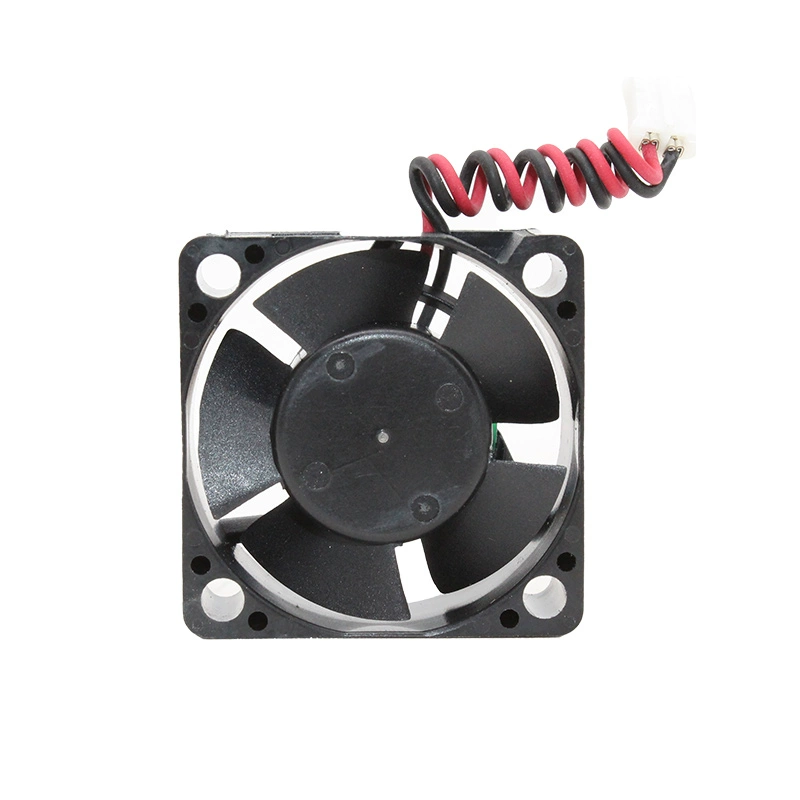

The Sanyo Denki D03X-05TL is a compact 5V DC axial cooling fan from Sanyo Denki, measuring 30mm x 30mm x 10mm. Operating at a rated current of 0.08A (0.4W), this fan is engineered for efficient and quiet cooling in small electronic devices and enclosures. It achieves a rotational speed of 7200 RPM, delivering 2.5 CFM of airflow and a static pressure of 0.085 inch-H2O, while maintaining a low noise level of 21.0 dBA. Equipped with a sleeve bearing, it offers reliable operation with a typical lifespan of 30,000 to 50,000 hours. The fan utilizes 2-wire leads for connection and includes features such as auto-restart and polarity protection, making it a dependable choice for various miniature cooling applications.
Model Number: D03X-05TL
Manufacturer: Sanyo Denki
Type: DC Axial Cooling Fan
Dimensions: 30mm x 30mm x 10mm
Rated Voltage: 5V DC
Rated Current: 0.08A
Rated Power: 0.4W
Speed: 7200 RPM
Airflow: 2.5 CFM / 0.071 m³/min
Static Pressure: 0.085 inch-H2O / 21 Pa
Noise Level: 21.0 dBA
Connector: 2-Wire Leads
Bearing Type: Sleeve Bearing
Life Expectancy: 30,000 to 50,000 hours
Operating Temperature: -10°C to 60°C
Frame Material: Plastic
Impeller Material: Plastic
Features: Auto Restart, Polarity Protection
