Description

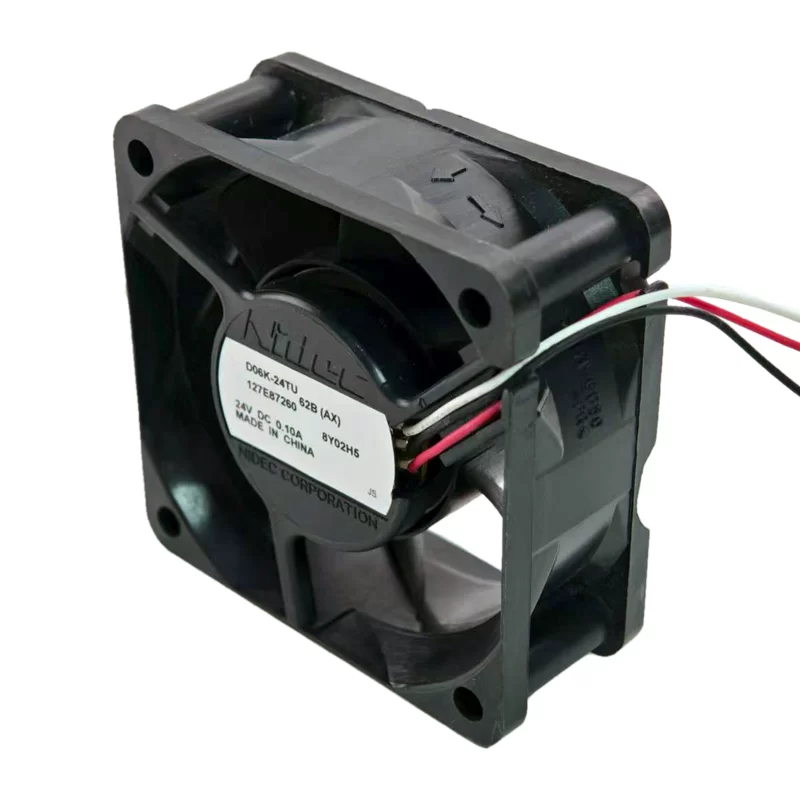

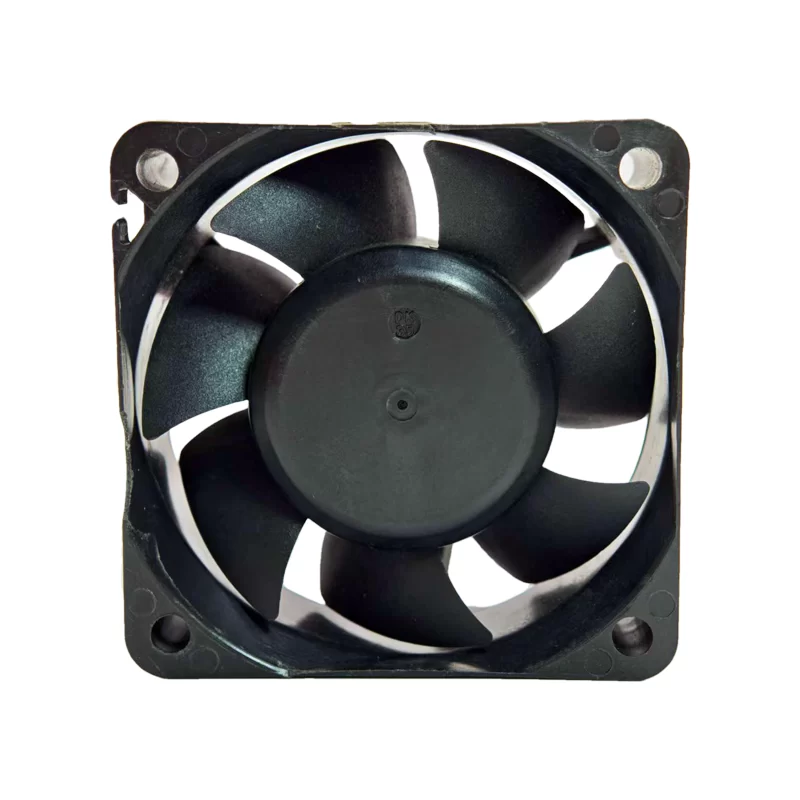

The Nidec D06K-24TU is a DC Axial Fan with dimensions of 60x60x25mm. It operates on 24VDC, drawing 0.1A of current with a power consumption of 2.4W. This fan delivers an airflow of 22.2CFM and generates a static pressure of 0.2 in H2O. It achieves a speed of 4400RPM with a noise level of 32dBA. It features 3 wire leads for termination. This fan is suitable for various cooling applications in compact electronic assemblies, small servers, and other systems requiring efficient and quiet airflow.
D06K-24TU Fan Parameters
Model: D06K-24TU
Manufacturer: Nidec
Type: DC Axial Fan
Dimensions: 60 x 60 x 25 mm
Nominal Voltage: 24 V DC
Current Draw: 0.1 A
Power Consumption: 2.4 W
Airflow: 22.2 CFM
Static Pressure: 0.2 in H2O
Speed: 4400 RPM
Noise: 32 dBA
Termination: 3 Wire Leads
Number of Blades: 7
Frame and Impeller Material: Plastic
Application: Compact electronic assemblies, small servers, general cooling.
