Description

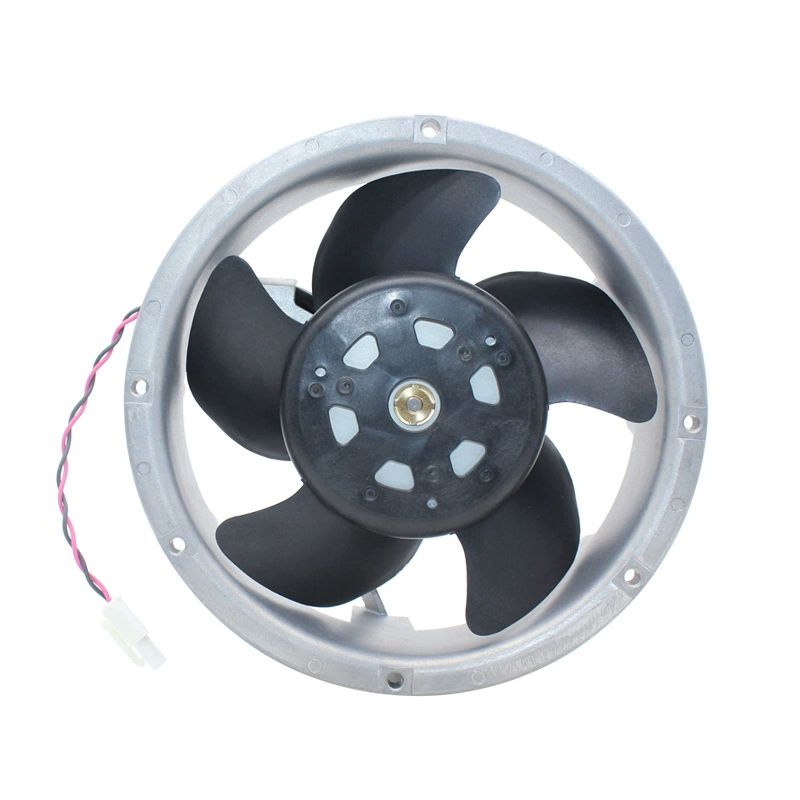

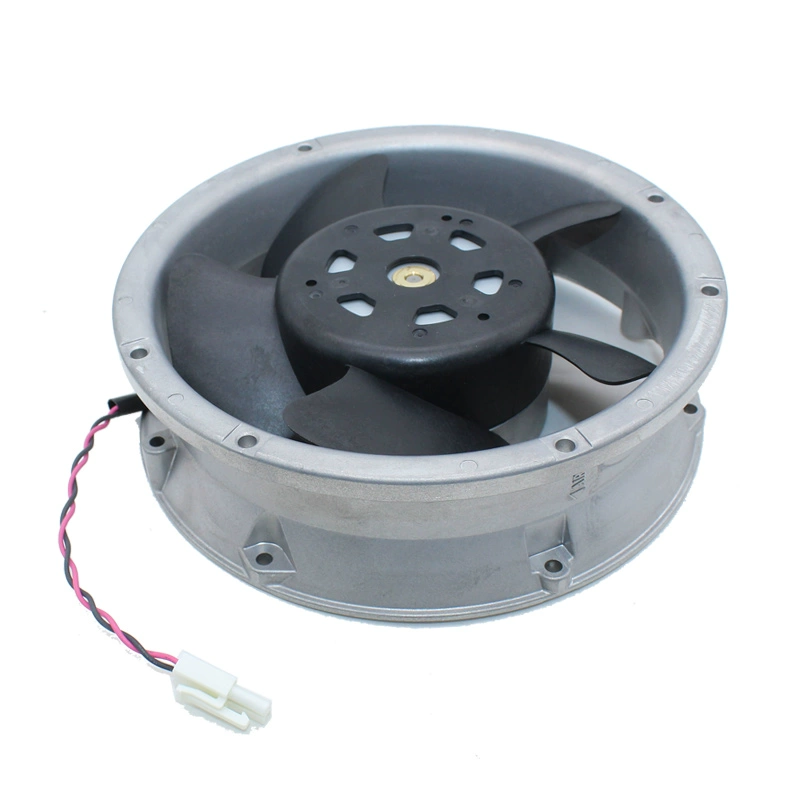

The Sunon D1751S24B3AZ-22 is a powerful DC Axial Cooling Fan manufactured by Sunon, frequently used in demanding applications such as industrial equipment and frequency converters. Operating on 24V DC power, it draws 0.60A of current, resulting in a 14.4W power consumption. Measuring 172mm x 172mm x 51mm, this fan spins at 3200 RPM, delivering 190 CFM of airflow and a static pressure of 0.55 inH2O. It operates at a noise level of 52 dBA. Equipped with 2-wire leads and utilizing double ball bearings, the D1751S24B3AZ-22 is built with a durable die-cast aluminum frame and a thermoplastic impeller, ensuring reliable and long-lasting operation in challenging environments.
D1751S24B3AZ-22 Nidec24V 0.6A 17.5cm 17251 inverter aluminum frame cooling fan
Manufacturer: Sunon
Model Number: D1751S24B3AZ-22
Type: DC Axial Cooling Fan
Rated Voltage: 24V DC
Rated Current: 0.60A
Rated Power: 14.4W
Speed: 3200 RPM
Airflow: 190 CFM
Static Pressure: 0.55 inH2O 137 Pa
Noise Level: 52 dBA
Dimensions: 172mm x 172mm x 51mm
Connector: 2-Wire Leads
Bearing Type: Double Ball Bearing
Features: Reverse polarity protection, locked rotor protection, auto-restart
Frame Material: Die-cast aluminum
Impeller Material: Thermoplastic PBT UL 94V-0
