D2E097-BI56-48 ebmpapst 230V 87W inverter blower

Description

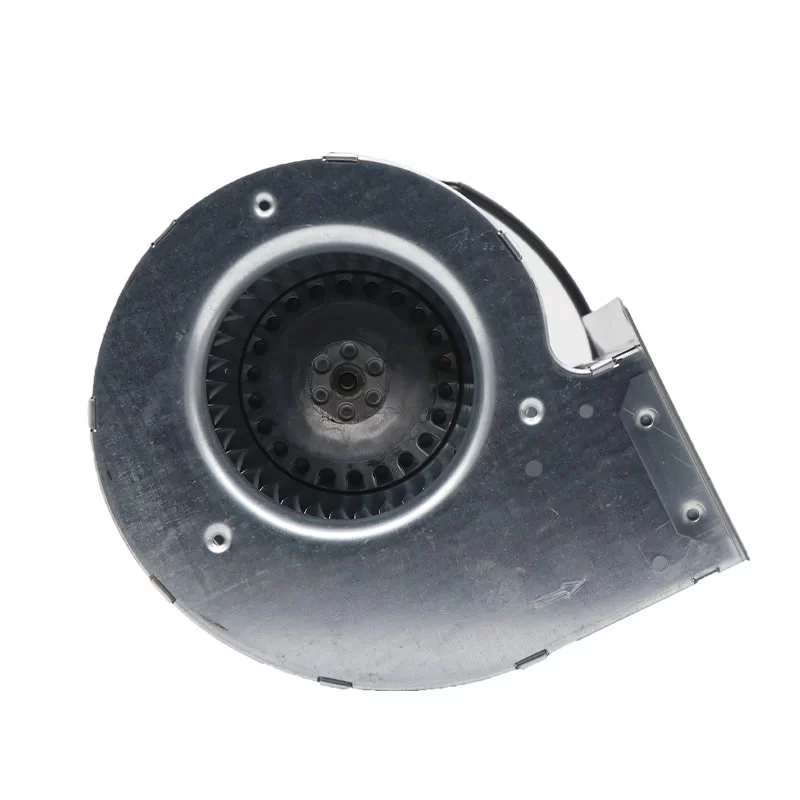

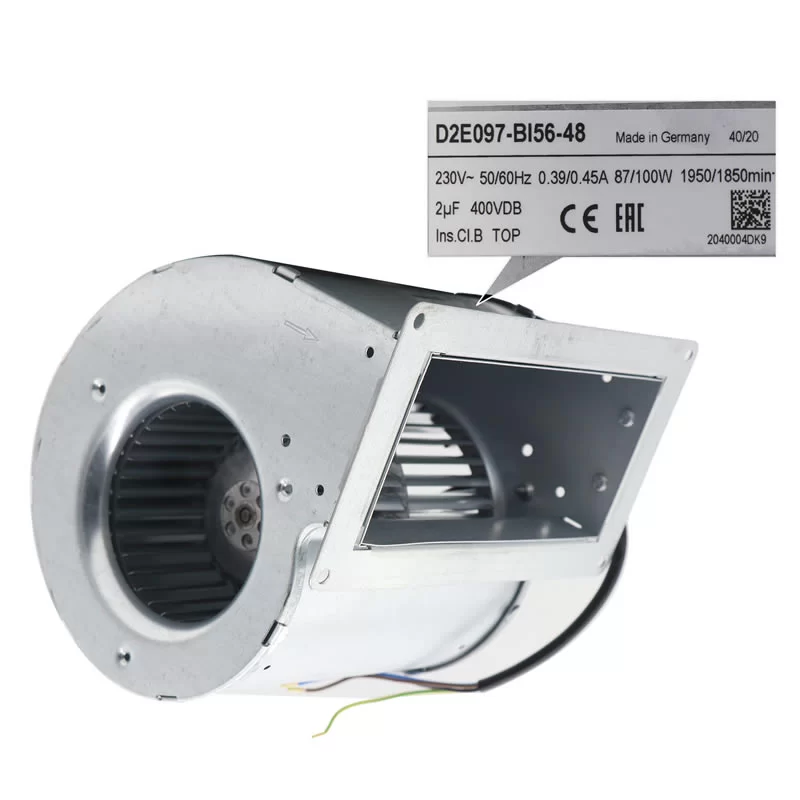

The ebmpapst D2E097-BI56-48 is a high-performance 1~ AC dual-inlet centrifugal blower powered by the M2E052-CA motor. Operating at a nominal voltage of 230 VAC, this unit is constructed with a hot-dip galvanized sheet steel housing and impeller, featuring a rotor surface partly cast in aluminum. At 50 Hz, it delivers a rated speed of 1950 RPM with a power consumption of 87 W, while at 60 Hz, it reaches 1850 RPM at 100 W. Designed for versatile installation in any position, the blower utilizes a robust ball bearing system and an internally connected thermal overload protector (TOP). With a lightweight 1.68 kg design and IP20 protection, the D2E097-BI56-48 provides a reliable, high-pressure thermal management solution for industrial ventilation, climate control units, and cleanroom technology.

D2E097-BI56-48 Fan Parameters
Manufacturer: ebmpapst
Model Number: D2E097-BI56-48
Motor Model: M2E052-CA
Type: AC Centrifugal Blower (Dual Inlet)
Phase: 1~
Nominal Voltage: 230 VAC
Frequency: 50 / 60 Hz
Dimensions: 180 x 162 x 165 mm
Impeller Size: 97 mm
Weight: 1.68 kg

[Electrical Data]
Speed: 1950 / 1850 RPM
Power Consumption: 87 / 100 W
Current Draw: 0.39 / 0.45 A
Capacitor: 2.0 µF
Capacitor Voltage: 400 VDB
Motor Bearing: Ball bearing
Termination: 4 Wire Leads
Insulation Class: B
Protection Class: I (with customer connection of protective earth)

[Performance & Acoustics]
Air Flow: 435 m³/h (256.0 CFM)
Min. Back Pressure: 0 Pa (0 inAq)
Sound Pressure Level: 58 dB(A)
Degree of Protection: IP20
Touch Current: < 0.75 mA (IEC 60990)

[Materials & Construction]
Housing Material: Sheet steel, hot-dip galvanized
Impeller Material: Sheet steel, hot-dip galvanized
Rotor Surface: Partly cast in aluminum
Motor Suspension: Motor mounted with brackets on one side
Direction of Rotation: Counterclockwise, viewed toward rotor
Installation Position: Any
Mode: S1 (Continuous operation)

[Reliability & Protection]
Min. Ambient Temperature: -25 °C
Max. Ambient Temperature: 40 °C (50Hz) / 35 °C (60Hz)
Max. Storage Temperature: +80 °C
Min. Storage Temperature: -40 °C
Motor Protection: Thermal overload protector (TOP) internally connected
Approval: CE, CCC, EAC, EN 60335-1

Application
The ebmpapst D2E097-BI56-48 centrifugal blower is an ideal thermal management solution for high-resistance environments such as industrial air curtains, HVAC fancoil units, and medical ventilation systems. Its dual-inlet configuration and hot-dip galvanized steel construction ensure structural durability and efficient air displacement in moisture-stable environments. The M2E052-CA motor’s ability to be mounted in any position allows for flexible integration into compact cabinet designs or ceiling-mounted units. Equipped with integrated thermal burnout protection and high-precision ball bearings, this 230V blower delivers 24/7 mission-critical performance for modern building automation and industrial process cooling infrastructures.
